Test I

NOTE: To identify wire colors referenced in testing procedures, see WIRE COLOR IDENTIFICATION  table under WIRING DIAGRAMS.

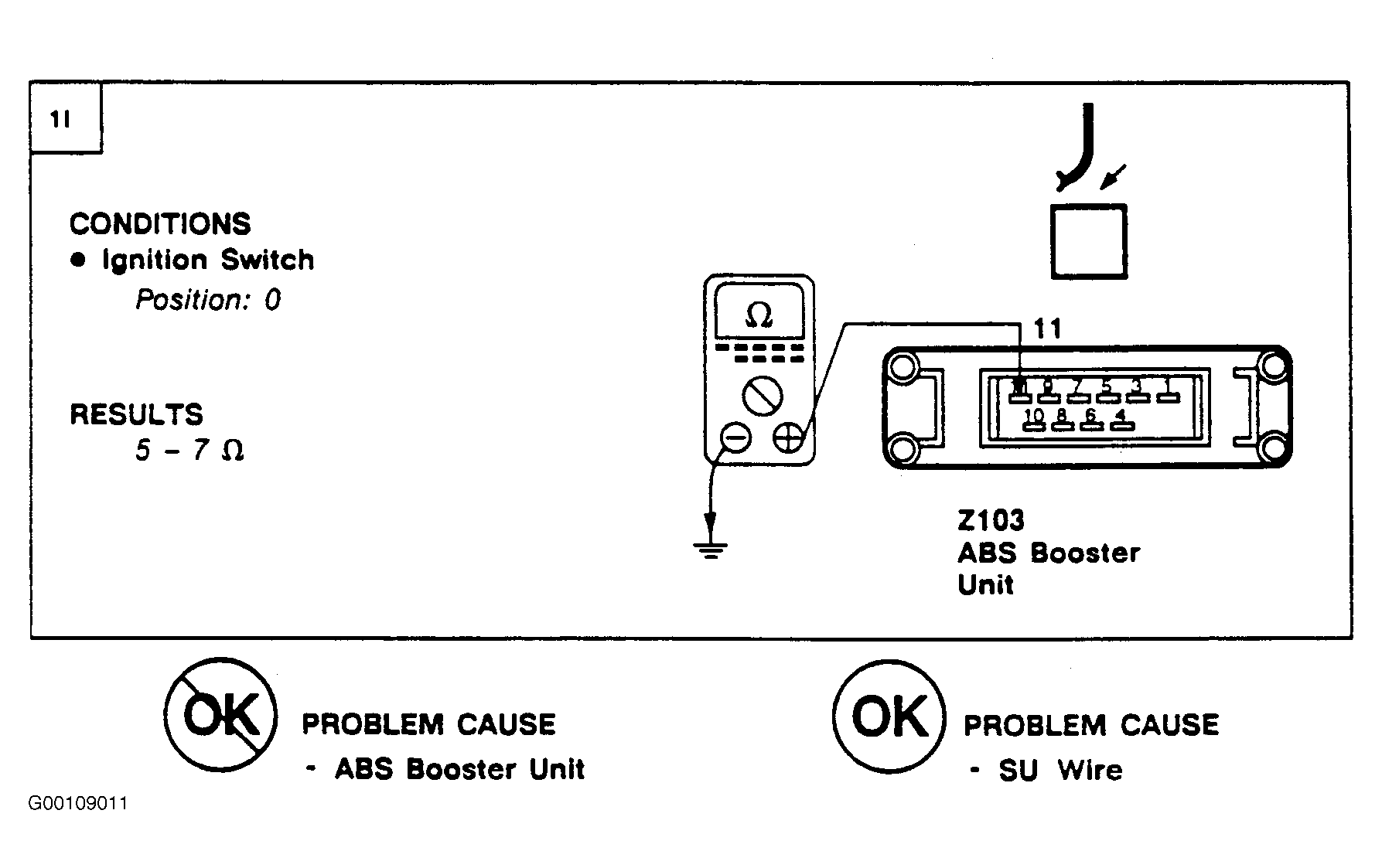

Fig 1: Test I
G00109011Courtesy of LAND ROVER NORTH AMERICA, INC.
