Test J

NOTE: To identify wire colors referenced in testing procedures, see WIRE COLOR IDENTIFICATION  table under WIRING DIAGRAMS.

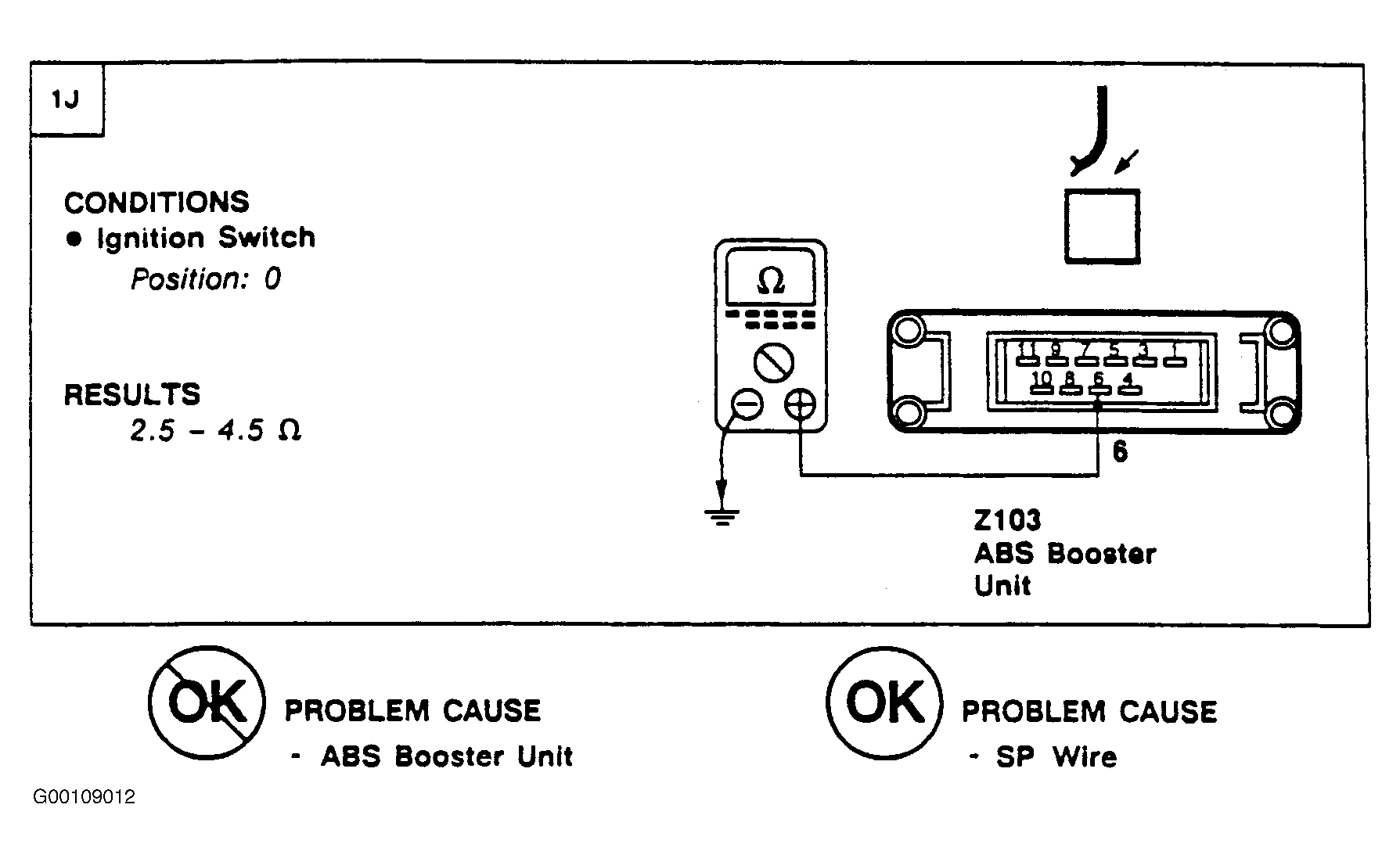

Fig 1: Test J
G00109012Courtesy of LAND ROVER NORTH AMERICA, INC.
