Home › Land Rover › 1992 › Range Rover Base › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock › System Tests › Test L

Test L

NOTE: To identify wire colors referenced in testing procedures, see WIRE COLOR IDENTIFICATION  table under WIRING DIAGRAMS.

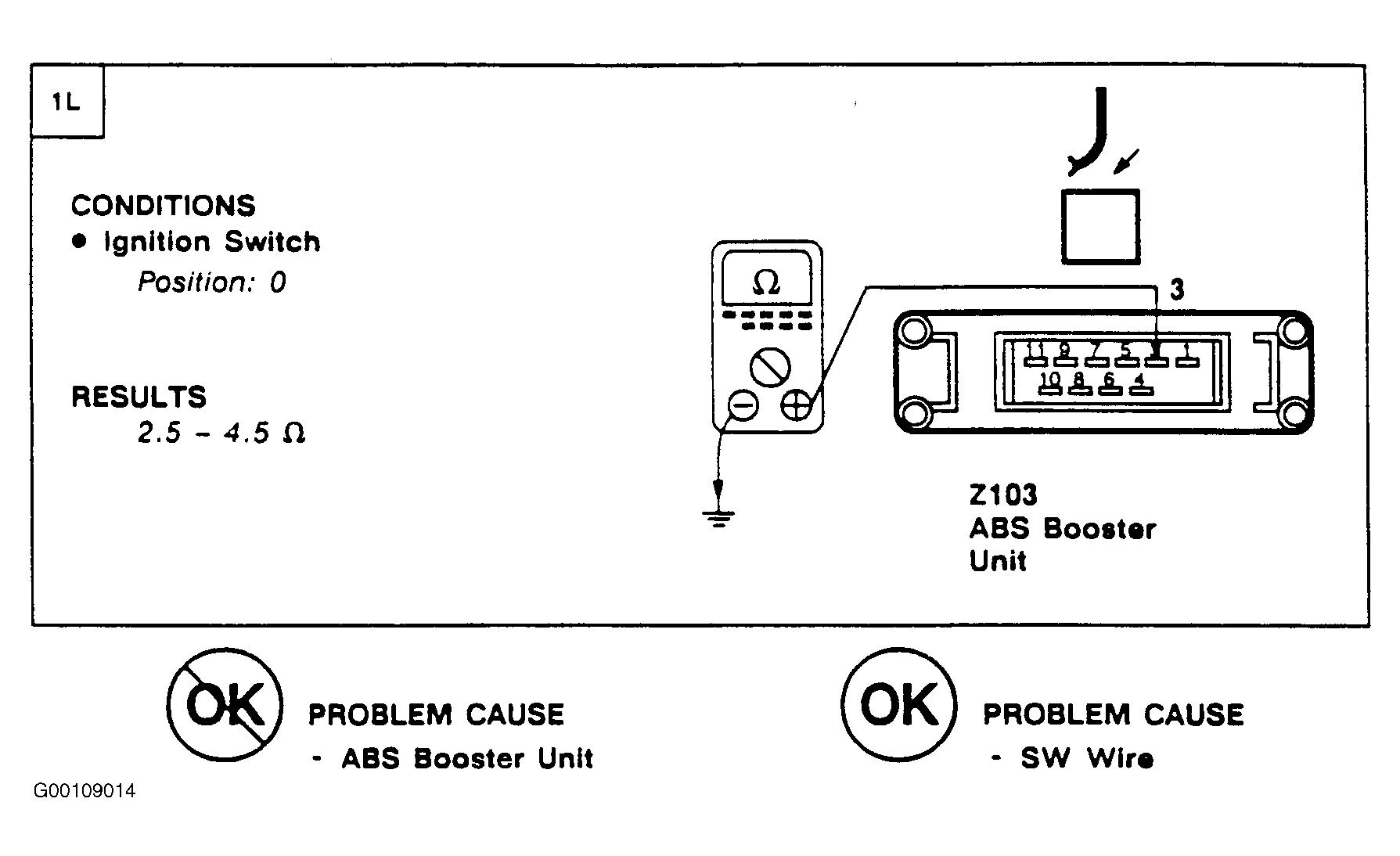

Fig 1: Test L
G00109014Courtesy of LAND ROVER NORTH AMERICA, INC.
