Code 48: Idle Speed Stepper Motor

Check base idle speed. See appropriate ON-VEHICLE ADJUSTMENTS article in ENGINE PERFORMANCE. If base idle speed is okay, test idle speed stepper motor. See Fig 1 and Fig 2 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.

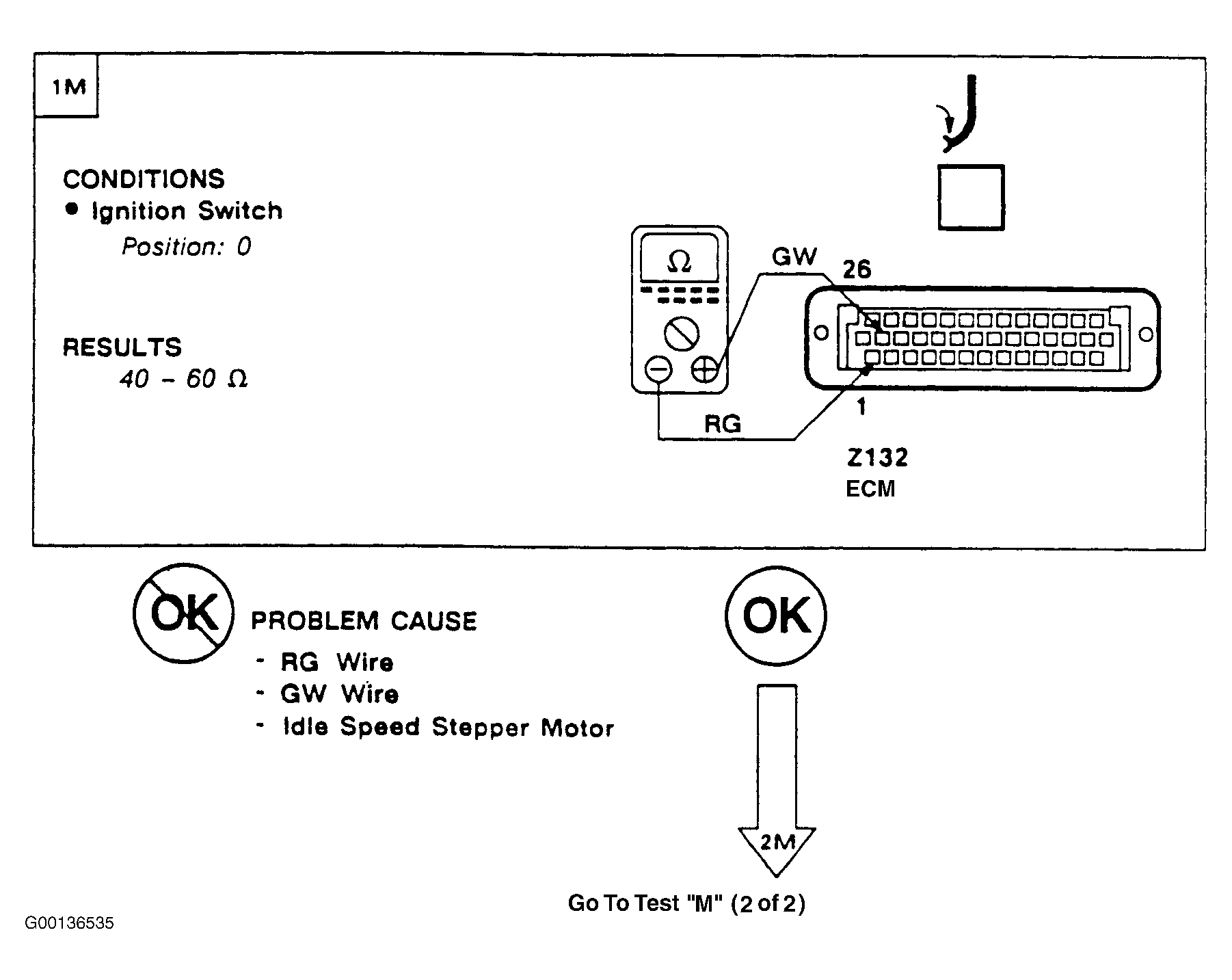

Fig 1: Test "M" (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

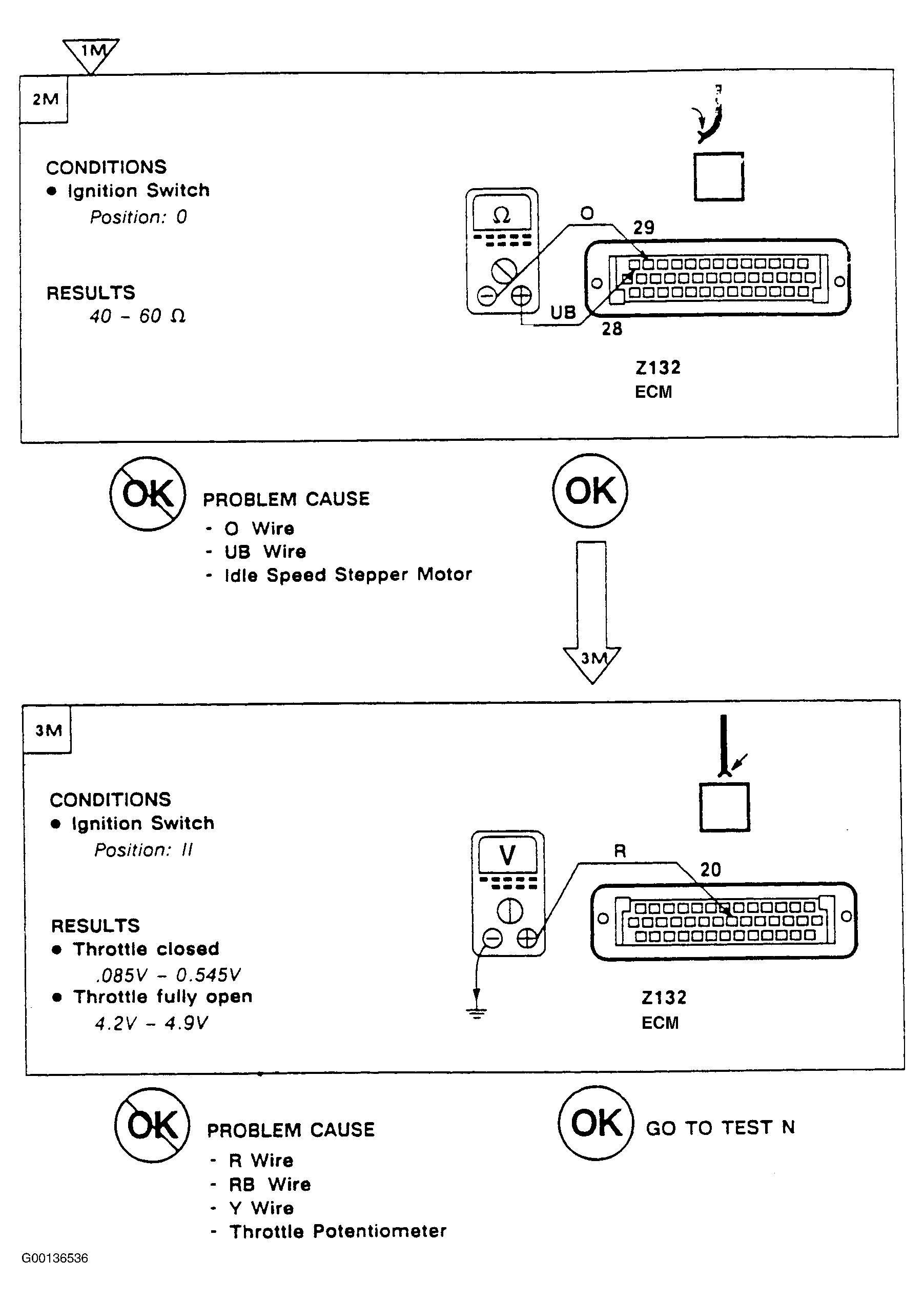

Fig 2: Test "M" (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
