EFI Warning Light Inoperative

If the engine starts but the EFI warning light does not light momentarily, check bulb and BY wire.

If engine cranks but does not start and the EFI warning light does not light with ignition switch ON, see Fig 1 -Fig 3 . If engine cranks but does not start and the EFI warning light does light with ignition switch ON, see Fig 4 -Fig 10 .

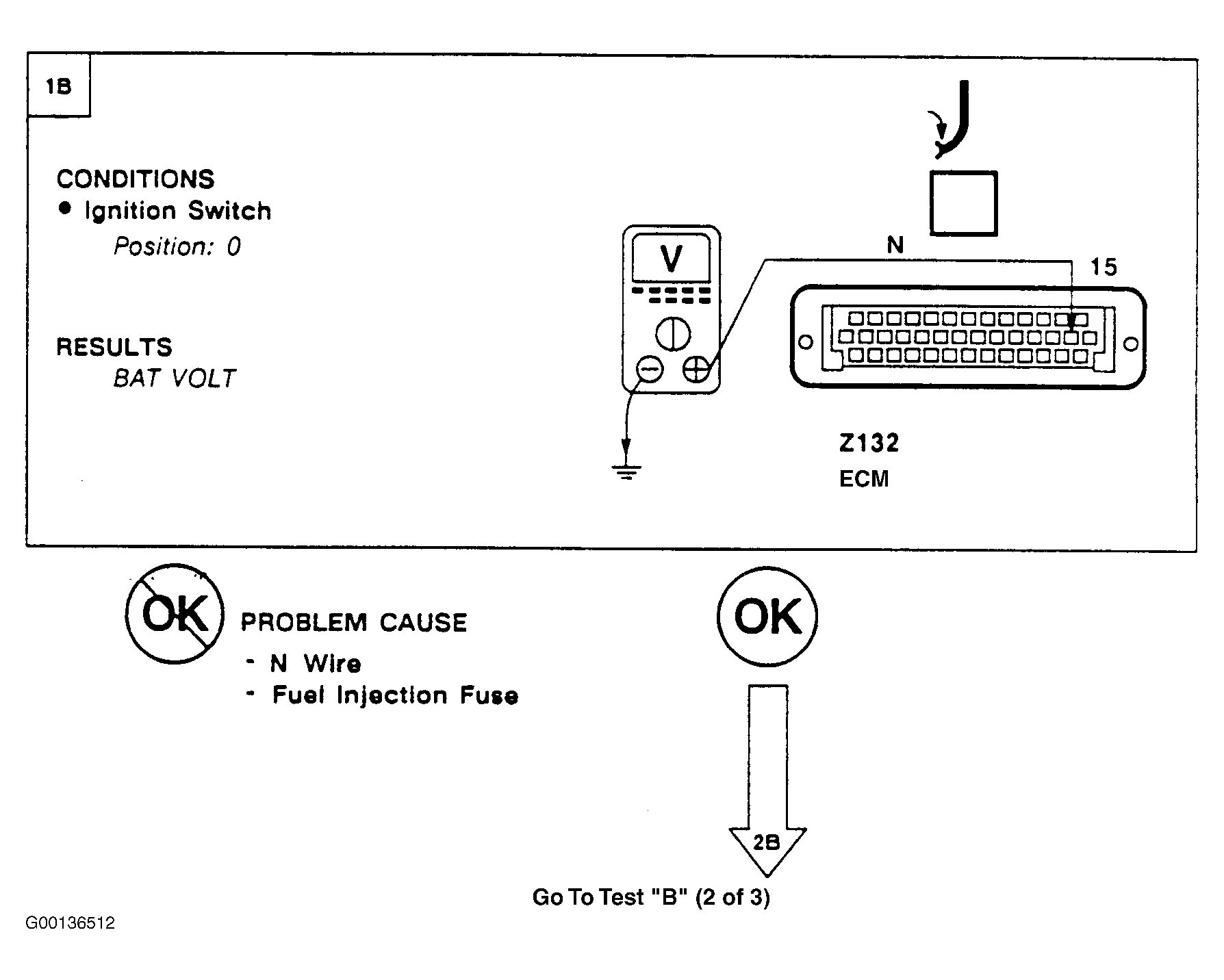

Fig 1: Test "B" (1 Of 3)

G00136512

Courtesy of LAND ROVER NORTH AMERICA, INC.

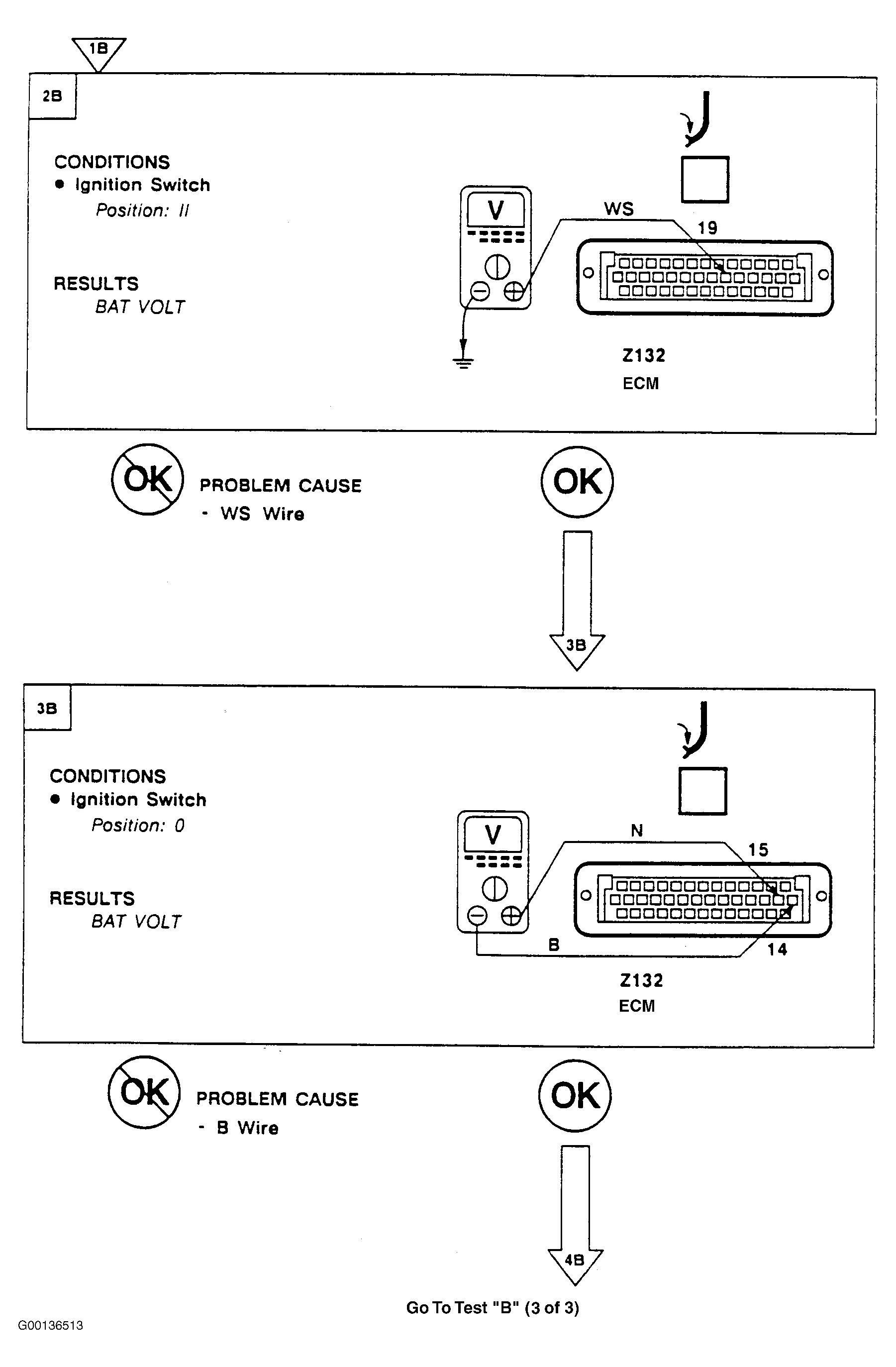

Fig 2: Test "B" (2 Of 3)

G00136513

Courtesy of LAND ROVER NORTH AMERICA, INC.

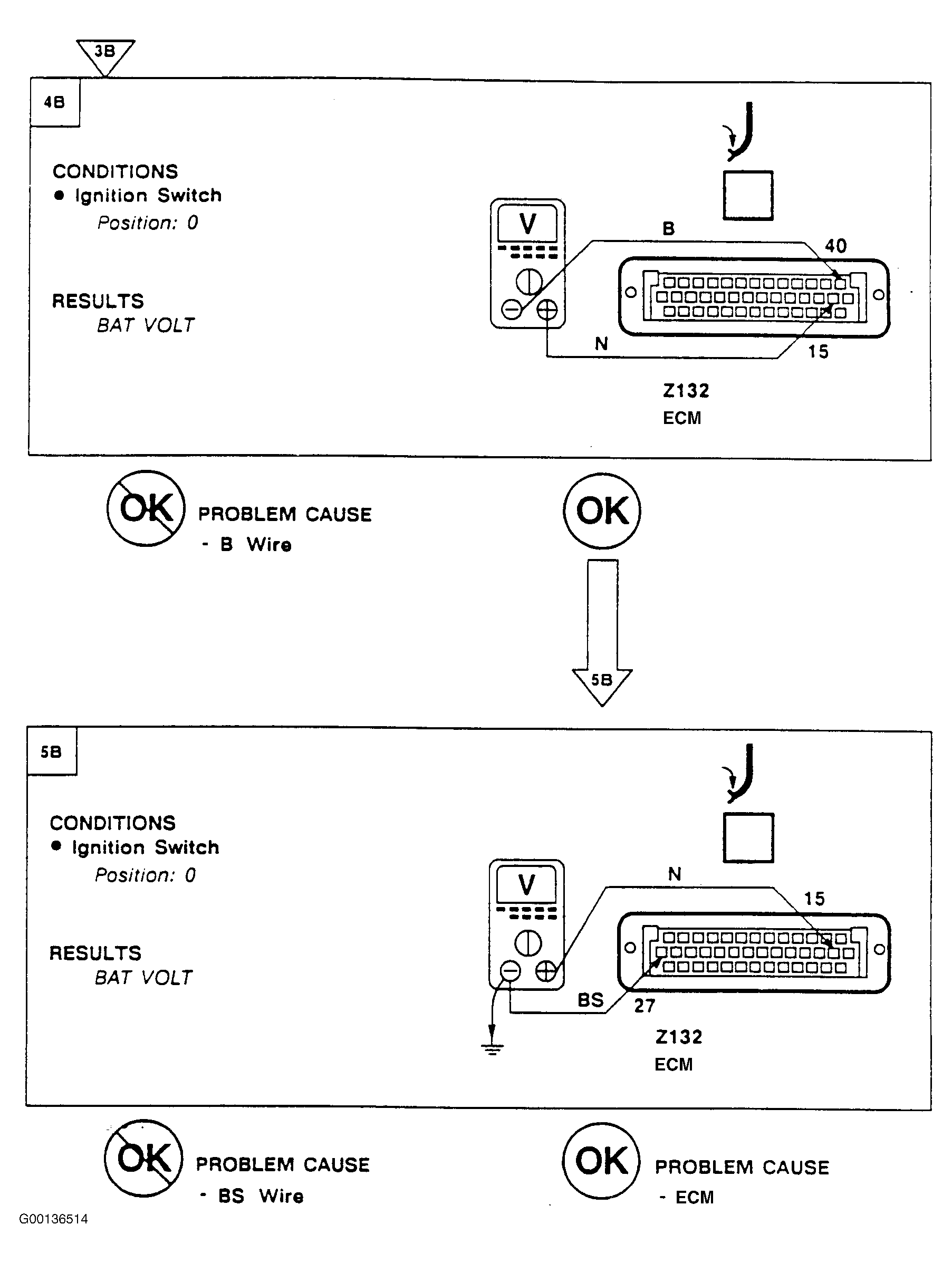

Fig 3: Test "B" (3 Of 3)

G00136514

Courtesy of LAND ROVER NORTH AMERICA, INC.

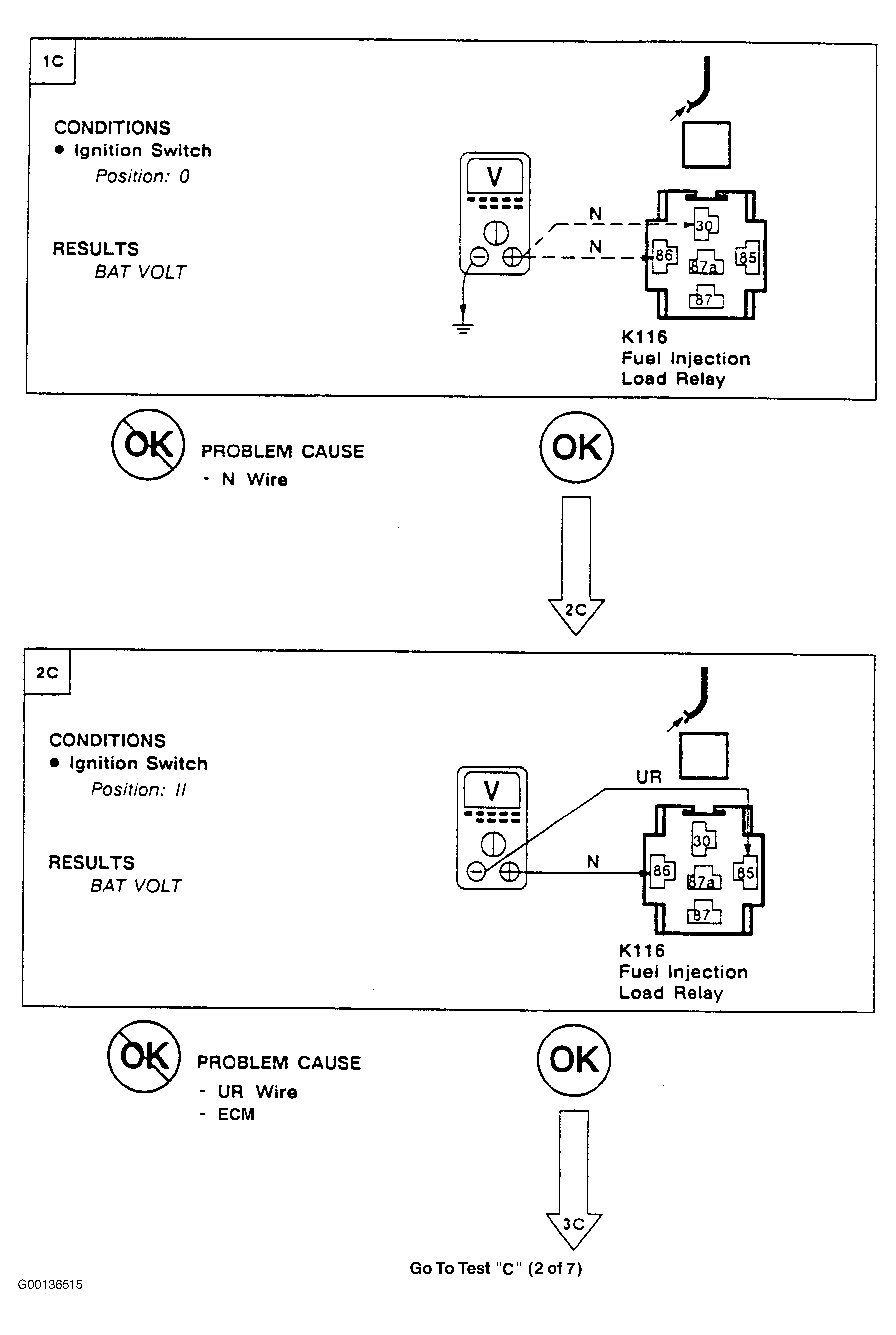

Fig 4: Test "C" (1 Of 7)

G00136515

Courtesy of LAND ROVER NORTH AMERICA, INC.

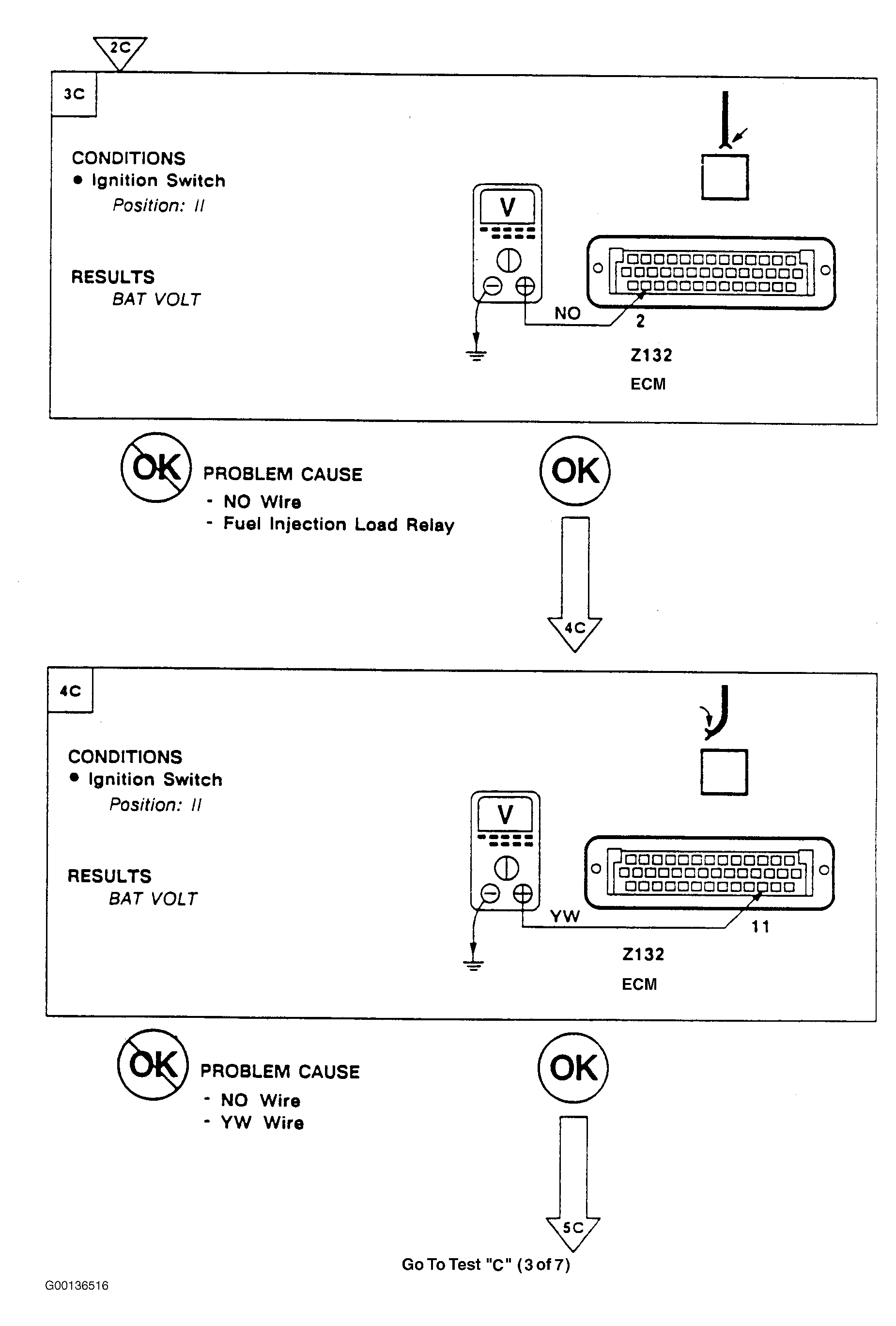

Fig 5: Test "C" (2 Of 7)

G00136516

Courtesy of LAND ROVER NORTH AMERICA, INC.

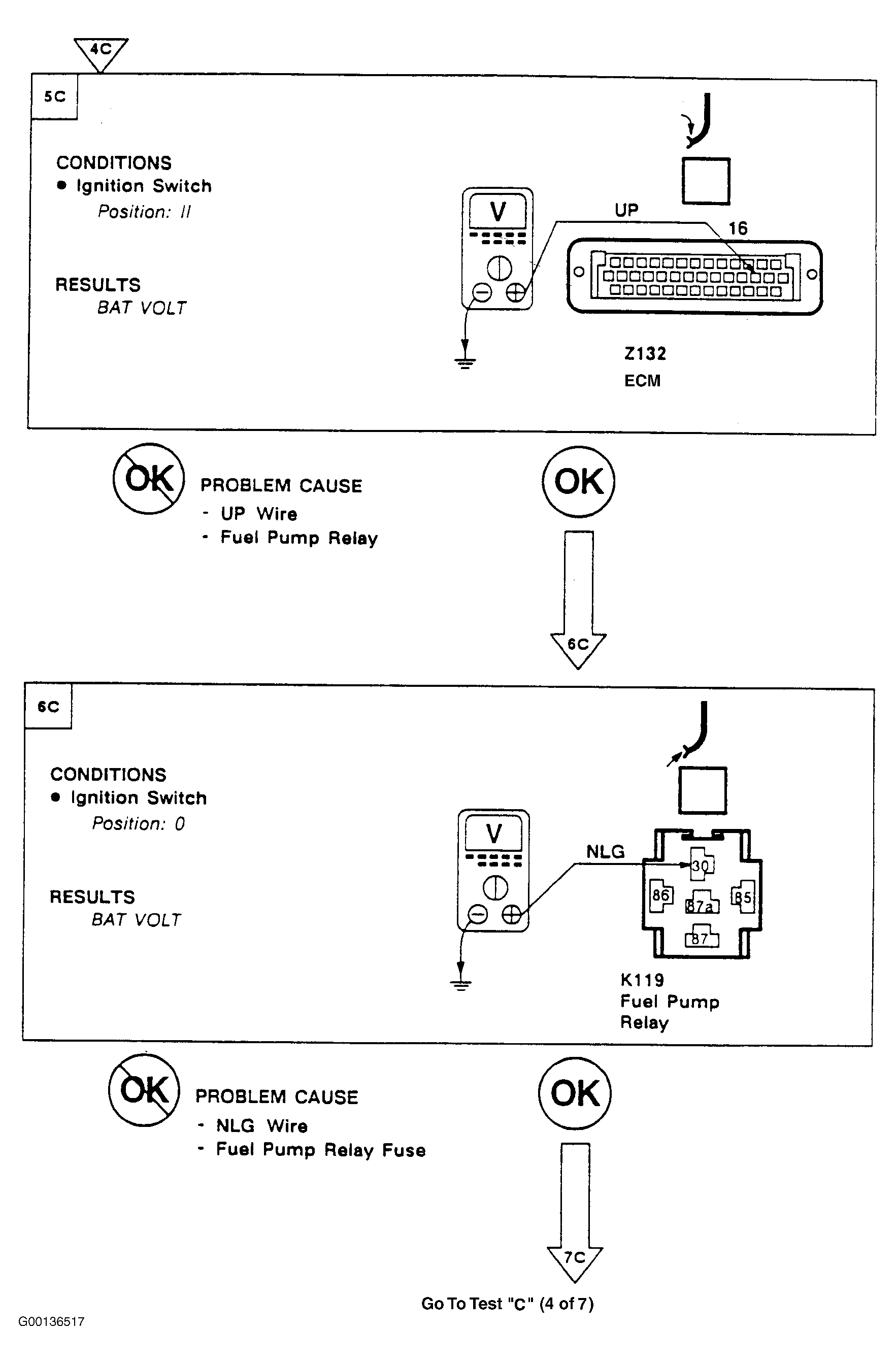

Fig 6: Test "C" (3 Of 7)

G00136517

Courtesy of LAND ROVER NORTH AMERICA, INC.

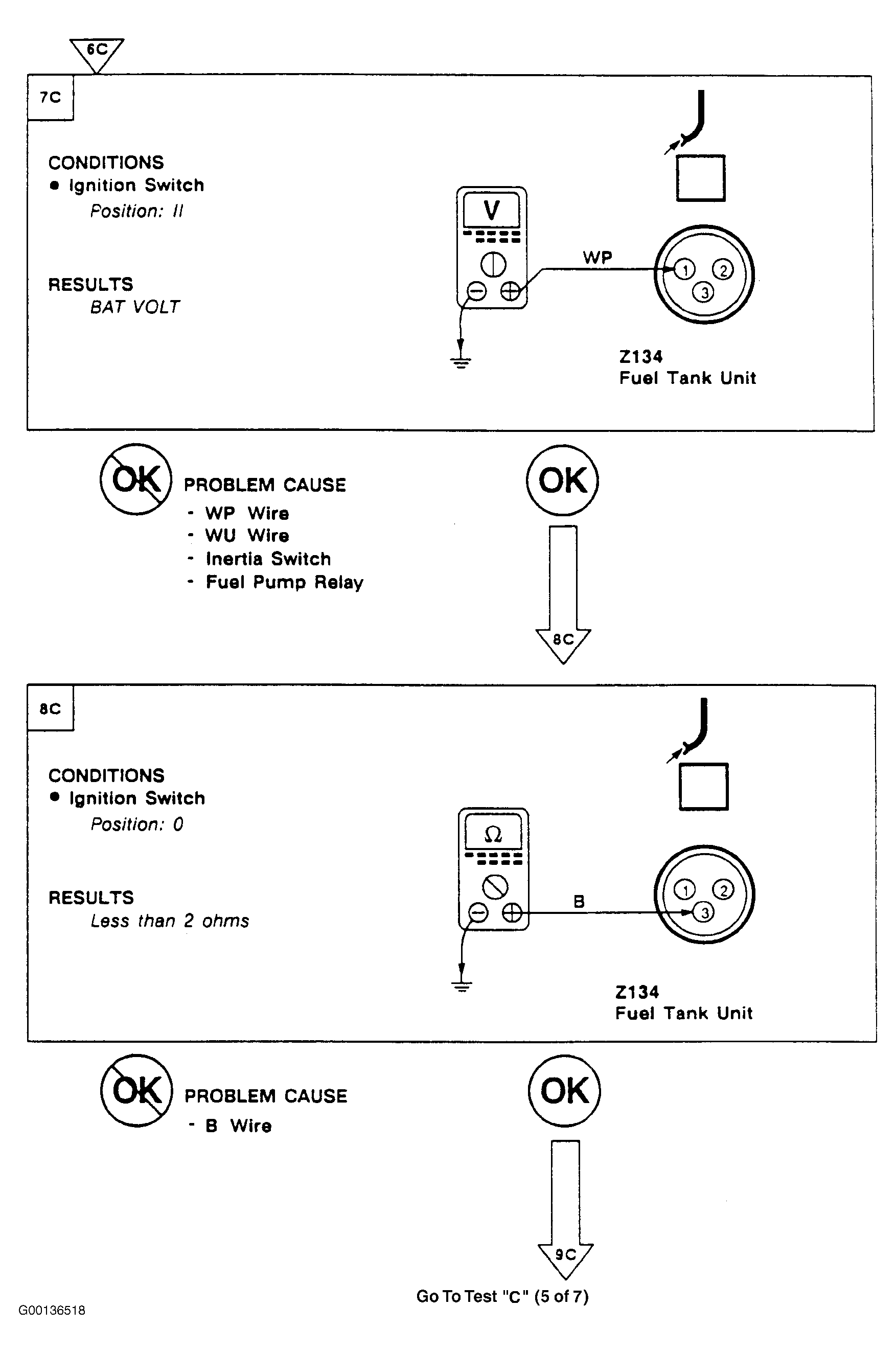

Fig 7: Test "C" (4 Of 7)

G00136518

Courtesy of LAND ROVER NORTH AMERICA, INC.

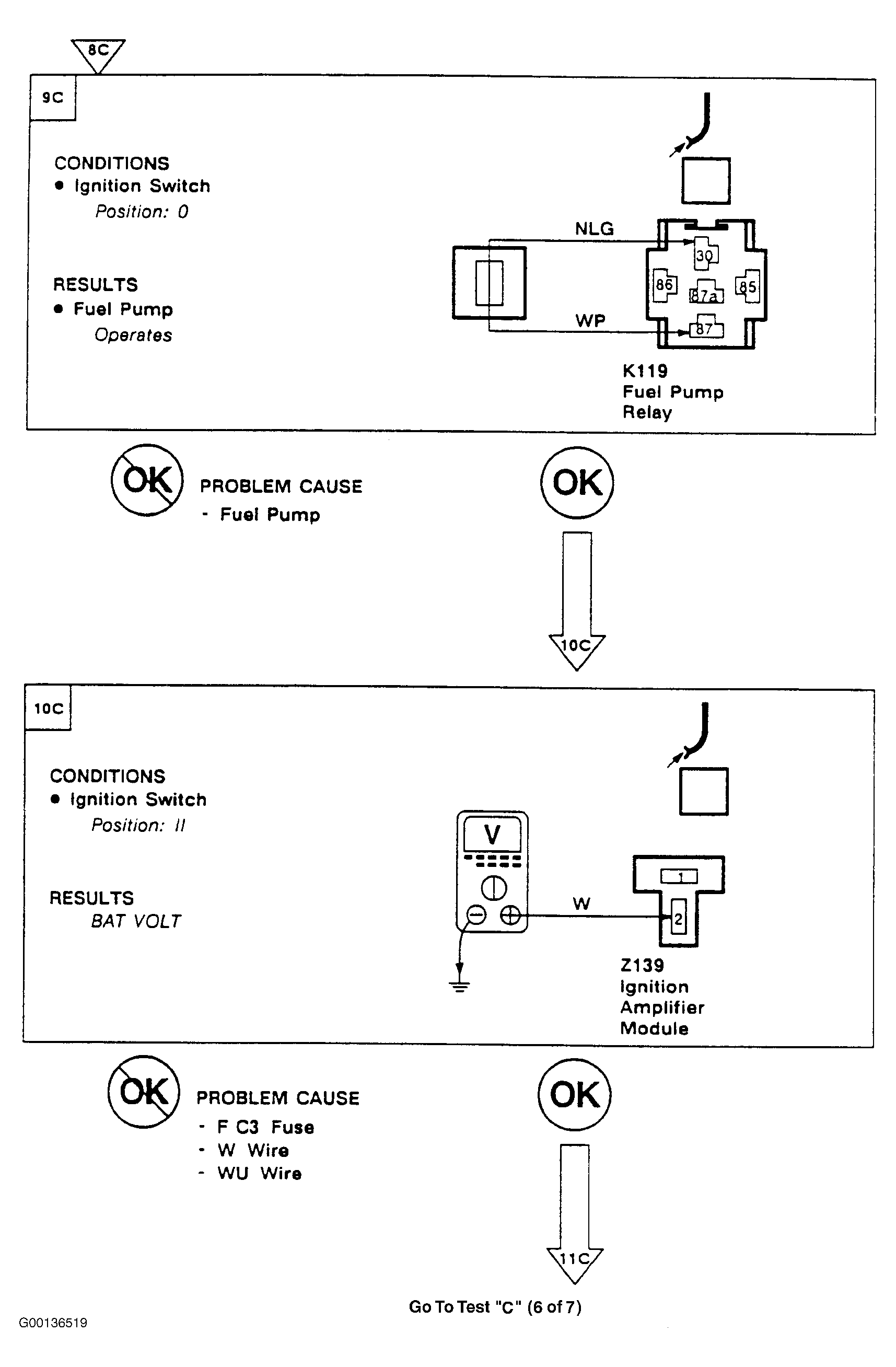

Fig 8: Test "C" (5 Of 7)

G00136519

Courtesy of LAND ROVER NORTH AMERICA, INC.

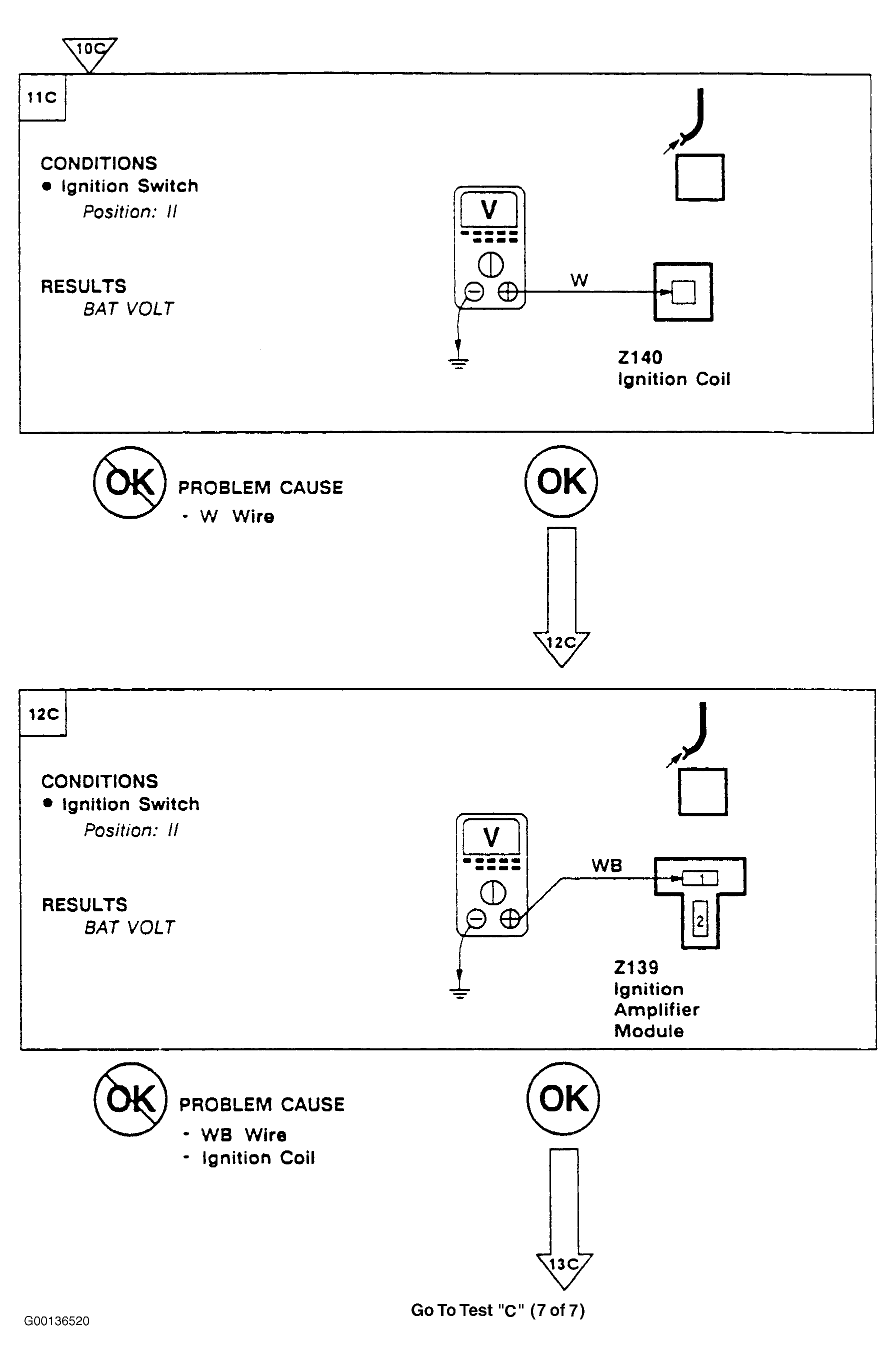

Fig 9: Test "C" (6 Of 7)

G00136520

Courtesy of LAND ROVER NORTH AMERICA, INC.

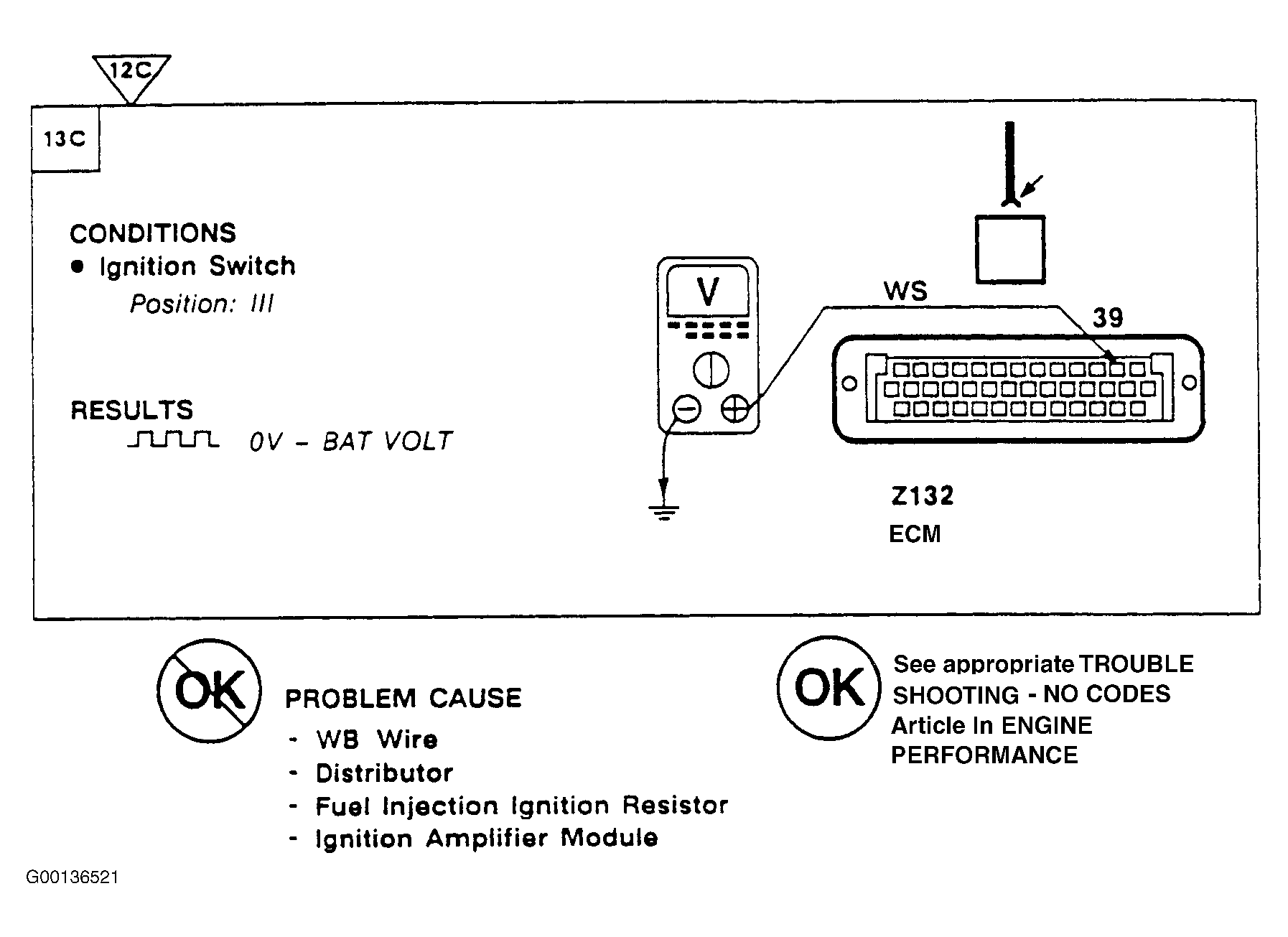

Fig 10: Test "C" (7 Of 7)

G00136521

Courtesy of LAND ROVER NORTH AMERICA, INC.
