Test A: Mirrors Do Not Operate At All

For diagnosis, refer to illustrations. See Fig 1 -Fig 4 .

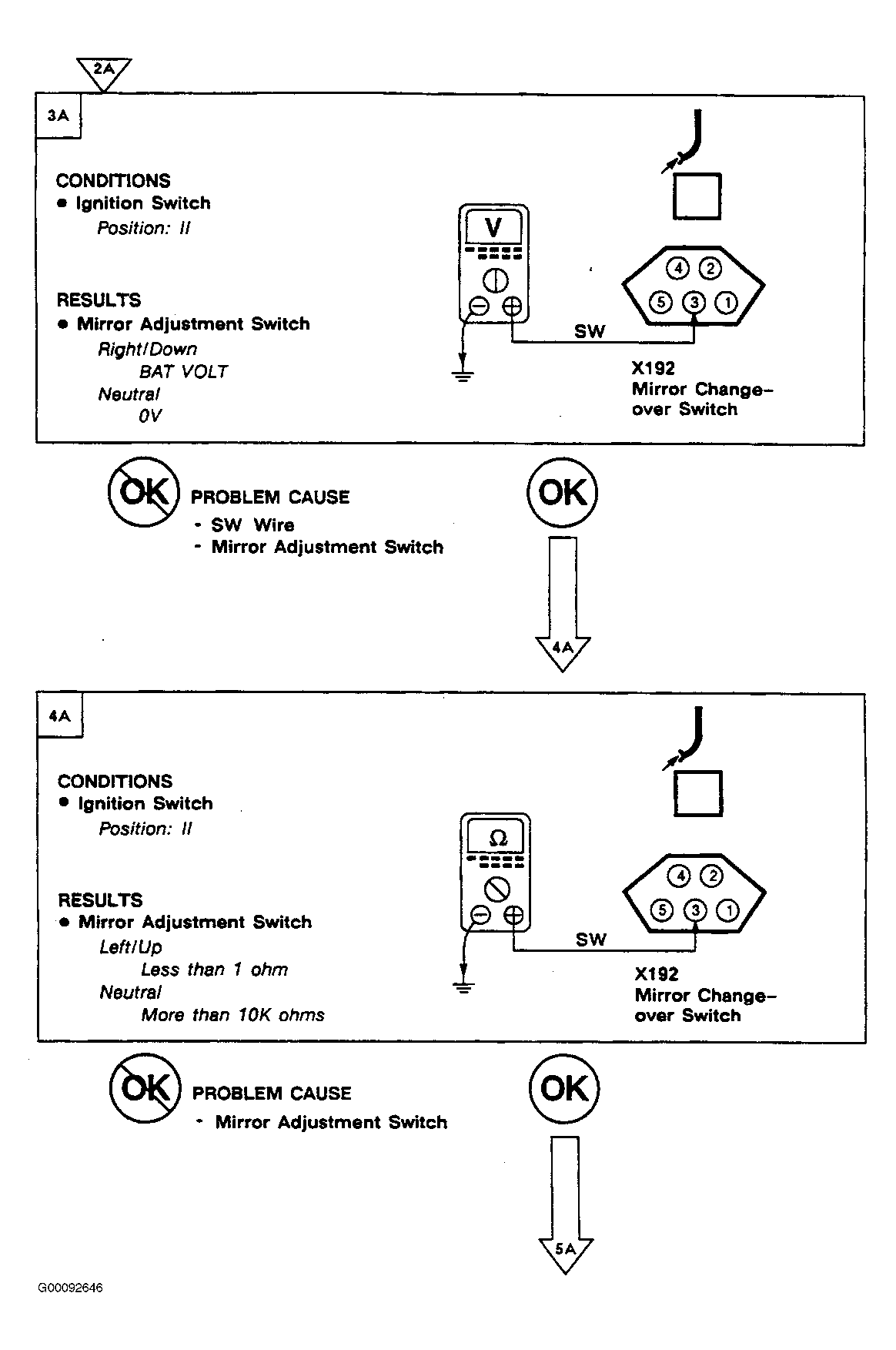

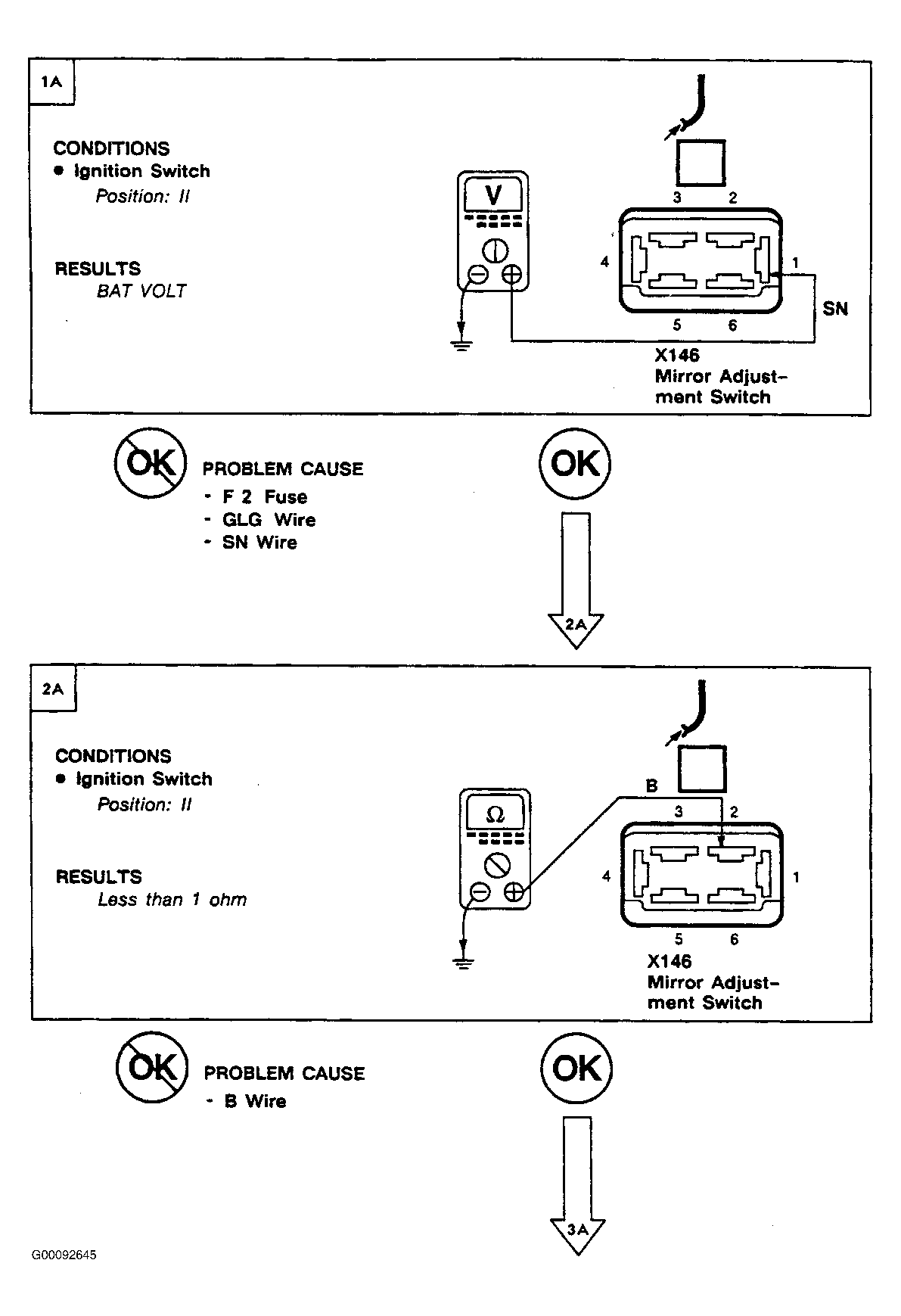

Fig 1: Test A: Mirrors Do Not Operate At All (1 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: Test A: Mirrors Do Not Operate At All (2 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

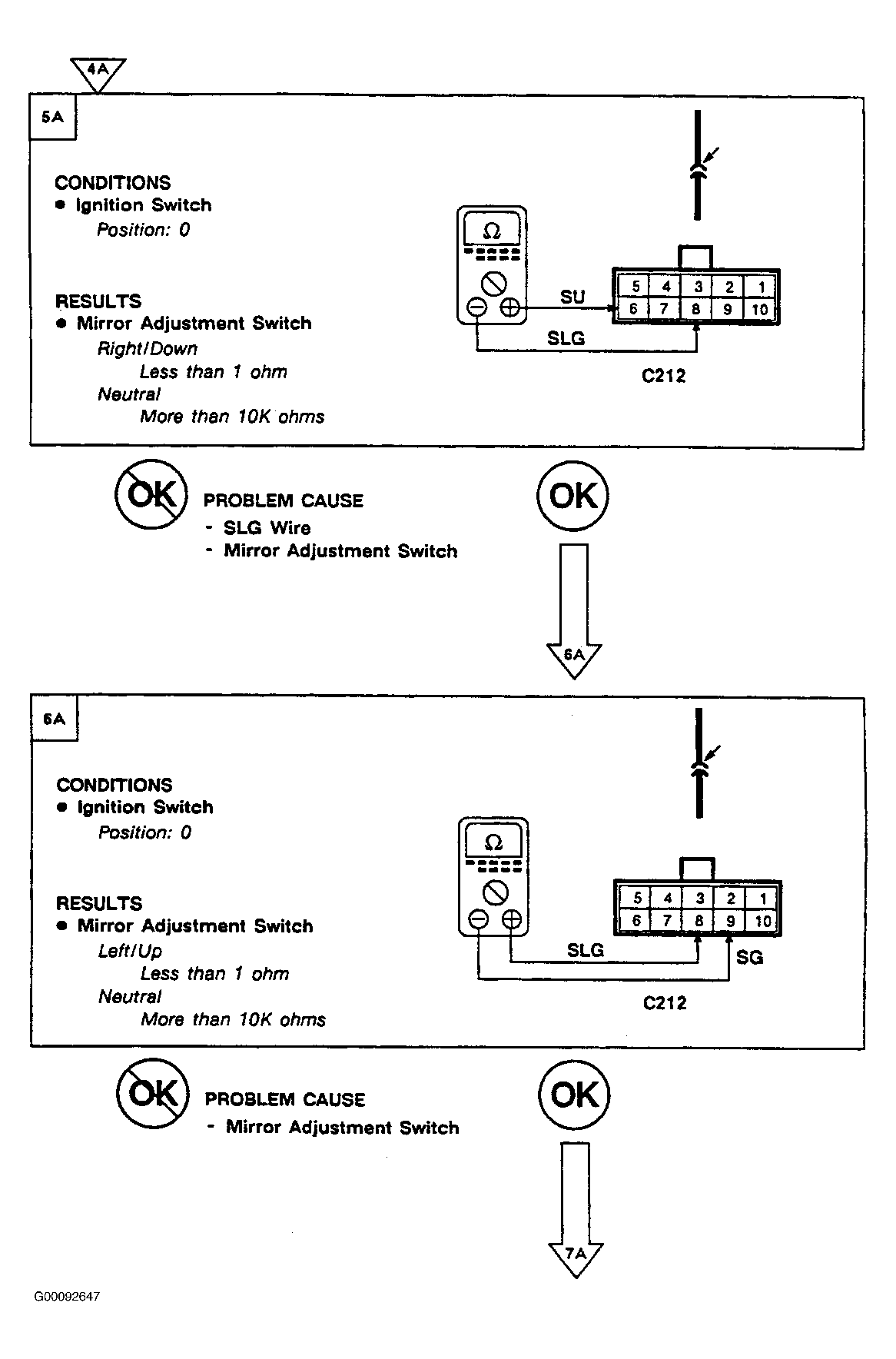

Fig 3: Test A: Mirrors Do Not Operate At All (3 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

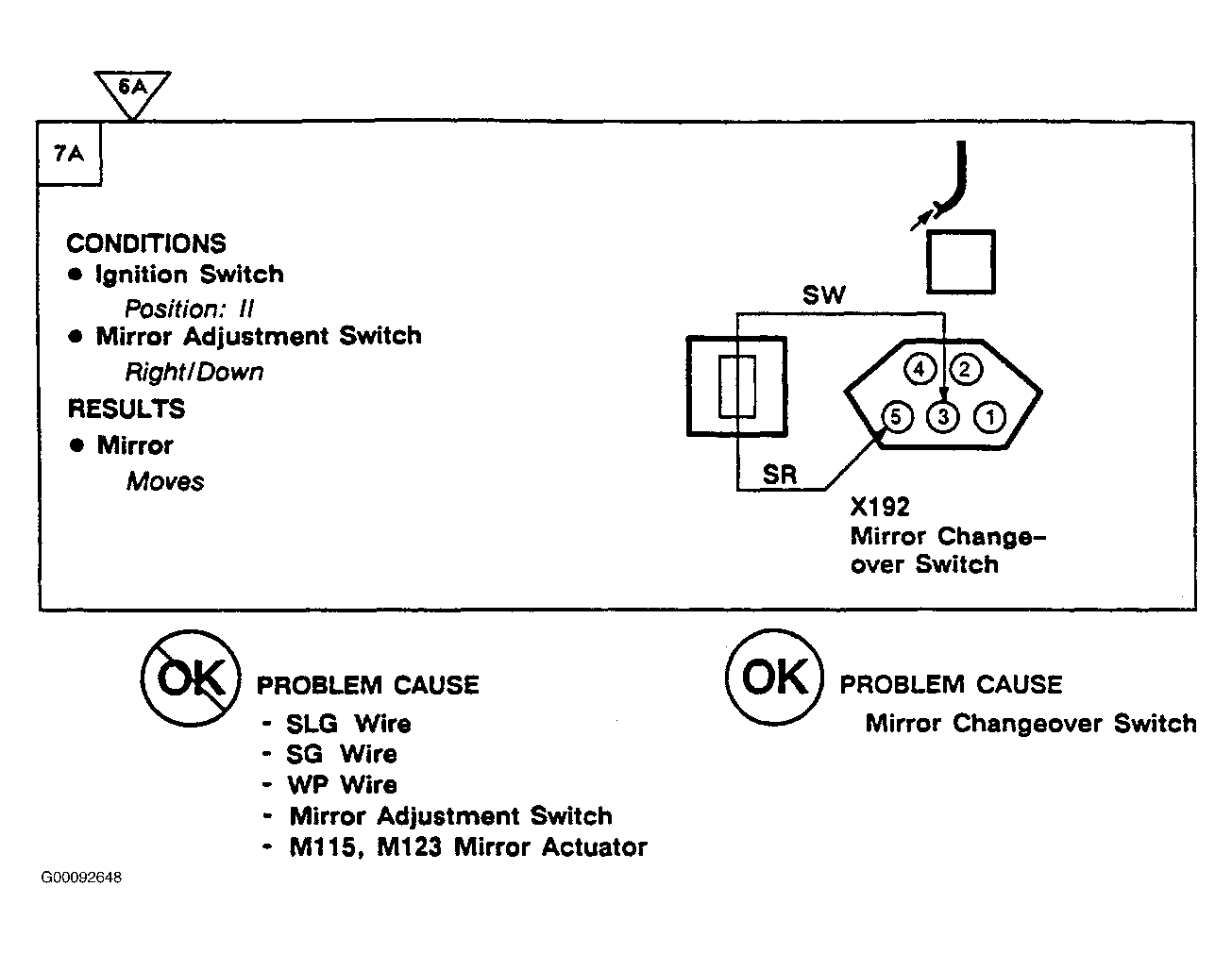

Fig 4: Test A: Mirrors Do Not Operate At All (4 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.
