Land Rover
›
1993
›
Defender 110
›
Repair and Diagnosis
›
Electrical
›
Starters
›
Wiring Diagrams
Wiring Diagrams

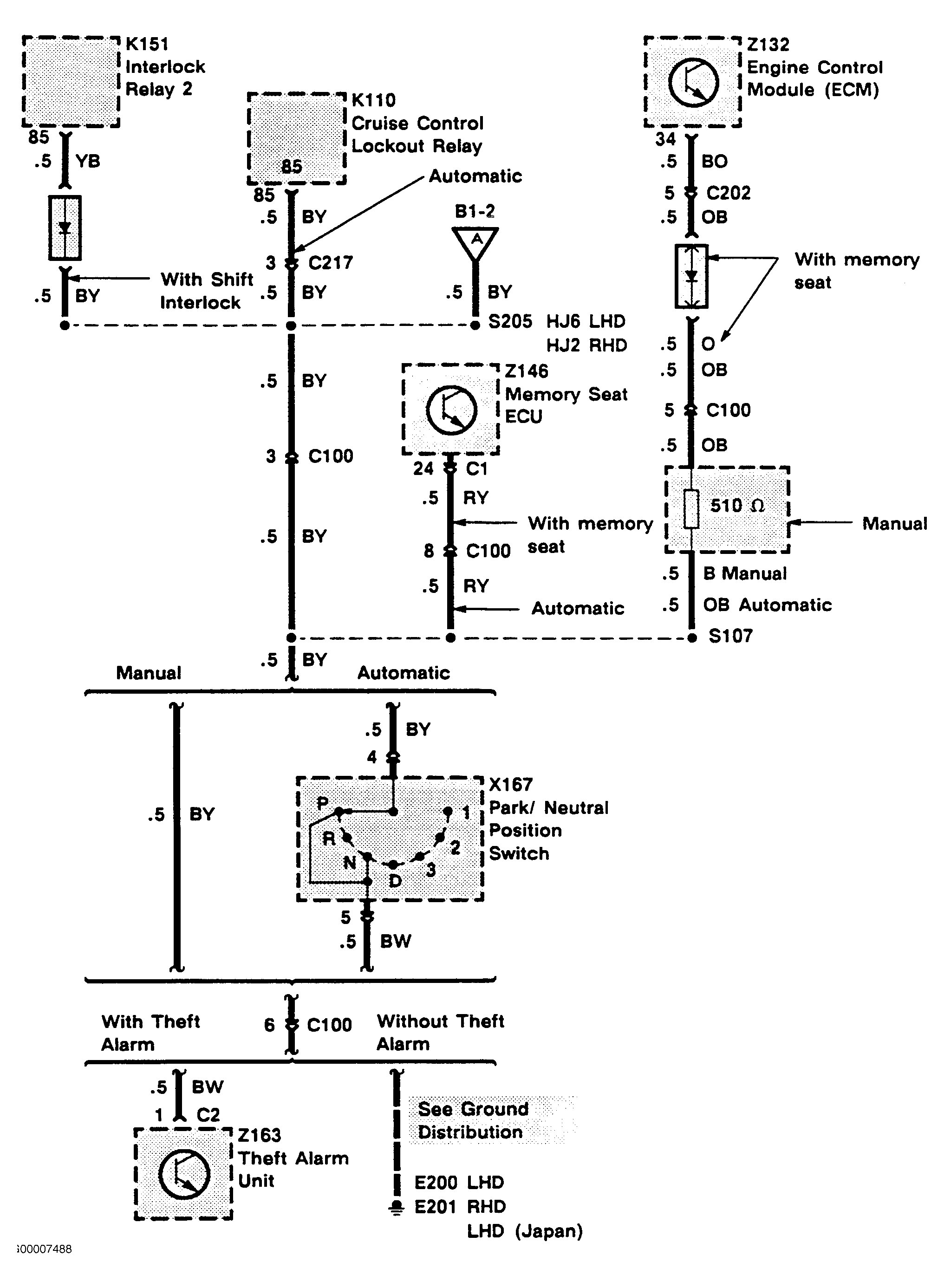

Fig 1: Starter System Wiring Diagram (1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

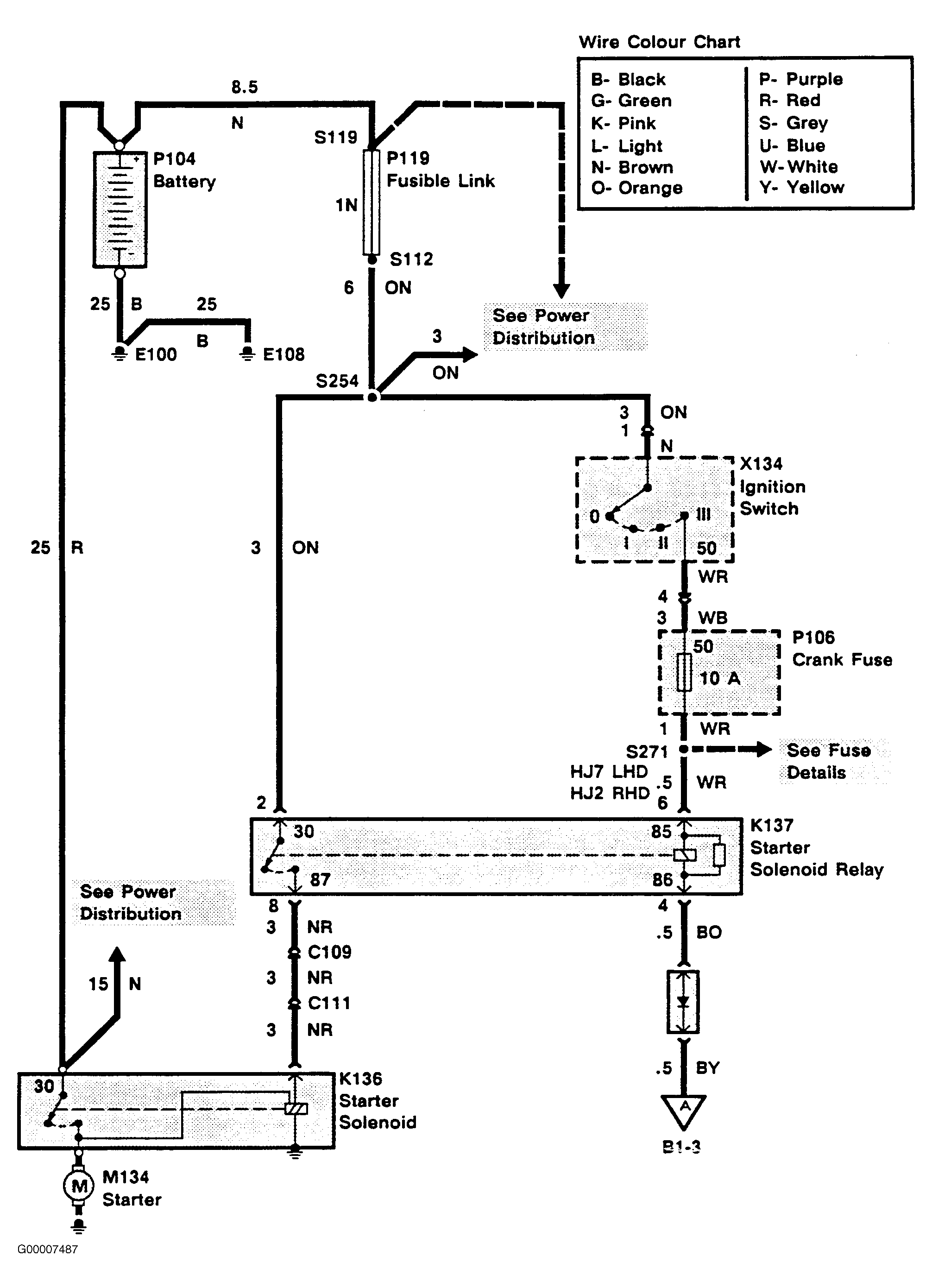

Fig 2: Starter System Wiring Diagram (2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
