Test B
Test B

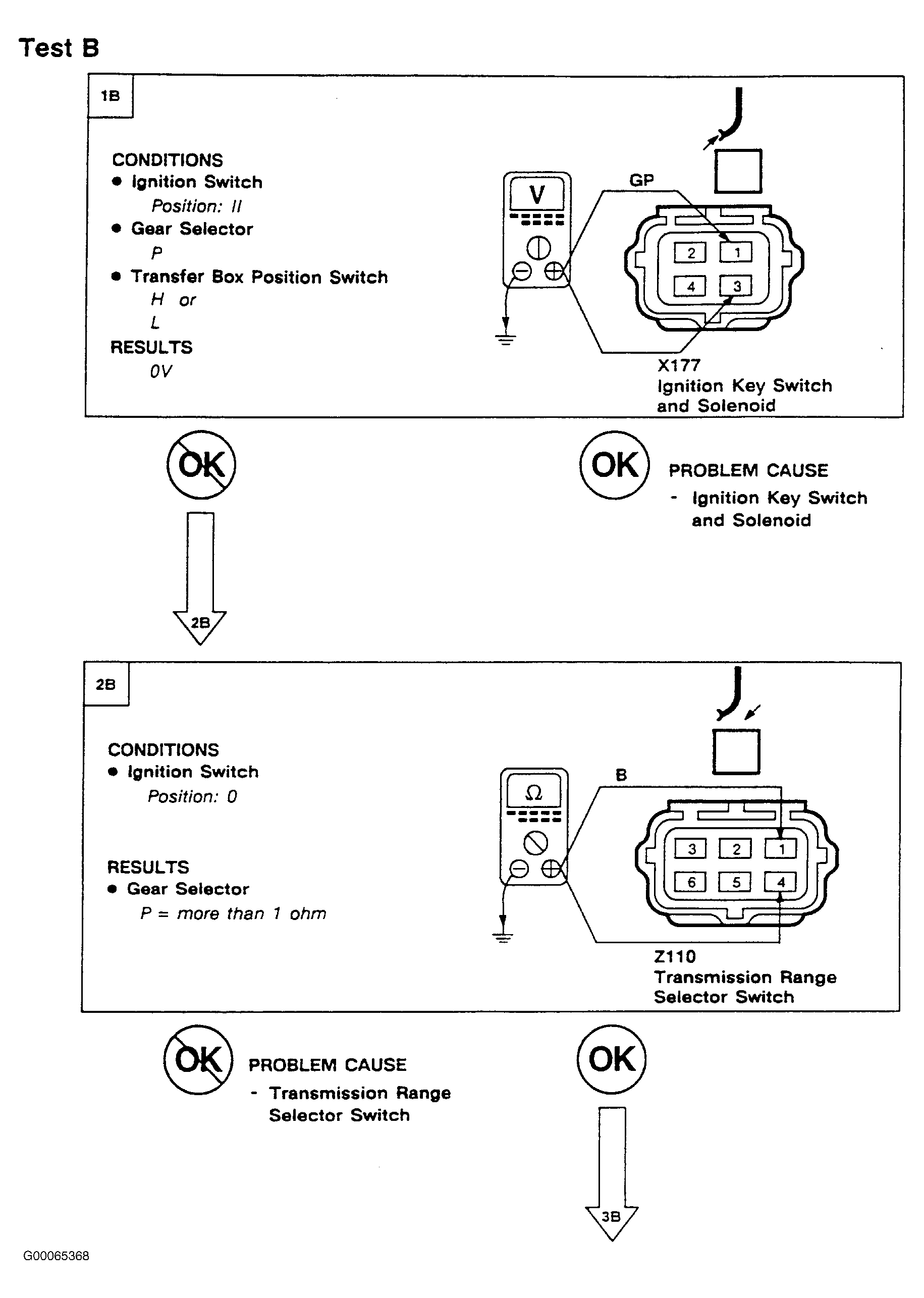

Fig 1: Test B - Steps 1B & 2B (1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

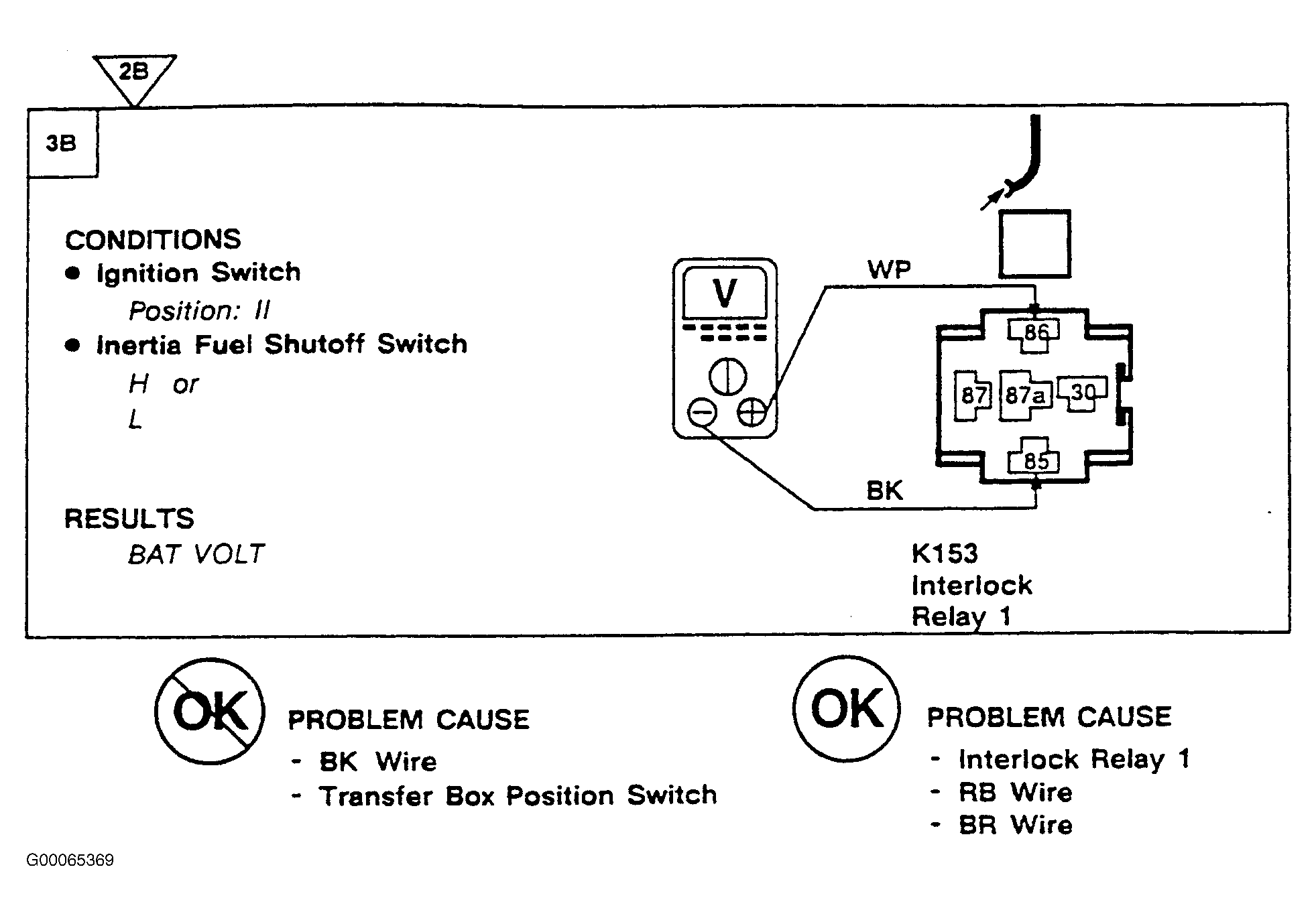

Fig 2: Test B - Step 3B (2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
