Test C
Test C

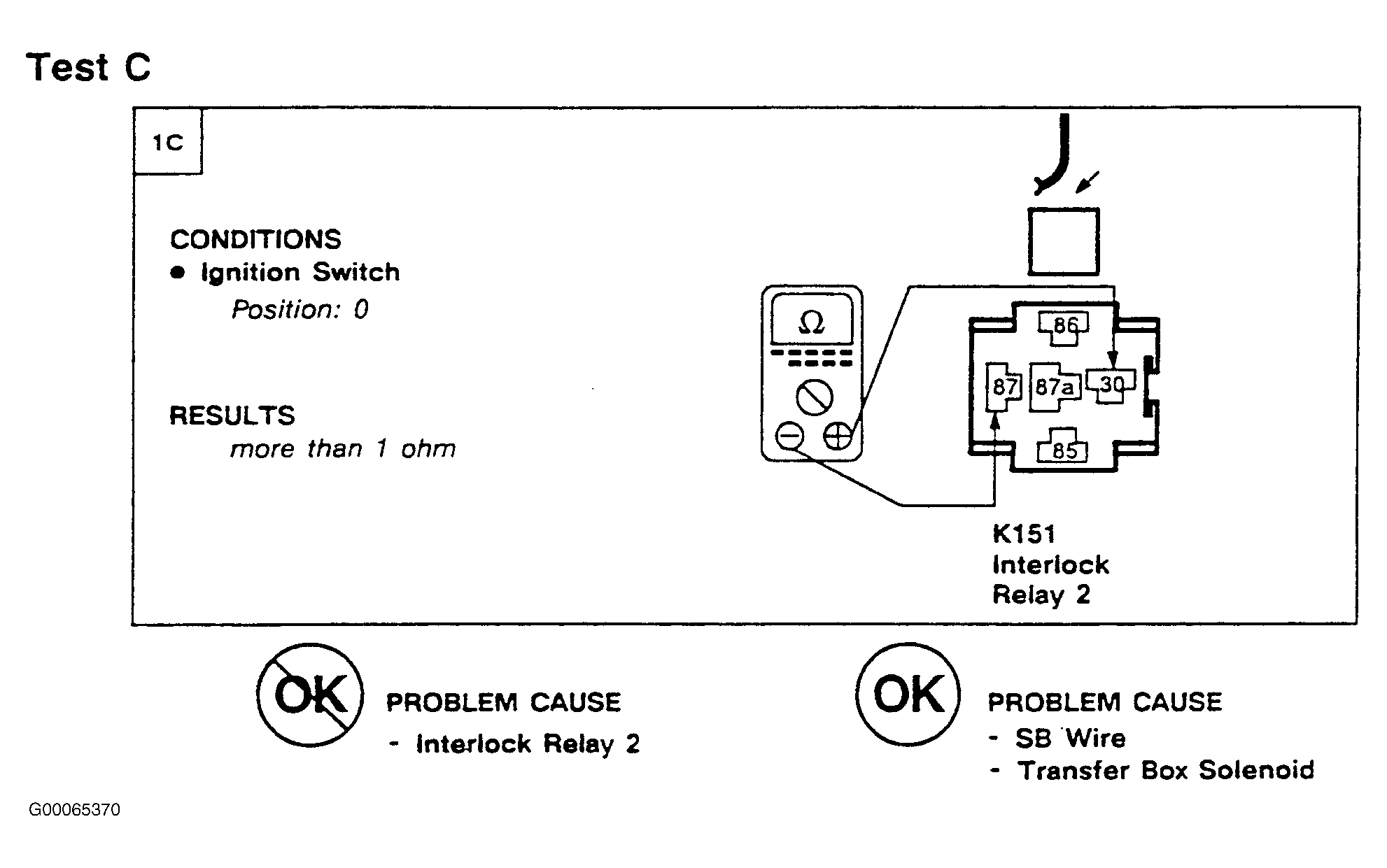

Fig 1: Test C - Step 1C
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
