Test D
Test D

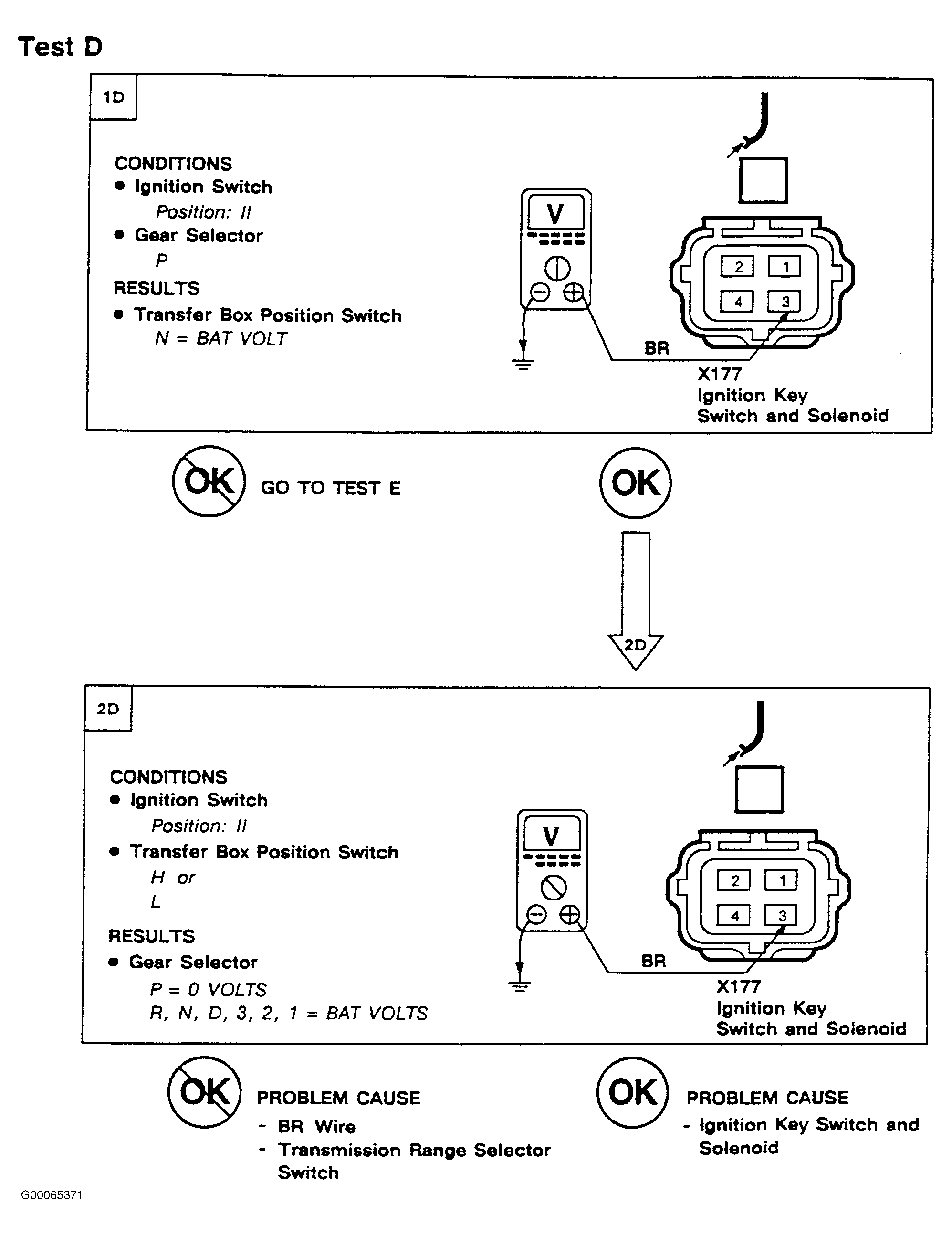

Fig 1: Test D - Steps 1D & 2D
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
