Wiring Diagrams

NOTE: 1994 wiring diagrams are not available from manufacturer.

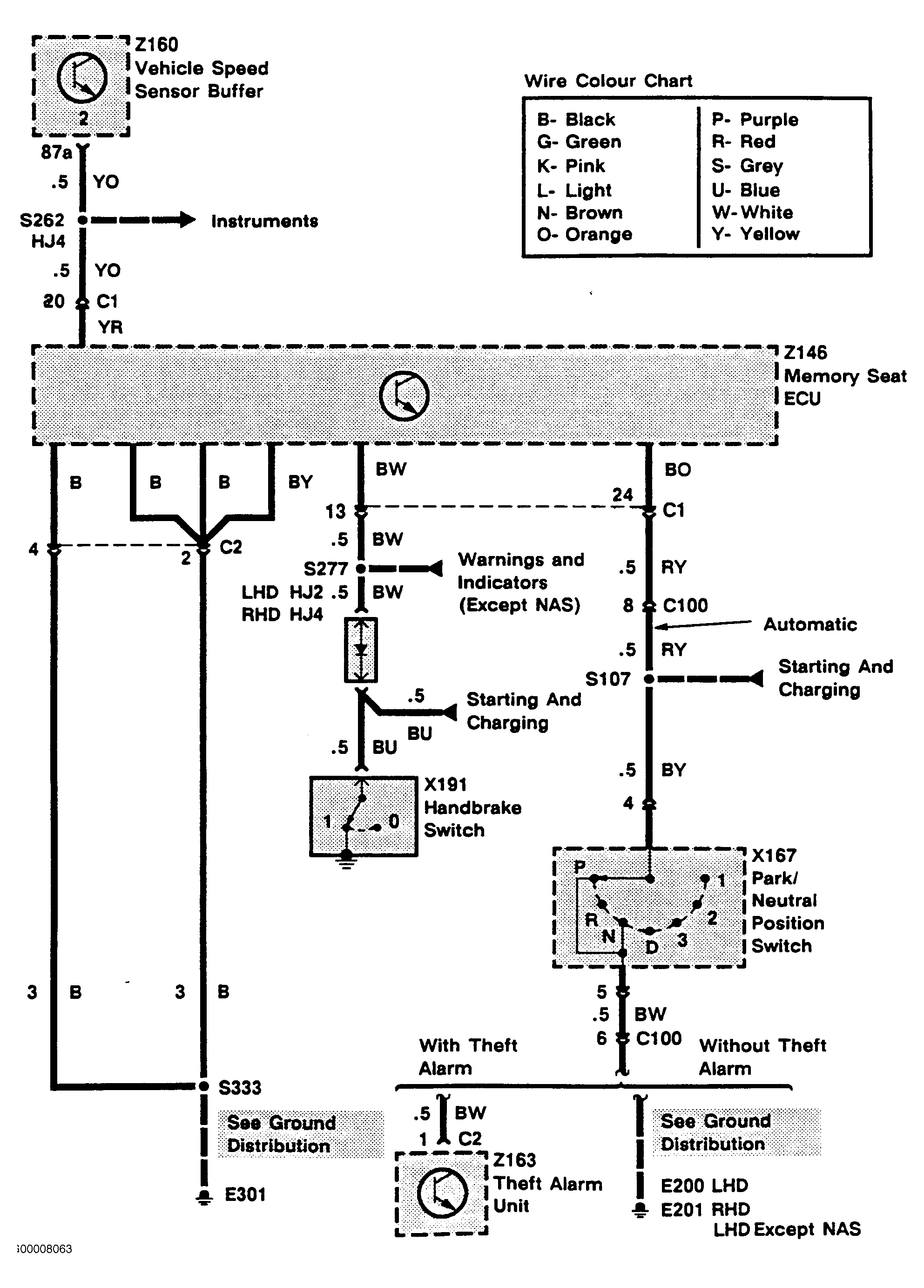

Fig 1: Memory Seat & Mirror System Wiring Diagram (1993 - 1 Of 8)

Courtesy of LAND ROVER NORTH AMERICA, INC.

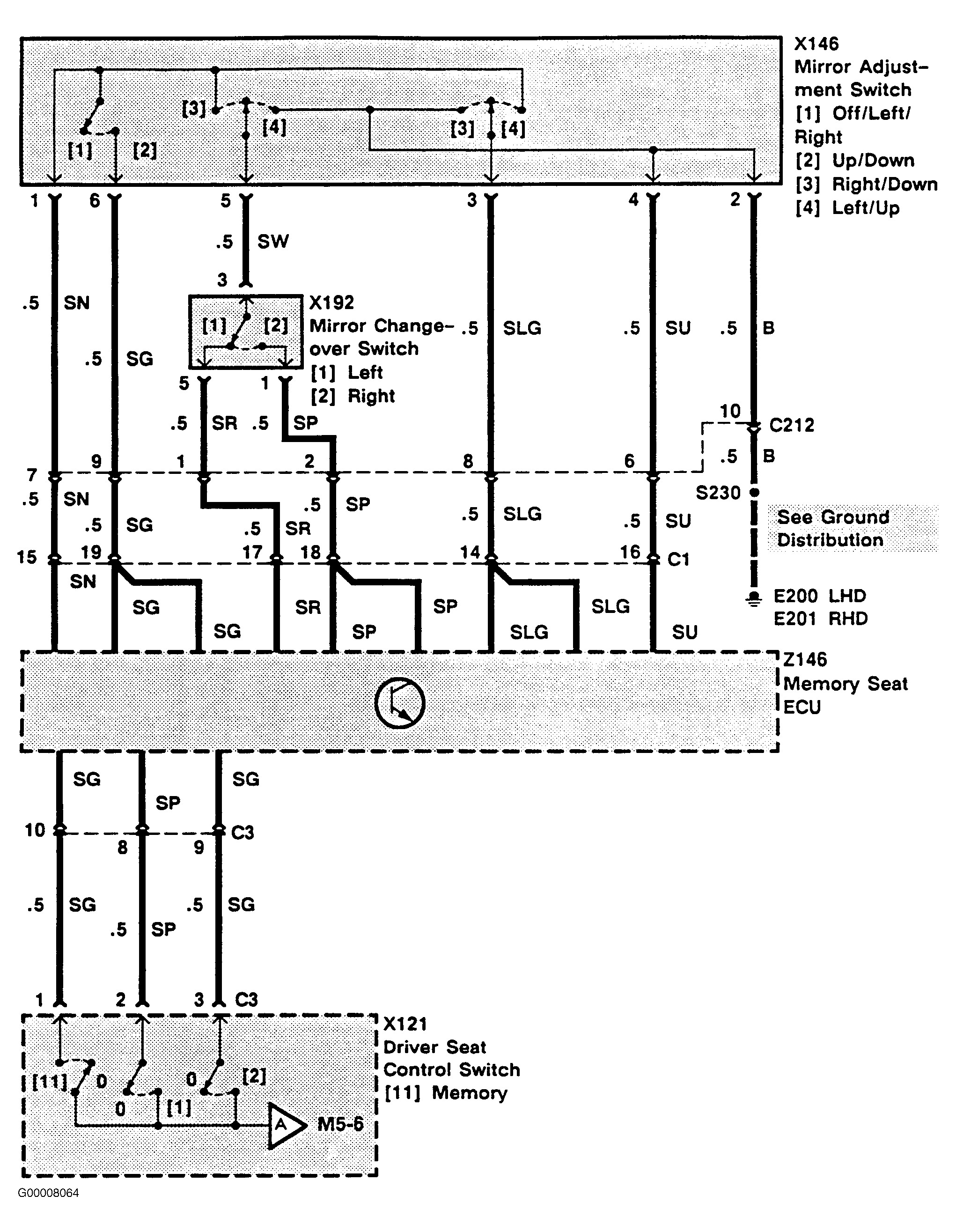

Fig 2: Memory Seat & Mirror System Wiring Diagram (1993 - 2 Of 8)

Courtesy of LAND ROVER NORTH AMERICA, INC.

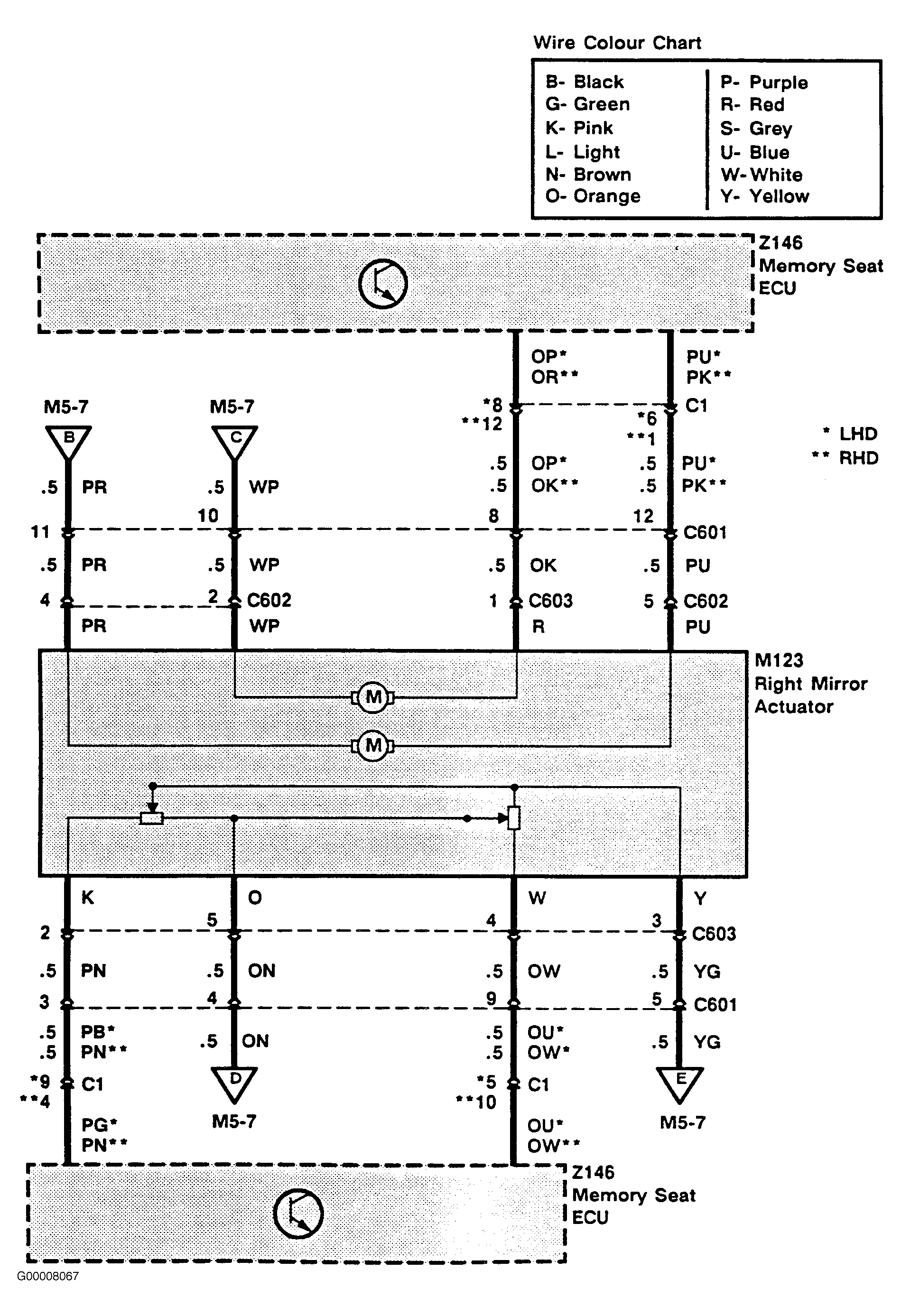

Fig 3: Memory Seat & Mirror System Wiring Diagram (1993 - 3 Of 8)

Courtesy of LAND ROVER NORTH AMERICA, INC.

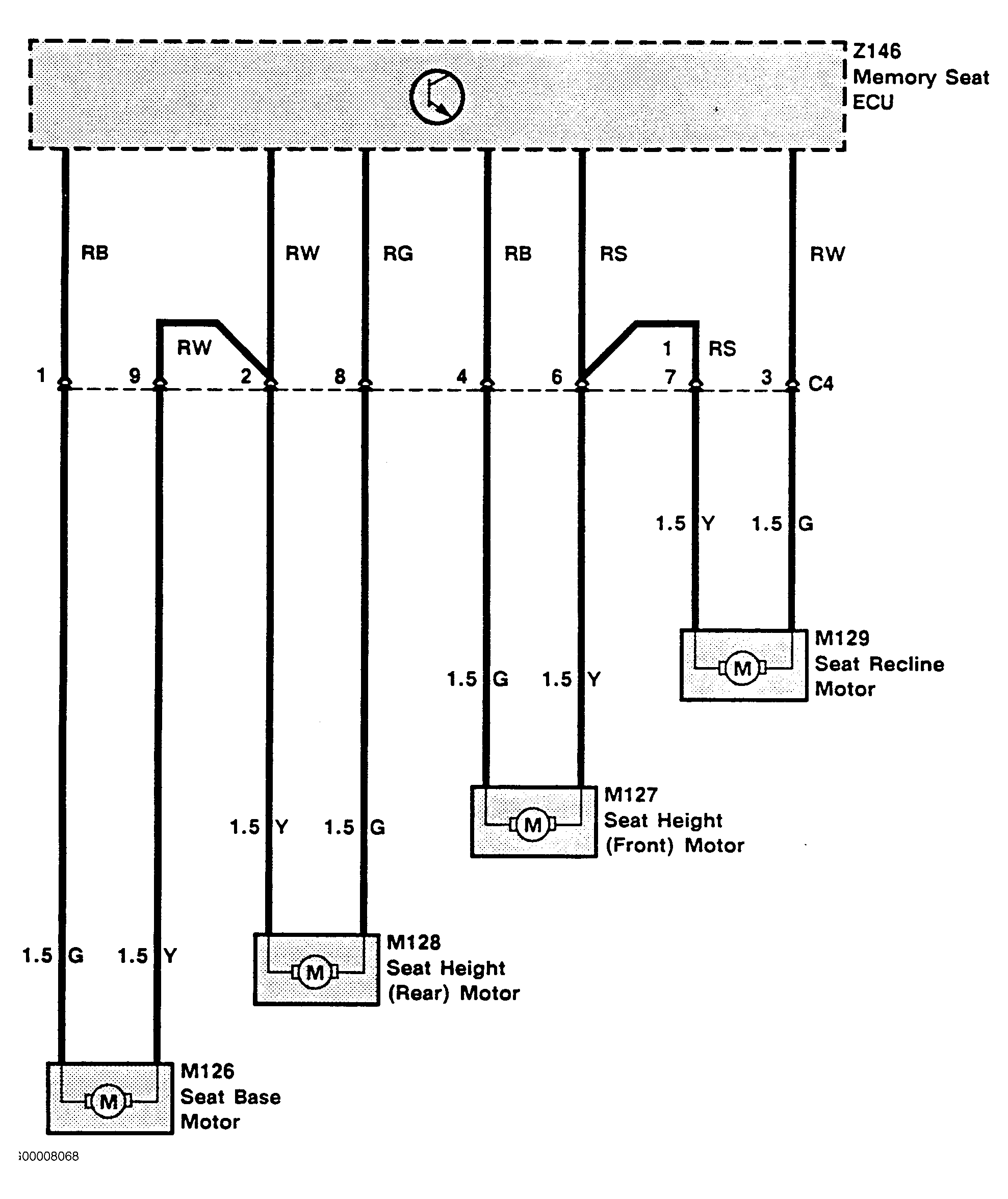

Fig 4: Memory Seat & Mirror System Wiring Diagram (1993 - 4 Of 8)

Courtesy of LAND ROVER NORTH AMERICA, INC.

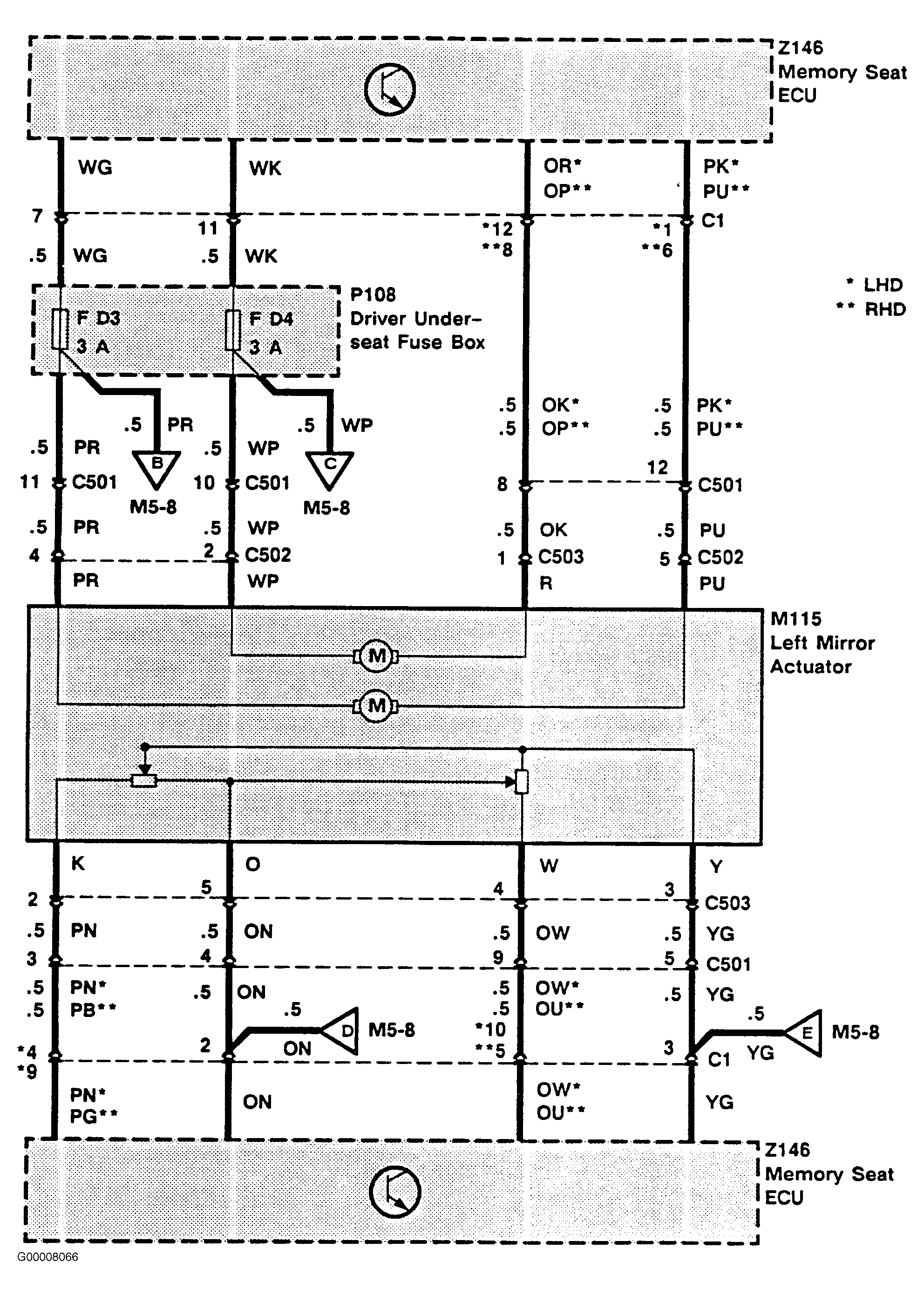

Fig 5: Memory Seat & Mirror System Wiring Diagram (1993 - 5 Of 8)

Courtesy of LAND ROVER NORTH AMERICA, INC.

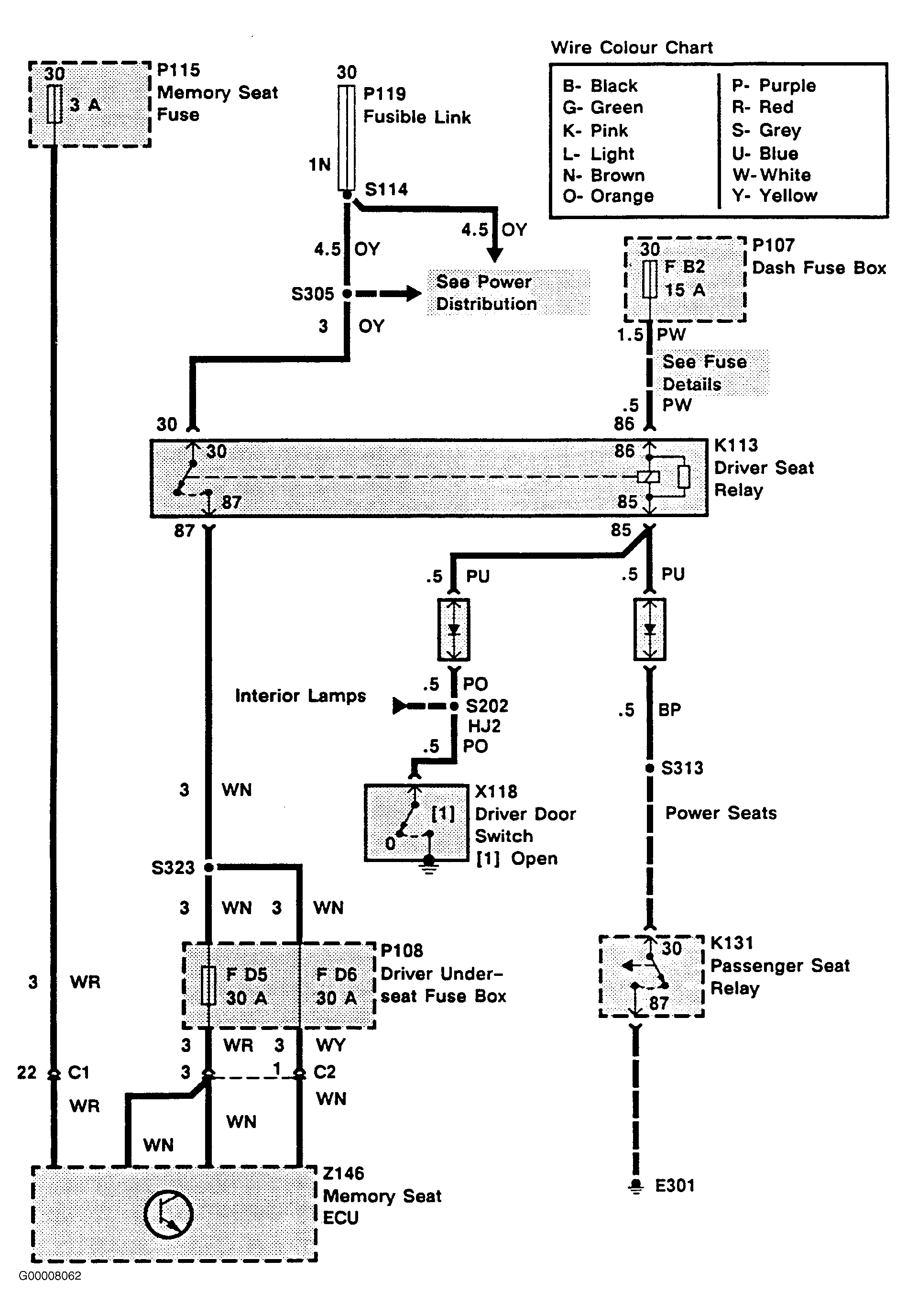

Fig 6: Memory Seat & Mirror System Wiring Diagram (1993 - 6 Of 8)

Courtesy of LAND ROVER NORTH AMERICA, INC.

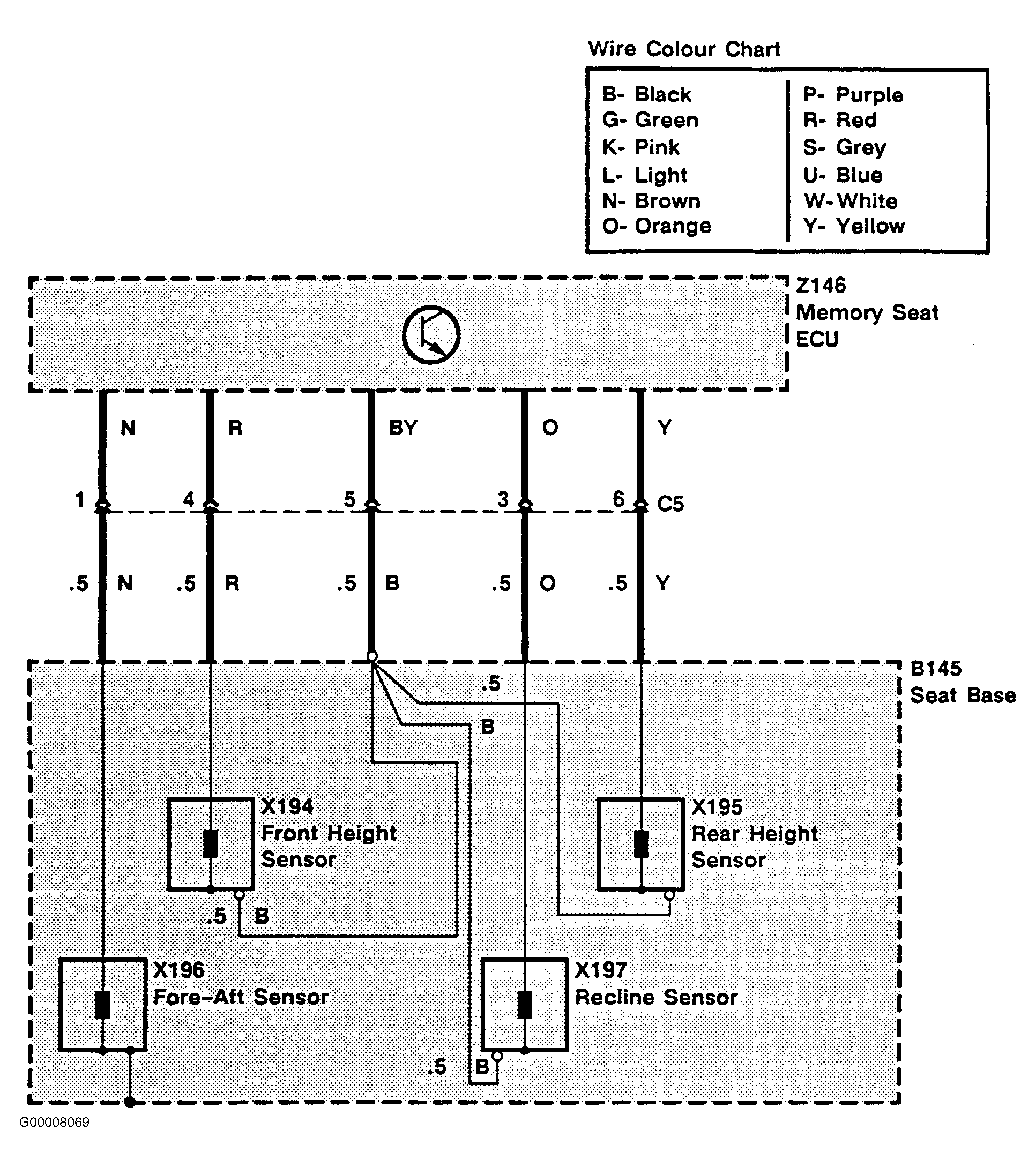

Fig 7: Memory Seat & Mirror System Wiring Diagram (1993 - 7 Of 8)

Courtesy of LAND ROVER NORTH AMERICA, INC.

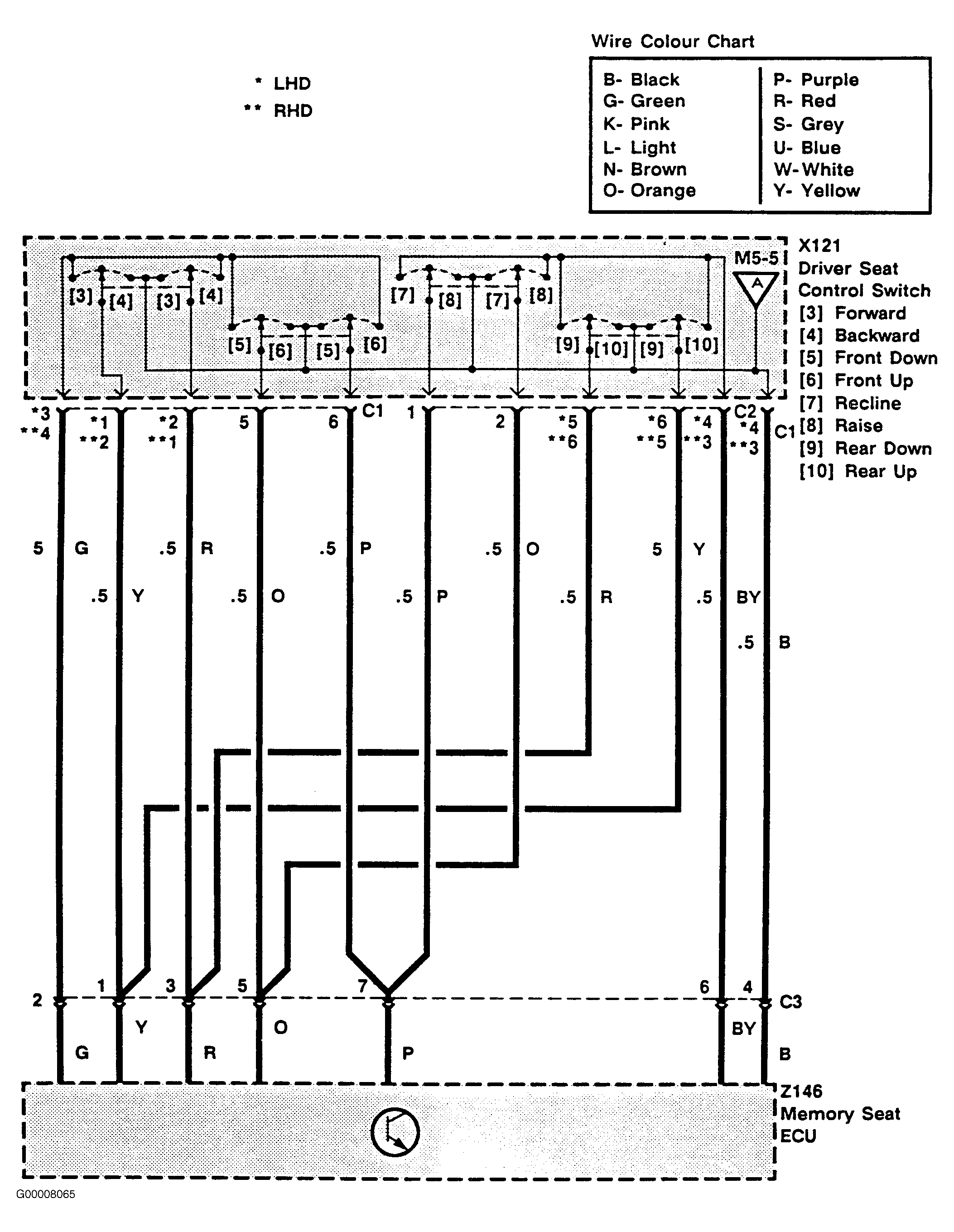

Fig 8: Memory Seat & Mirror System Wiring Diagram (1993 - 8 Of 8)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 9: Memory Seat Wiring Harness Layout

Courtesy of LAND ROVER NORTH AMERICA, INC.
