Engine Tuning Data - 3.9L V8

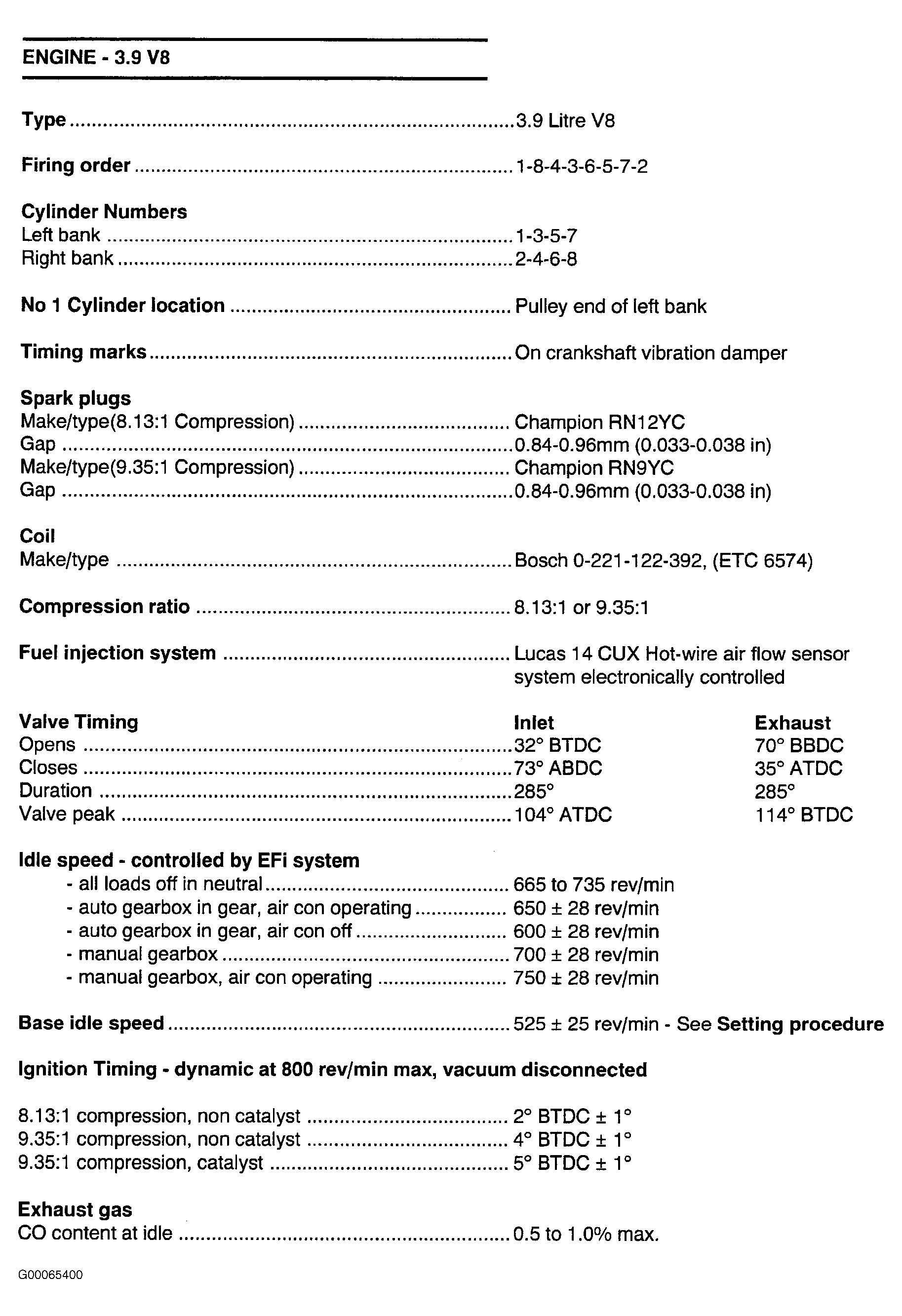

Fig 1: Engine Tuning Data - 3.9L V8 (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

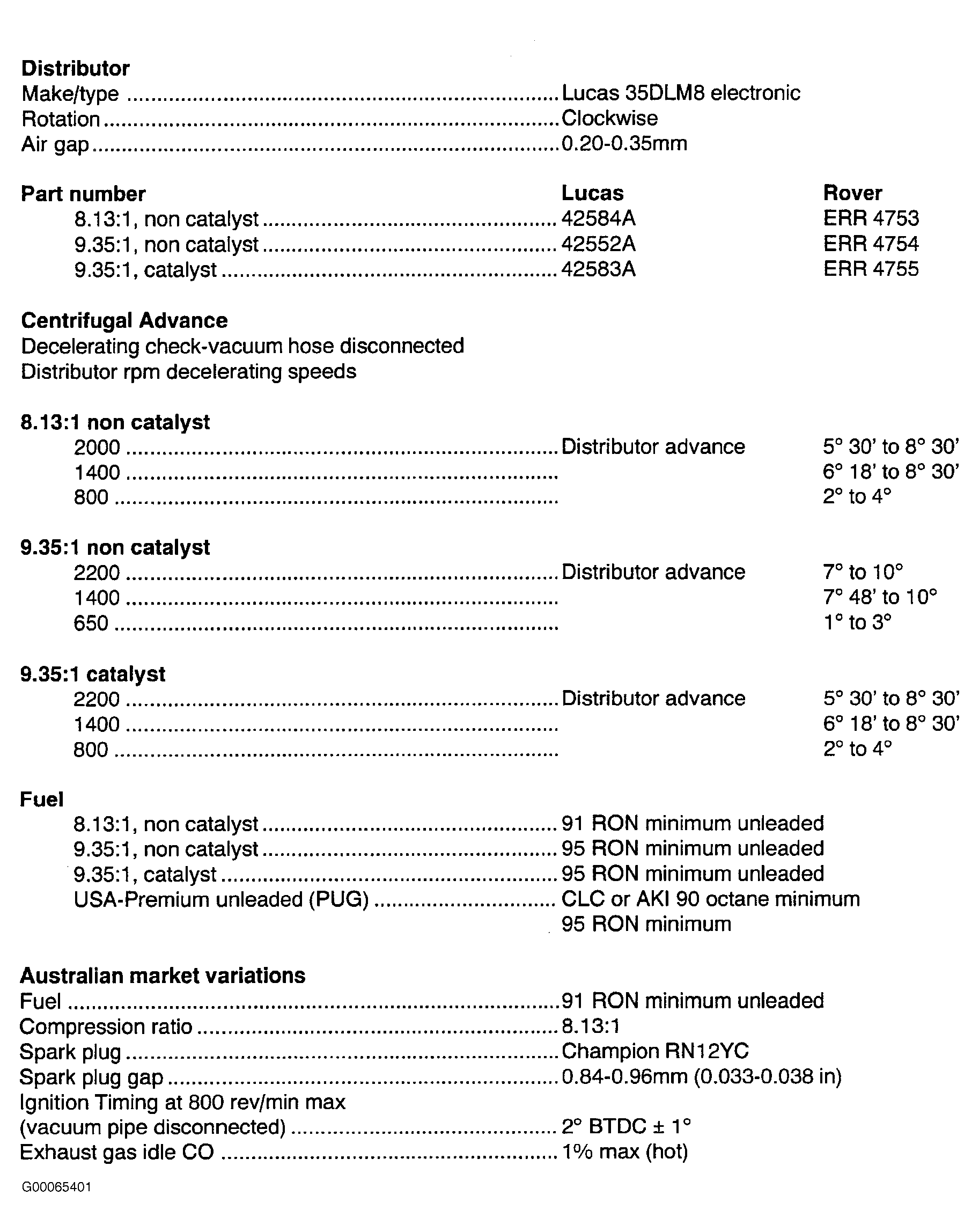

Fig 2: Engine Tuning Data - 3.9L V8 (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
