FUEL PUMP COMPONENT REPLACEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): 19/04/96/US, Date of Issue: December 29, 2000

LAND ROVER:	Range Rover Classic, Discovery
ISSUE:	3
SECTION:	Fuel System
AFFECTED VEHICLES:	Range Rover Classic (LH) - 474554 to 647645; Discovery (LJ) - 393361 to 064760;

Superceded Bulletin(s): 19/04/96/US

NOTE: This TIB supersedes 19/04/96/US.

DETAIL

Should a fuel pump require replacement on a vehicle within the above VIN range, both a replacement pump and an adapter harness will be required. The original style of fuel pump fitted to the vehicle is no longer available as a spare part.

The adapter harness will permit replacement of the older style pump with the newer component.

CAUTION: Two variants of the adapter harness are available because of different vehicle configurations. Ensure that the correct harness is selected for the vehicle under repair.

NOTE: Vehicles built after the above VIN range do not require the adapter harness, however the new fuel pump ESR 3926 can be used.

ACTION REQUIRED

Replace fuel pump with new component and adapter harness, if required.

PARTS INFORMATION

ESR 3926 Fuel pump
STC 3683 Adapter harness - Range Rover Classic
STC 3919 Adapter harness - Discovery Series I

PROCEDURE

Refer to the Workshop Manual section 19 for pump installation instructions.

Additional information for fitting of the adapter harness:

Insert fuel pump into tank and connect fuel lines to pump as described in Workshop Manual.
Verify proper adapter link harness wiring using Illustrations. See Fig 1 and 2 .

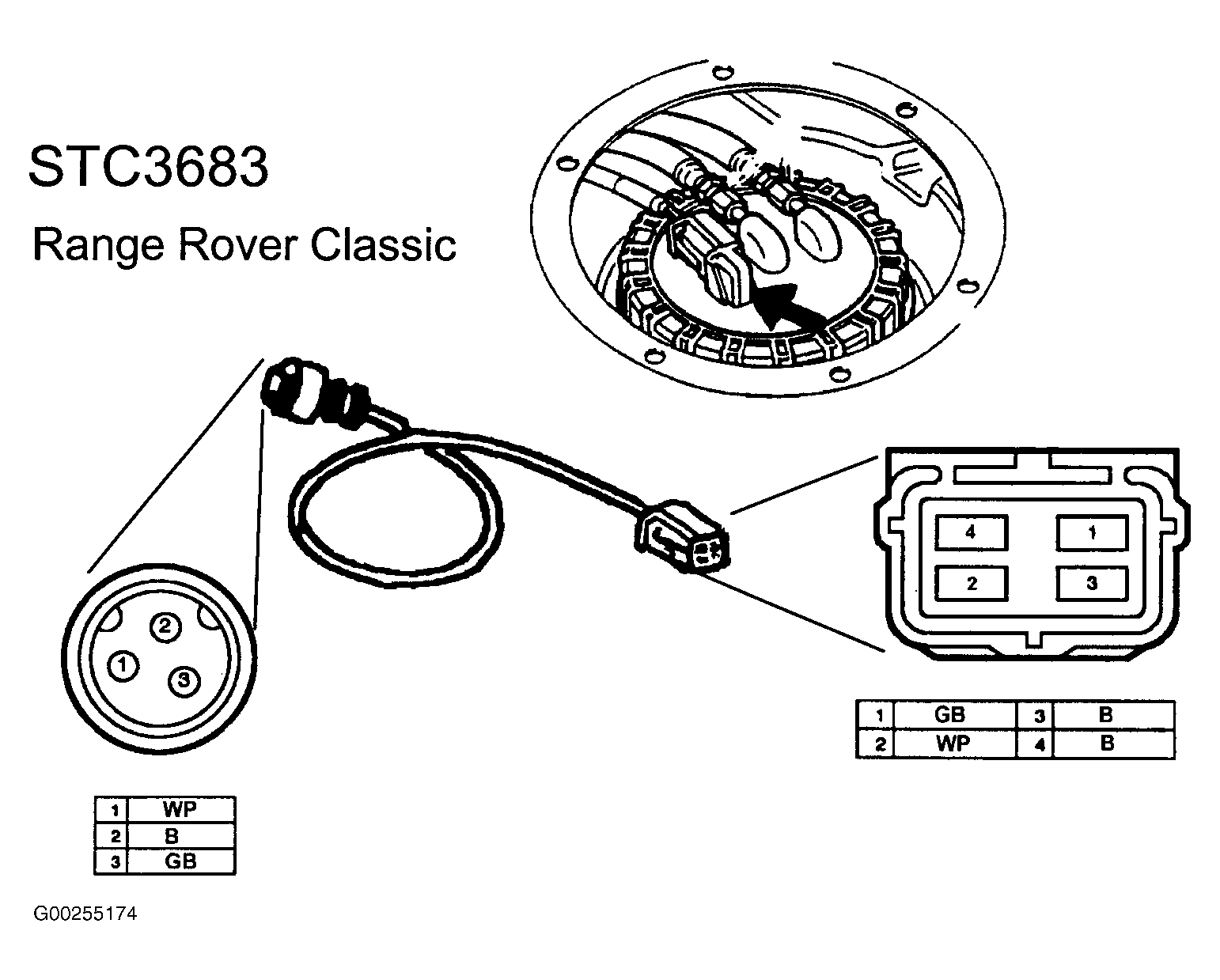

Fig 1: Adapter Link Harness Wiring (Range Rover Classic)

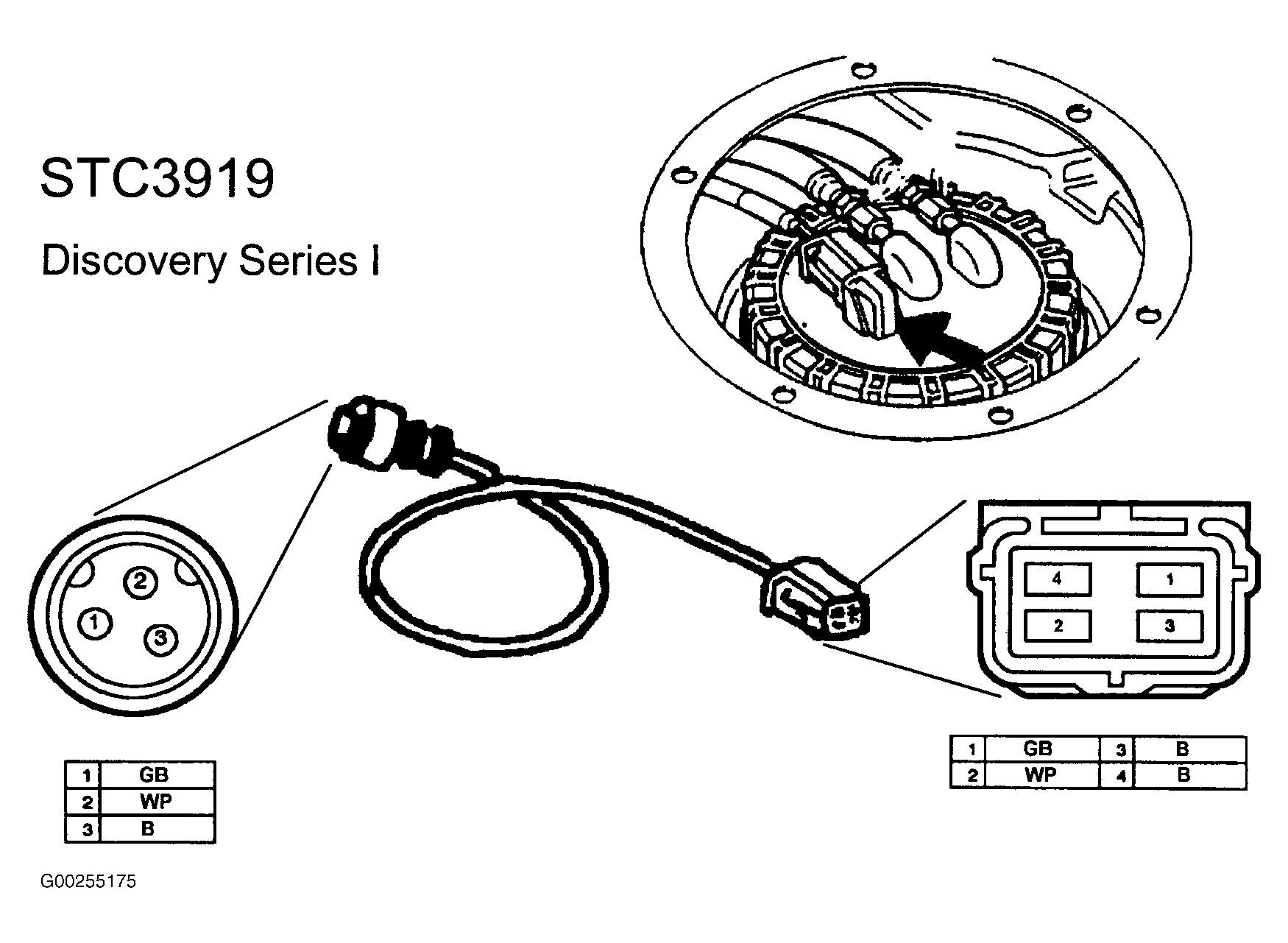

Fig 2: Adapter Link Harness Wiring (Discovery Series I)
Connect link harness to sender unit on top of fuel pump. (Arrow in illustrations)
Connect round end of adapter harness to the round 3 pin plug of the original vehicle electrical harness.

WARRANTY

Normal warranty policy applies.
