Neutral/Drive Switch Monitoring

For neutral/drive switch monitoring information see Fig 1 -Fig 5 .

NOTE: This monitor covers information for DTC P1514, P1516 and P1517.

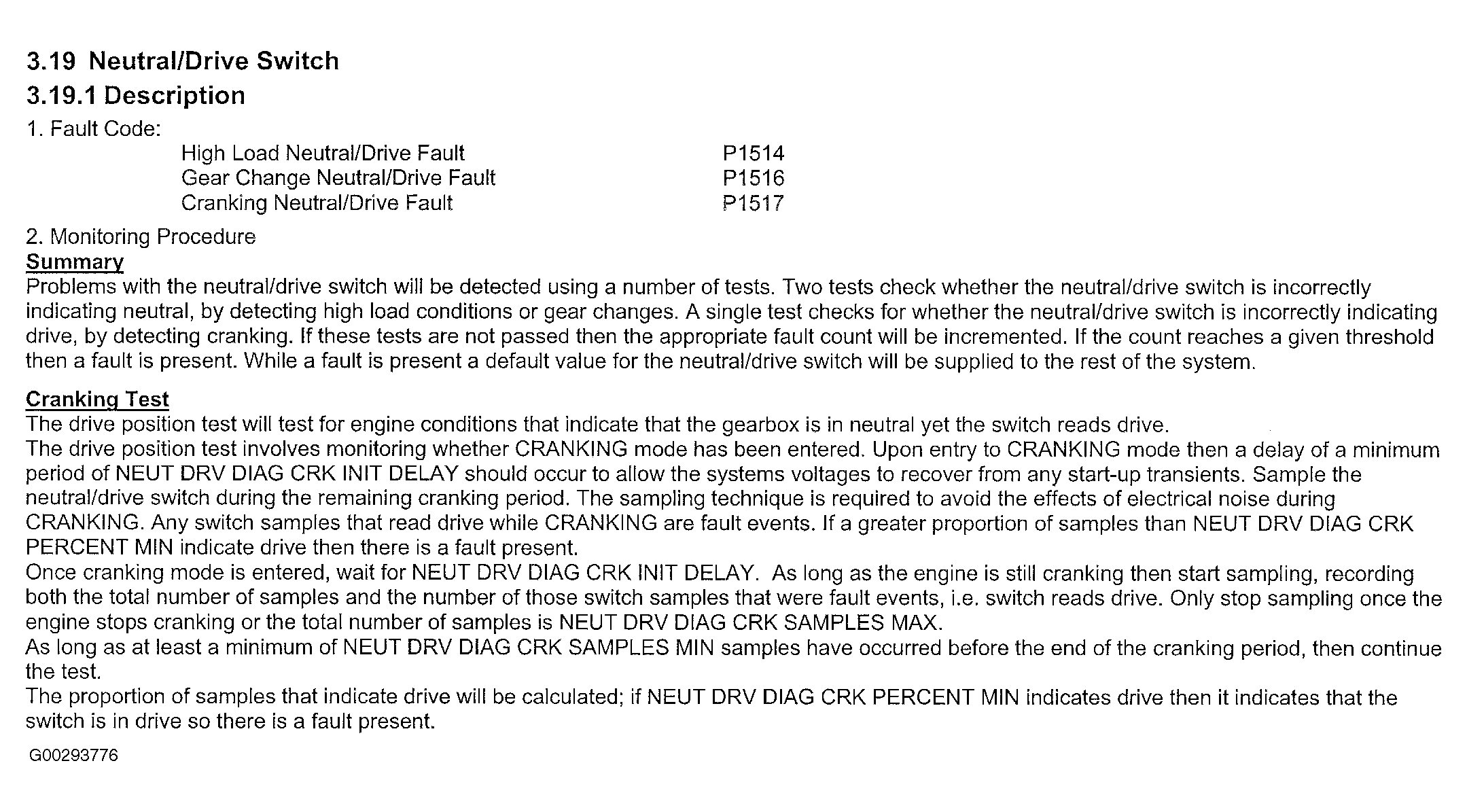

Fig 1: Neutral/Drive Switch Monitoring Description (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

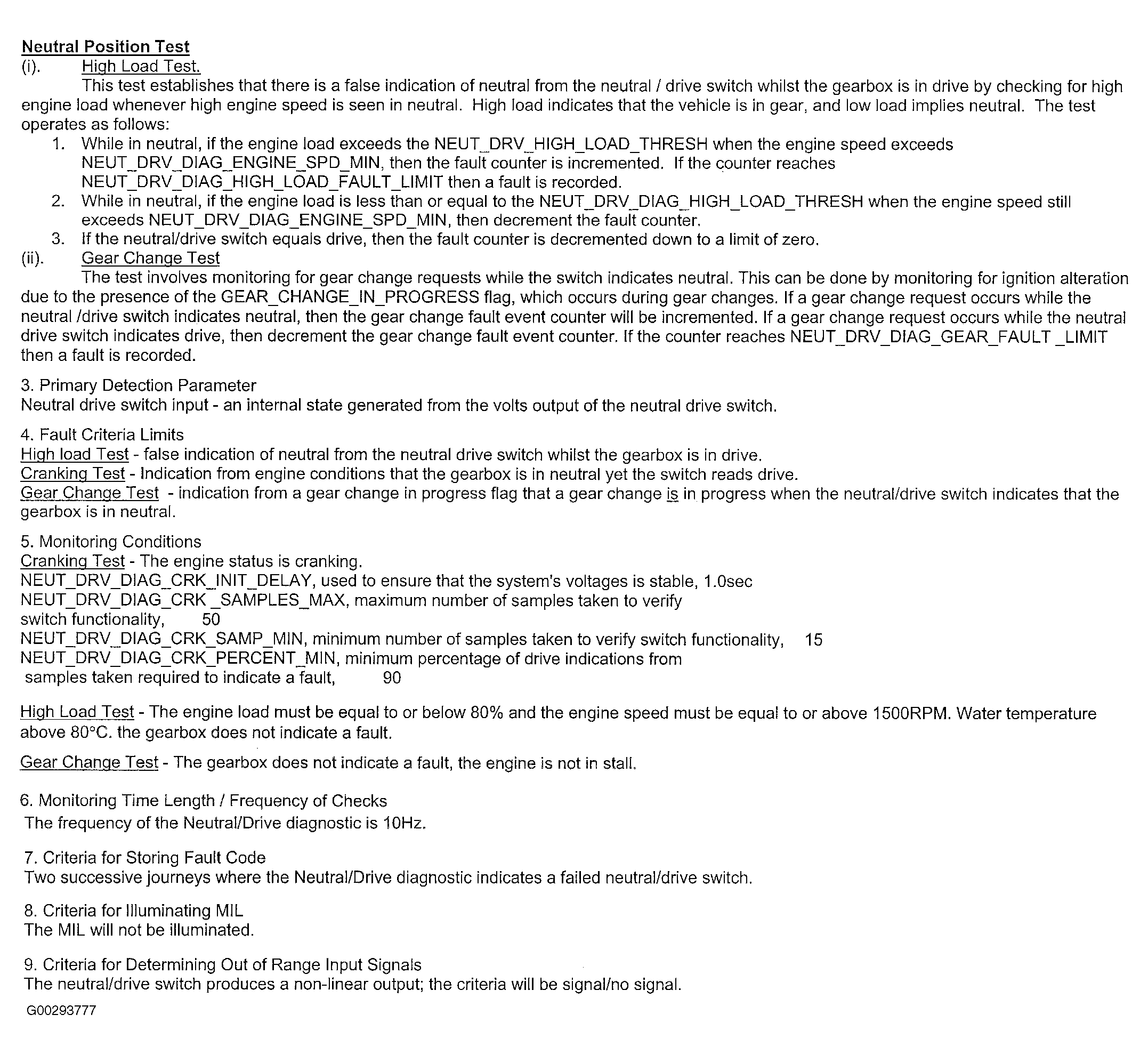

Fig 2: Neutral/Drive Switch Monitoring Description (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

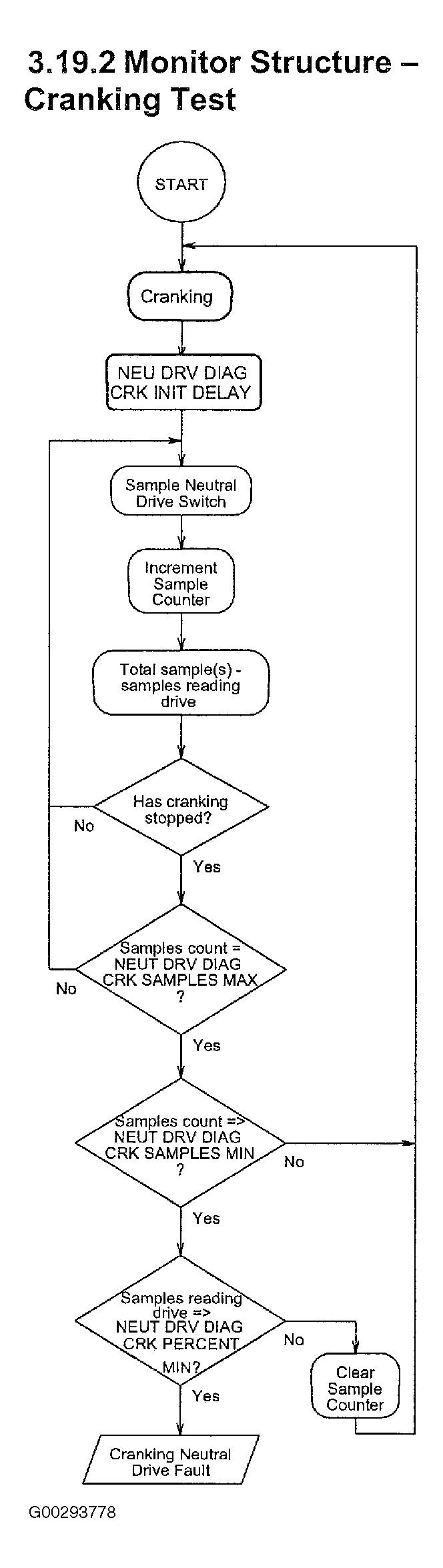

Fig 3: Neutral/Drive Switch Monitoring Structure (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

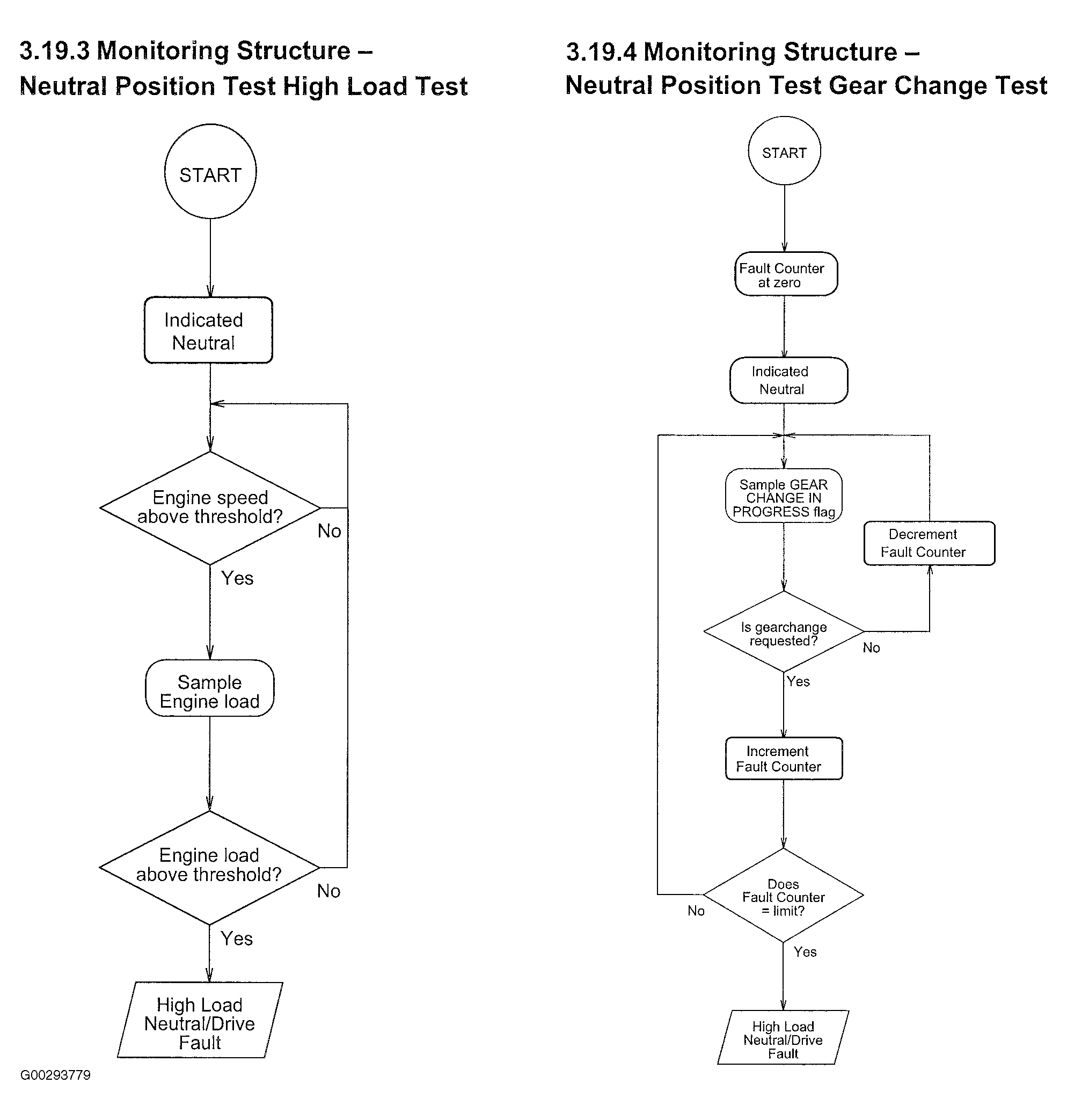

Fig 4: Neutral/Drive Switch Monitoring Structure (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

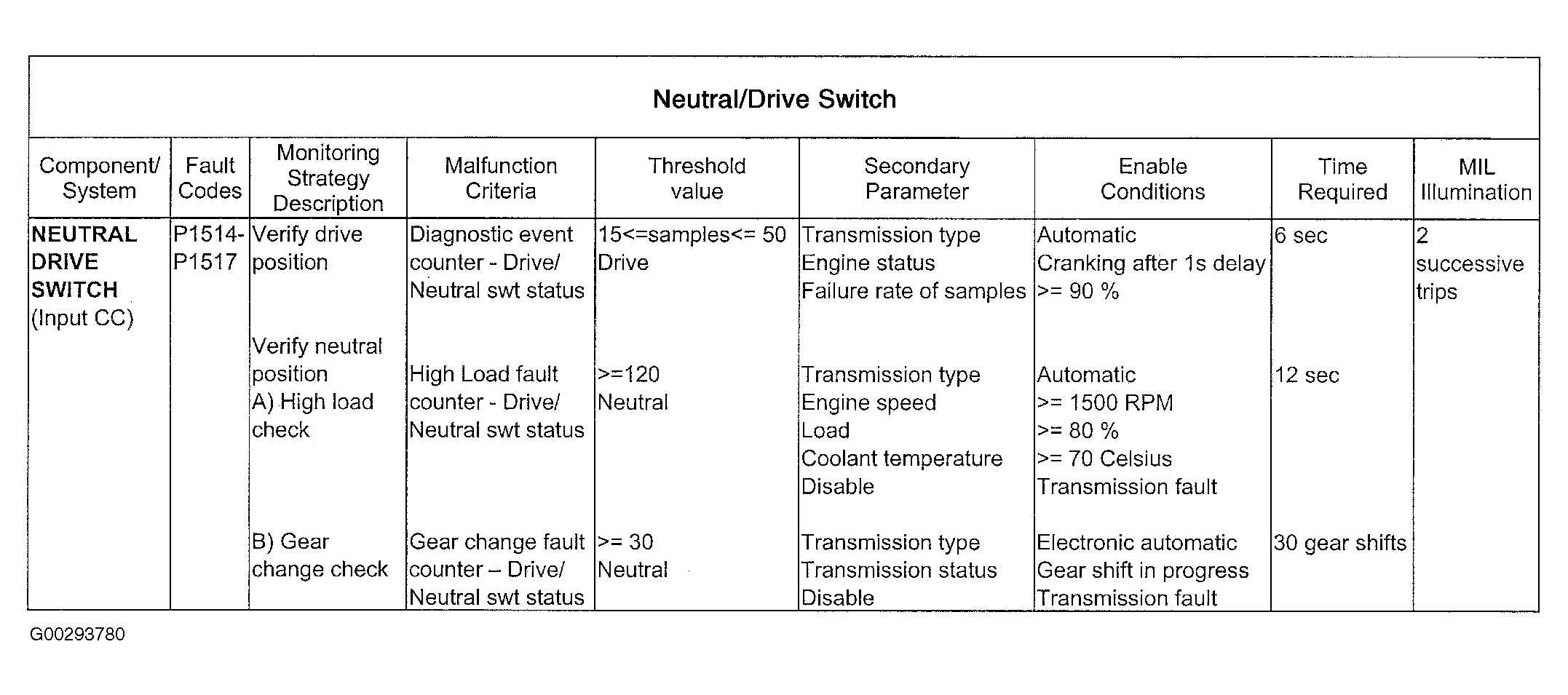

Fig 5: Neutral/Drive Switch Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
