Throttle Position Sensor Monitoring

For throttle position sensor monitoring information see Fig 1 -Fig 3 .

NOTE: This monitor covers information for DTC P0121-P0123.

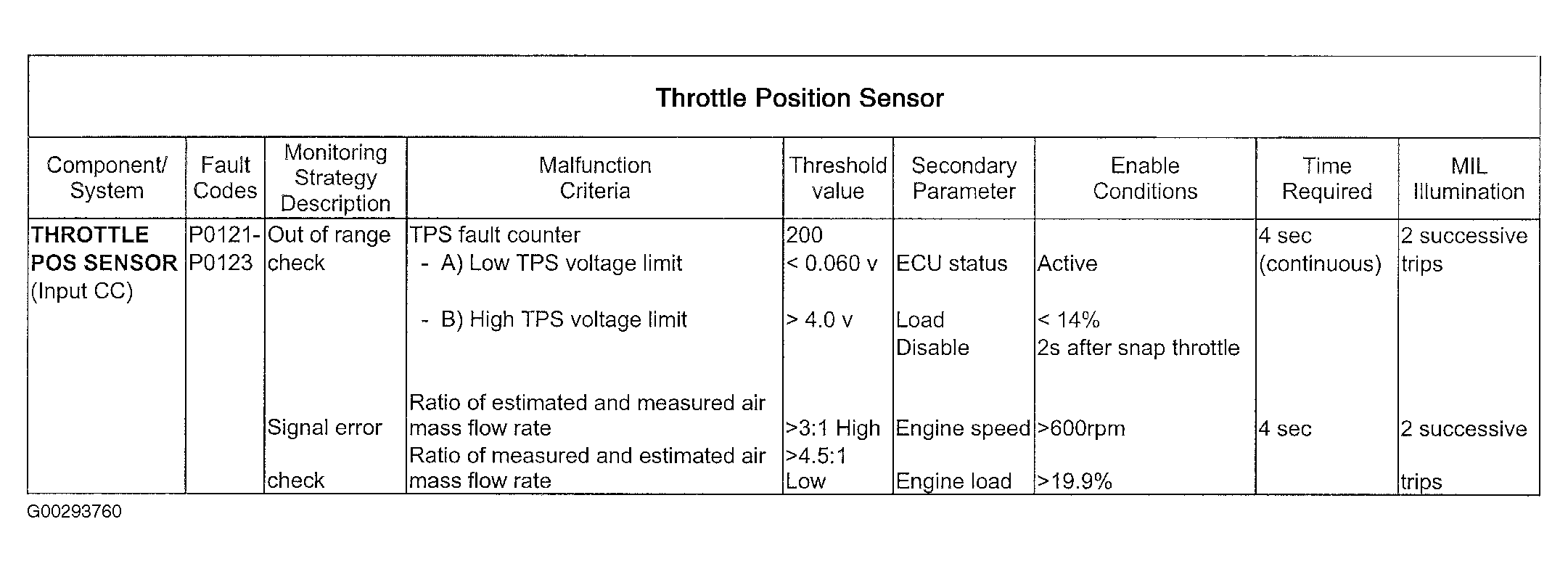

Fig 1: Throttle Position Sensor Monitoring Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: Throttle Position Sensor Monitoring Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.

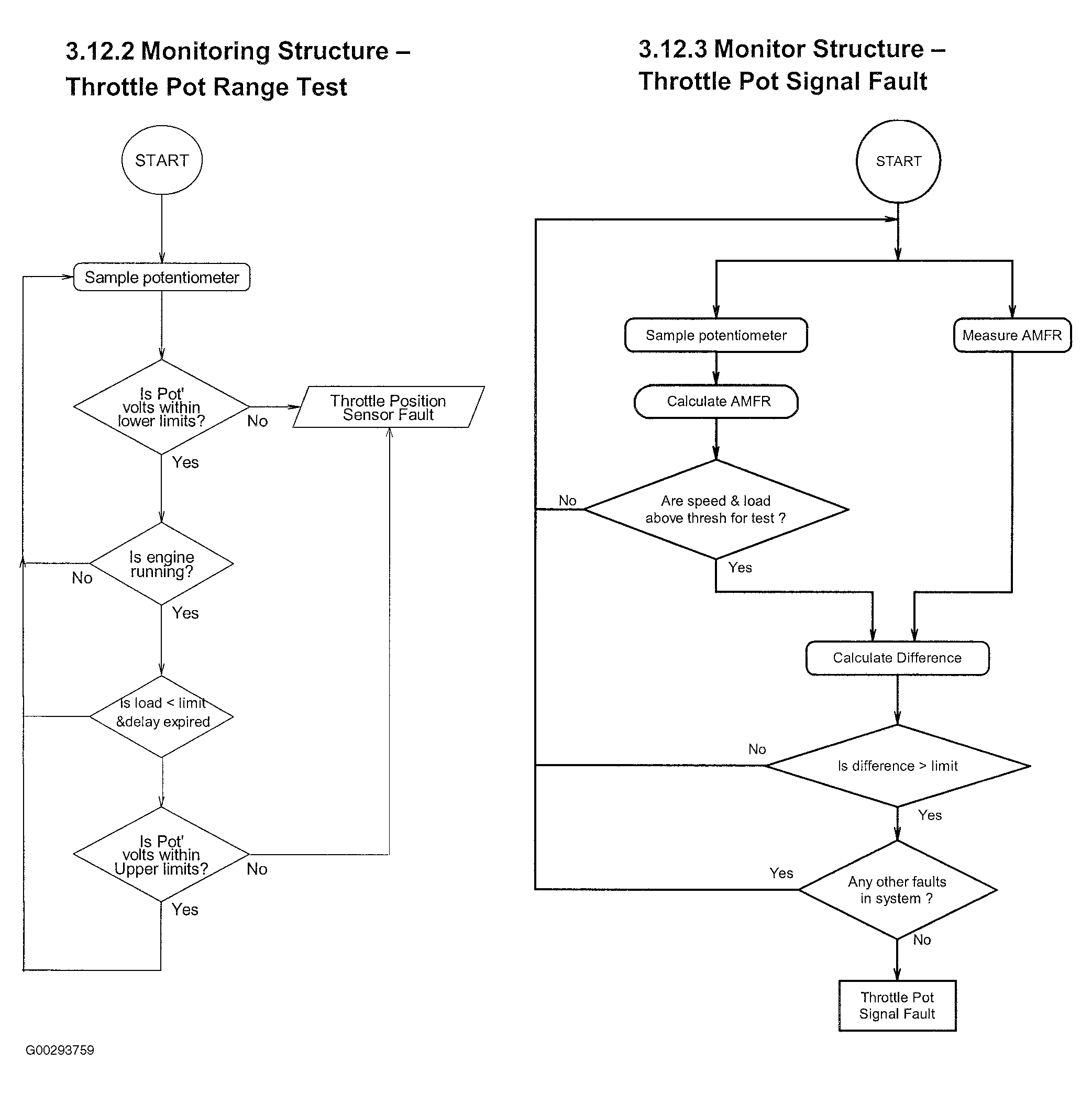

Fig 3: Throttle Position Sensor Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
