Electric windows block diagram
Electric windows block diagram

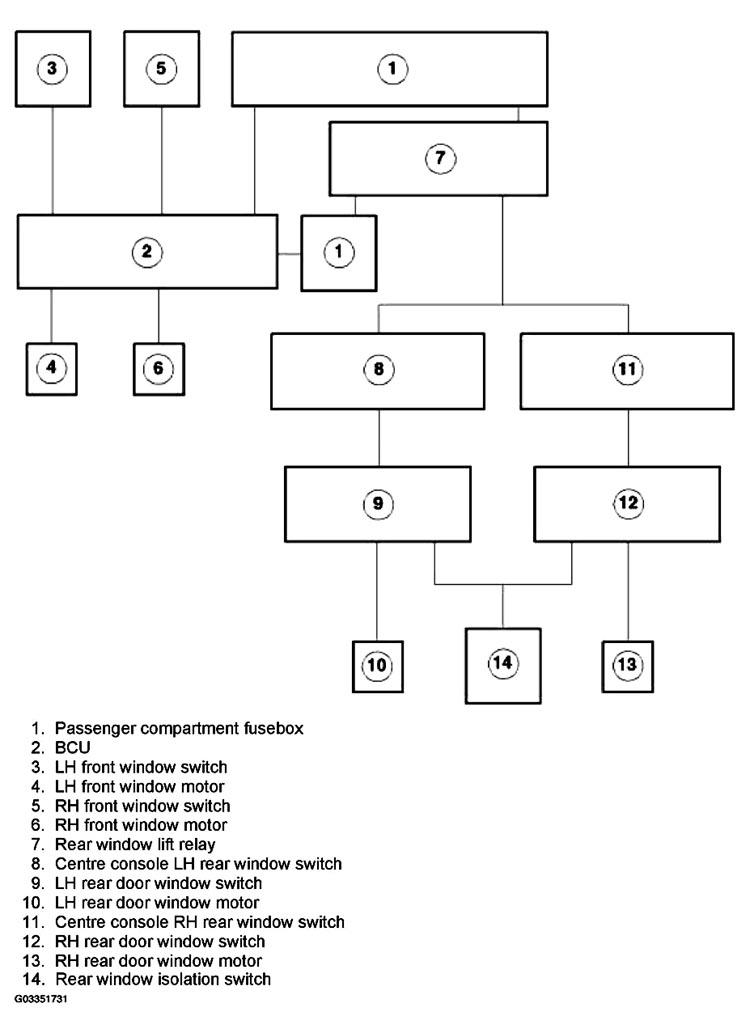

Fig 1: Identifying Electric Windows Block Diagram
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
