Modulator Unit - Abs: Refit
- Position mounting rubbers to modulator.
- Position modulator to mounting bracket, tighten nuts to 9 Nm (7 Ft. lbs.).
- Clean brake pipe unions.

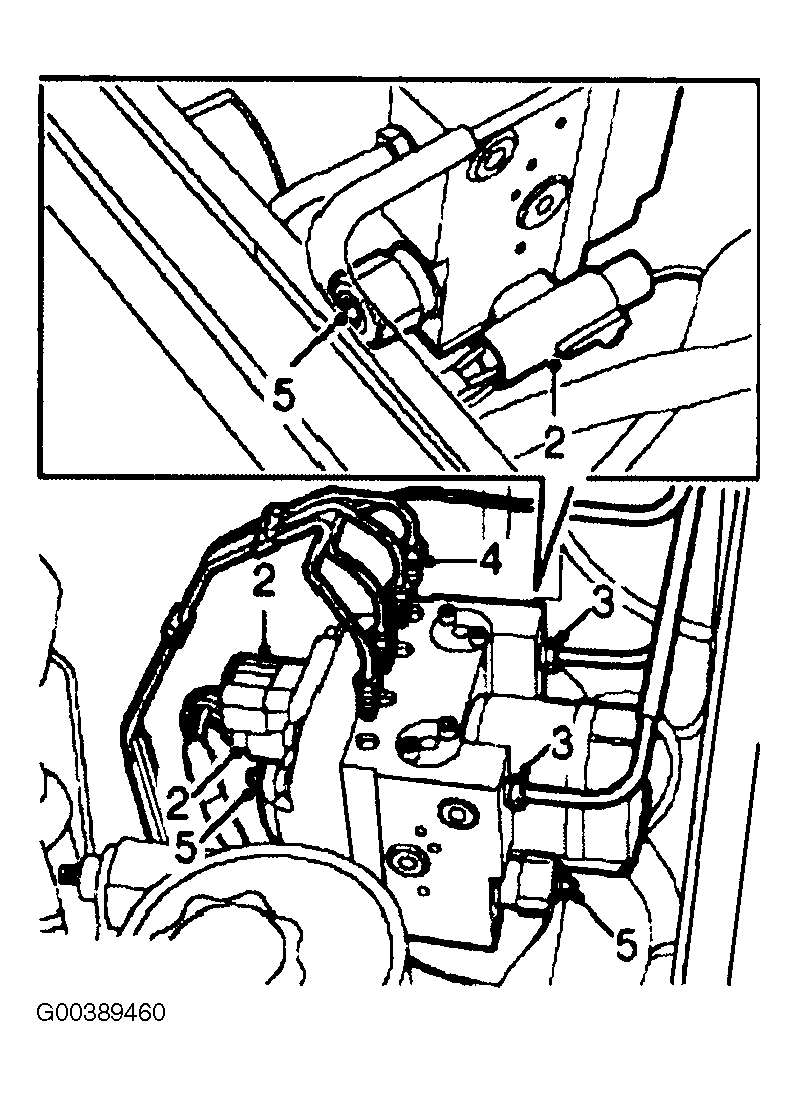

- Connect brake pipe unions to modulator ensuring pipes are connected to their correct ports. See Figure.
- Tighten 13 mm unions to 22 Nm (16 Ft. lbs.) and 11 mm unions to 14 Nm (10 Ft. lbs.).
- Connect multiplugs to modulator.
- Bleed brakes. See BLEEDING BRAKE SYSTEM .
- To ensure correct operation, the ABS system MUST be tested using Textbook/T4.
