Engine Compartment Fuse Box
NOTE:

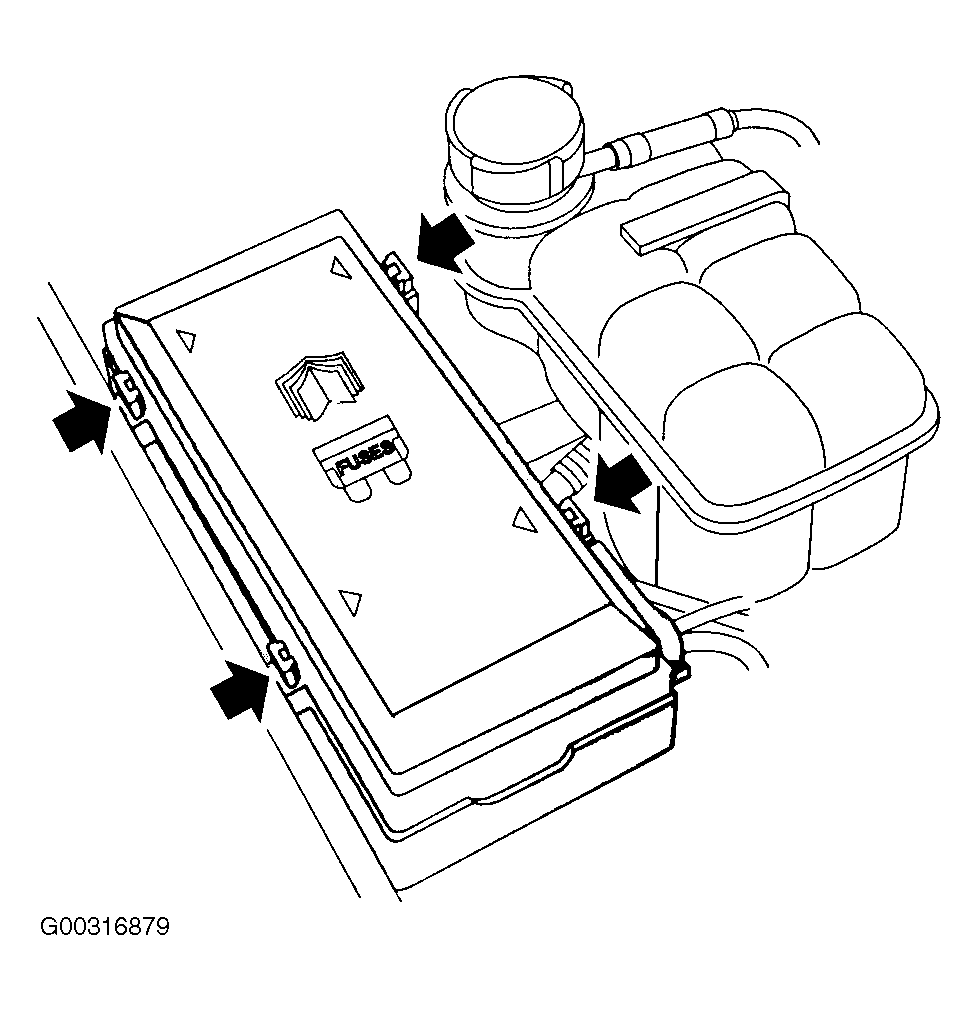

Engine compartment fuse box is located on passenger's side of engine compartment, next to coolant reservoir. See Fig 1.

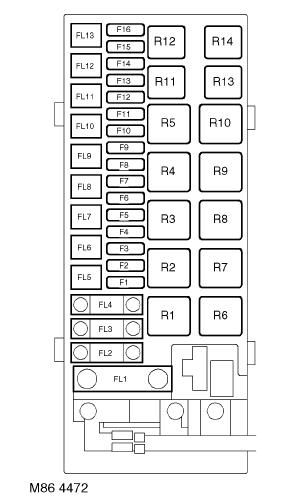

Engine Compartment Fuse Relays
| Relay | System |
|---|---|
| 1 | Fuel Pump |
| 2 | Starter |
| 3 | Headlamp Powerwash |
| 4 | Cooling Fan |
| 5 | Self Leveling/ABS (SLABS) |
| 6 | Glowplugs - Diesel |
| 7 | Auxiliary circuits |
| 8 | Heated Front Seats |
| 9 | Main Relay |
| 10 | Anti-Lock Braking System (ABS) |
| 11 | A/C Compressor Clutch |
| 12 | Front Fog Lights |
| 13 | Horns |
| 14 | Active Conering Enhancement (ACE) |
Engine Compartment Fuse Box Fuses
| Fuse | System | |
|---|---|---|
| 1 | 30A | Injectors |
| 2 | 15A | Engine management system |
| 3 | 15A | Front fog lights |
| 4 | 20A | Headlight washers |
| 5 | 40A | Cooling fans |
| 6 | 10A | Air conditioning |
| 7 | 40A | Heated front screen (LH) |
| 8 | 40A | Heated front screen (RH) |
| 9 | 25A | Trailer lights |
| 10 | 30A | Fuel pump |
| 11 | 30A | ABS valve |
| 12 | 20A | Automatic gearbox |
| 13 | 10A | Body Control Unit (BCU) |
| 14 | 15A | Direction indicators, hazard lights |
| 15 | 15A | Active cornering enhancement (ACE) |
| 16 | 10A | Horn |
