Engine Controls - Service & Adjustment Specifications
›
Ignition System
›
Firing Order
›
Firing Order (Discovery)
Firing Order (Discovery)

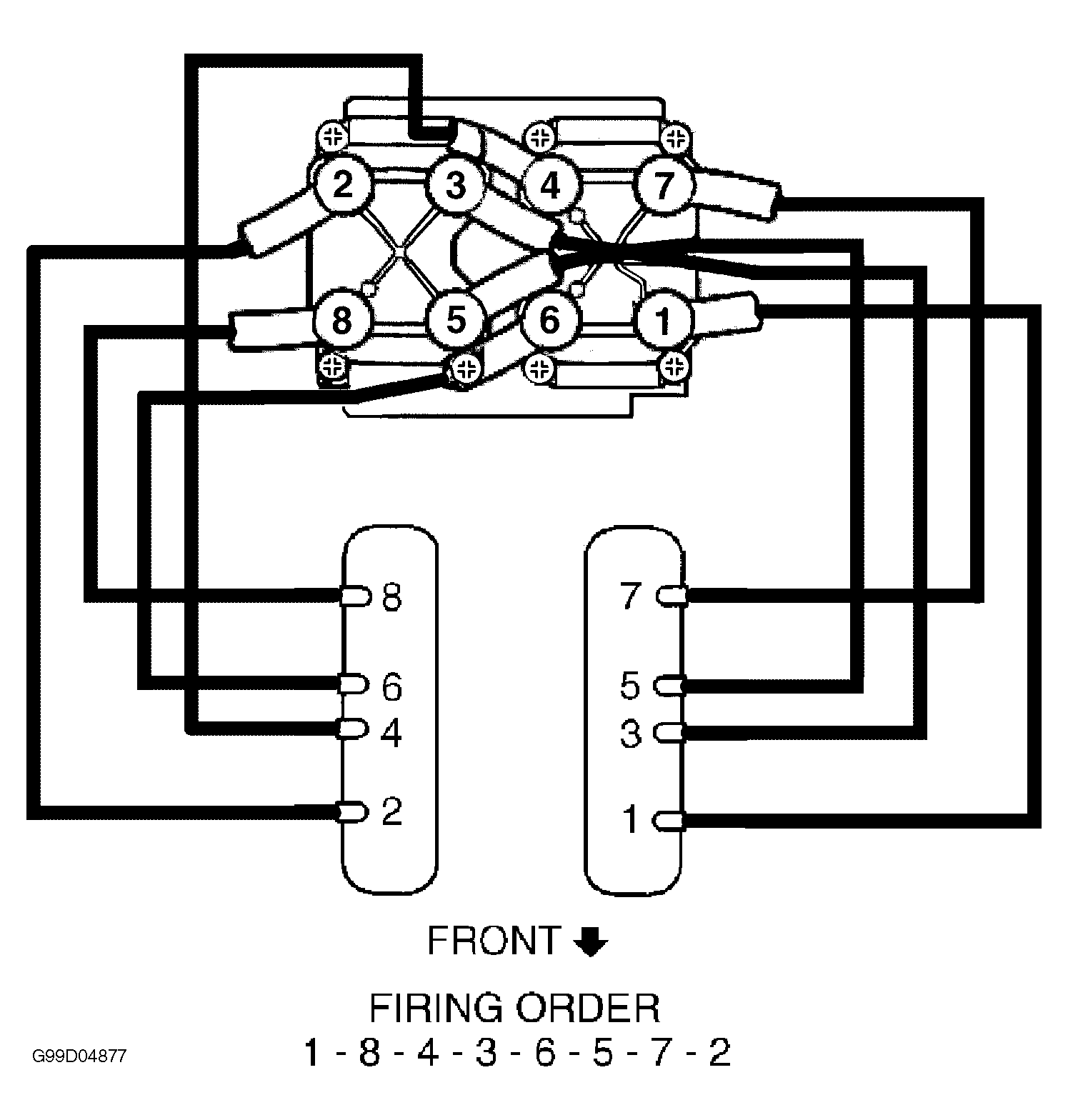

Fig 1: Firing Order & Coil Packs (Discovery)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
