Engine Controls - System & Component Testing
›
Component Locations
Component Locations

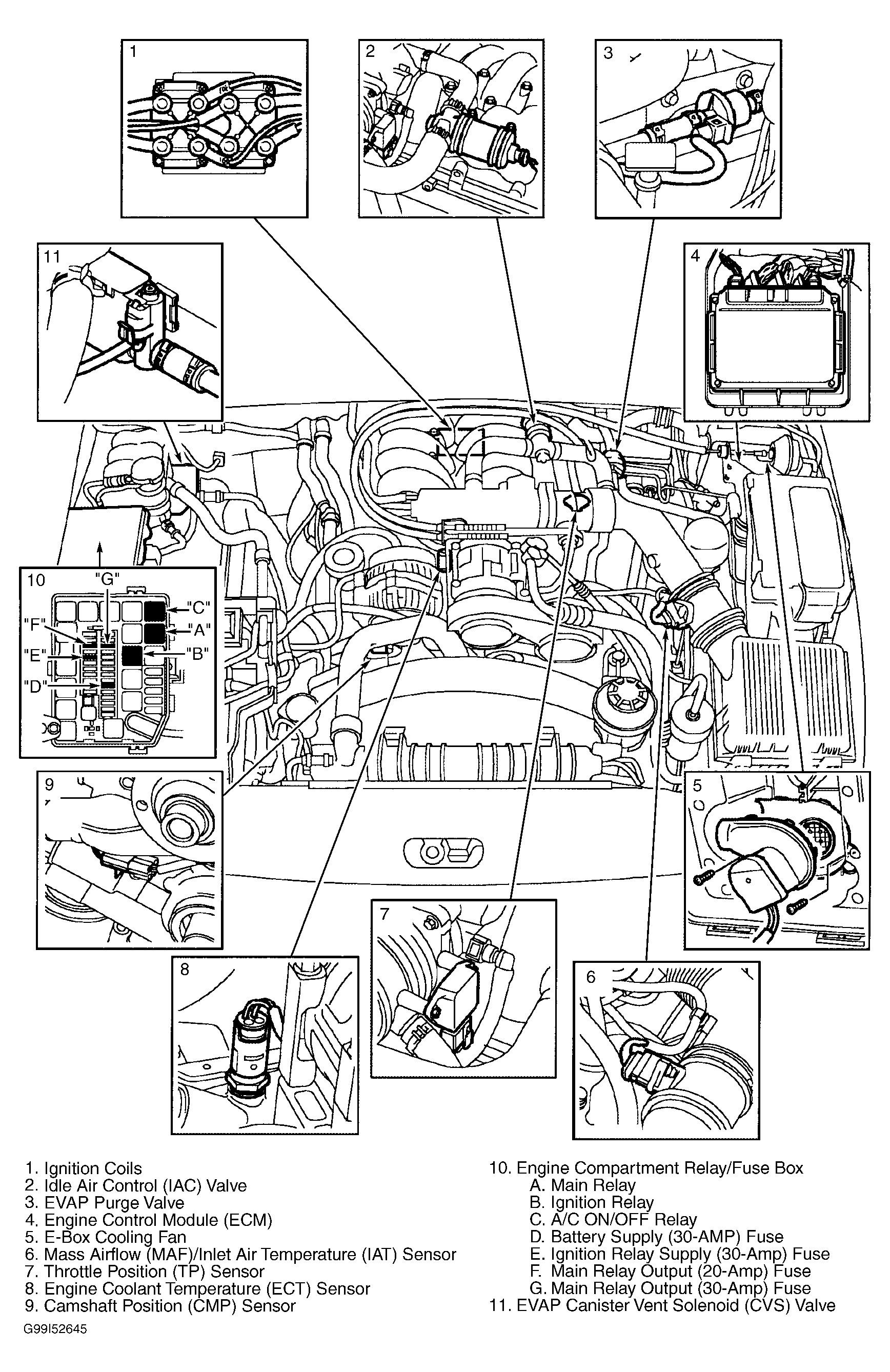

Fig 1: Locating Computerized Engine Components (Discovery - GEMS)
Courtesy of LAND ROVER NORTH AMERICA, INC.

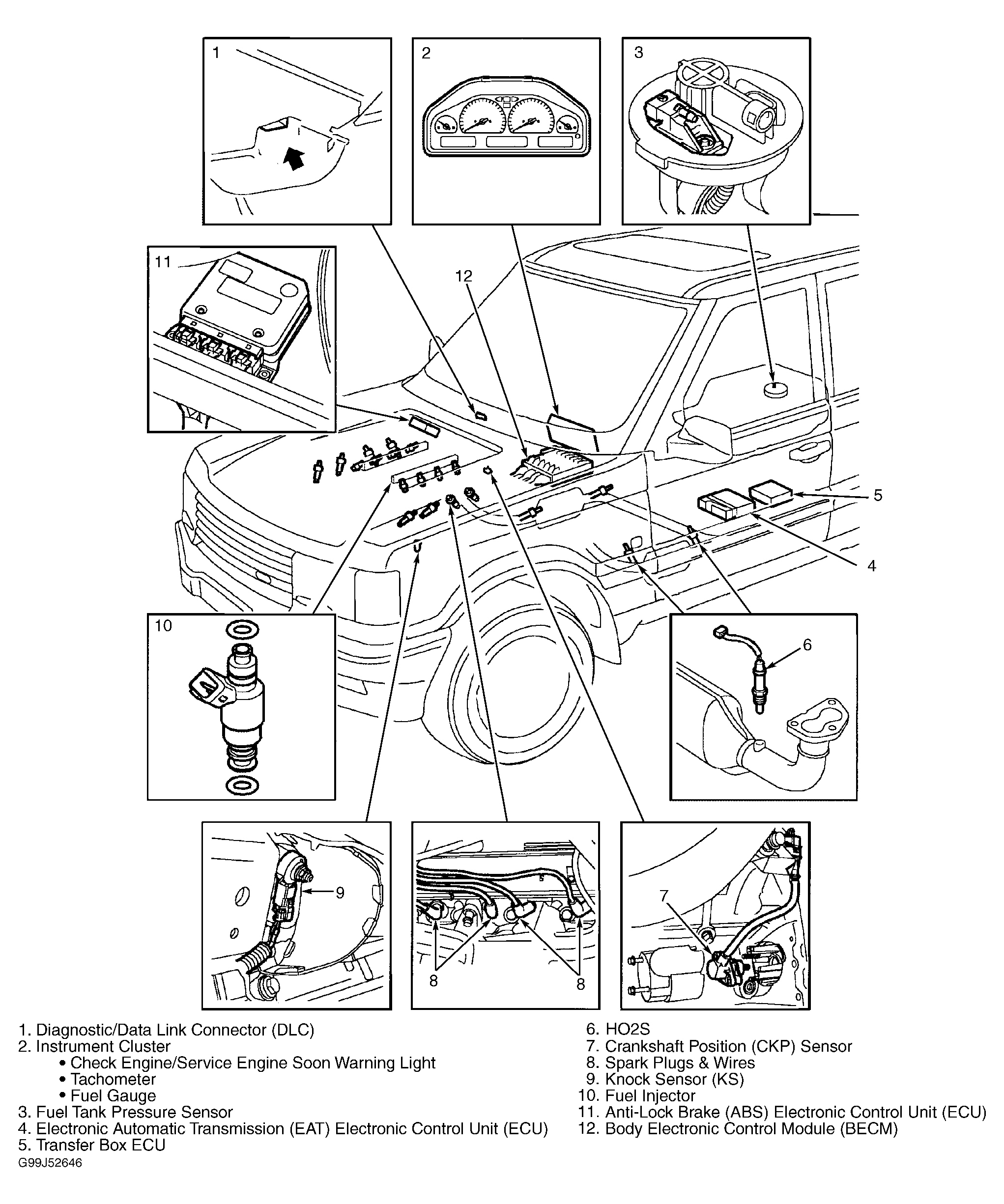

Fig 2: Locating Computerized Engine Control Components (Discovery Series II - Bosch)
Courtesy of LAND ROVER NORTH AMERICA, INC.

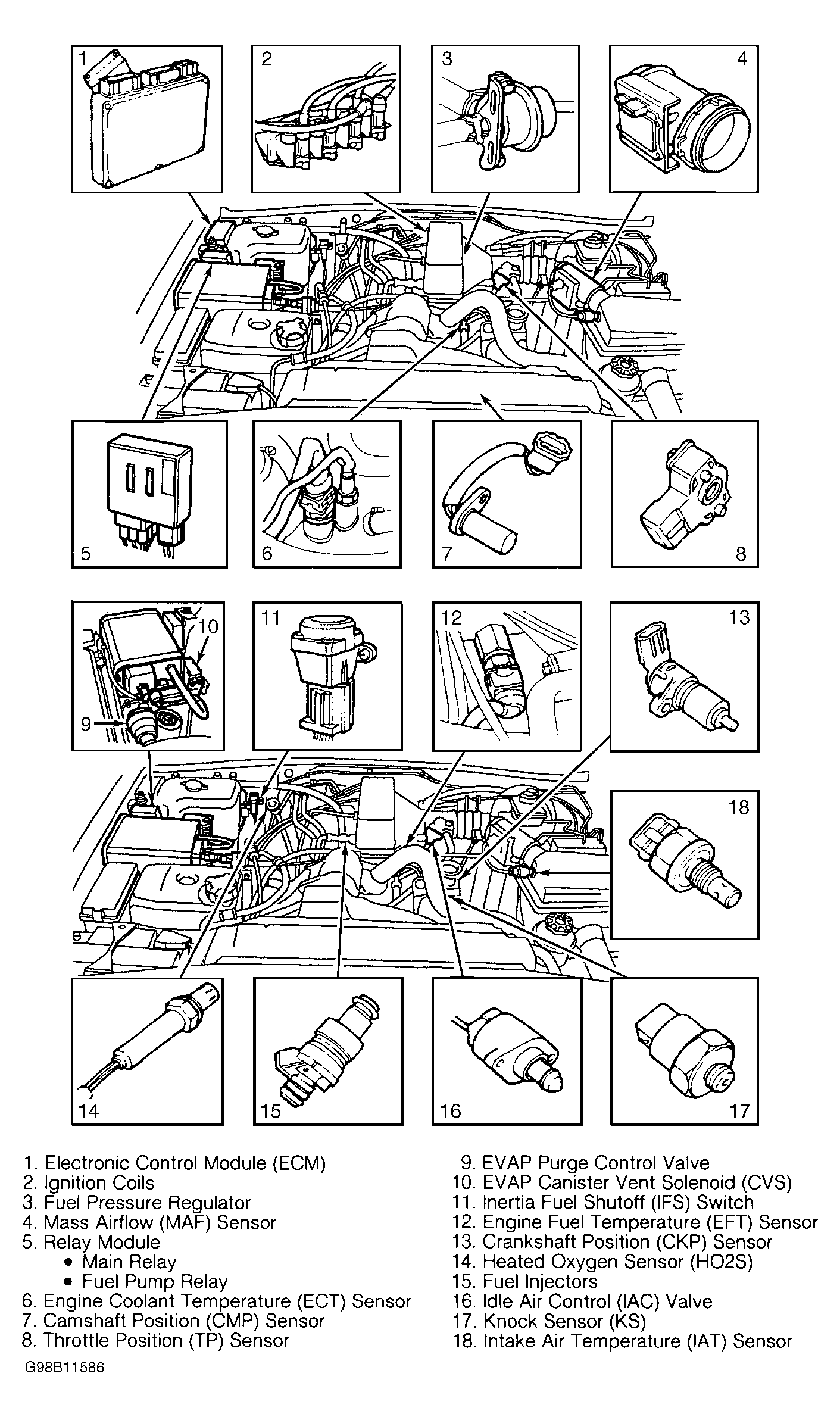

Fig 3: Locating Computerized Engine Control Components (Range Rover - Bosch - 1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

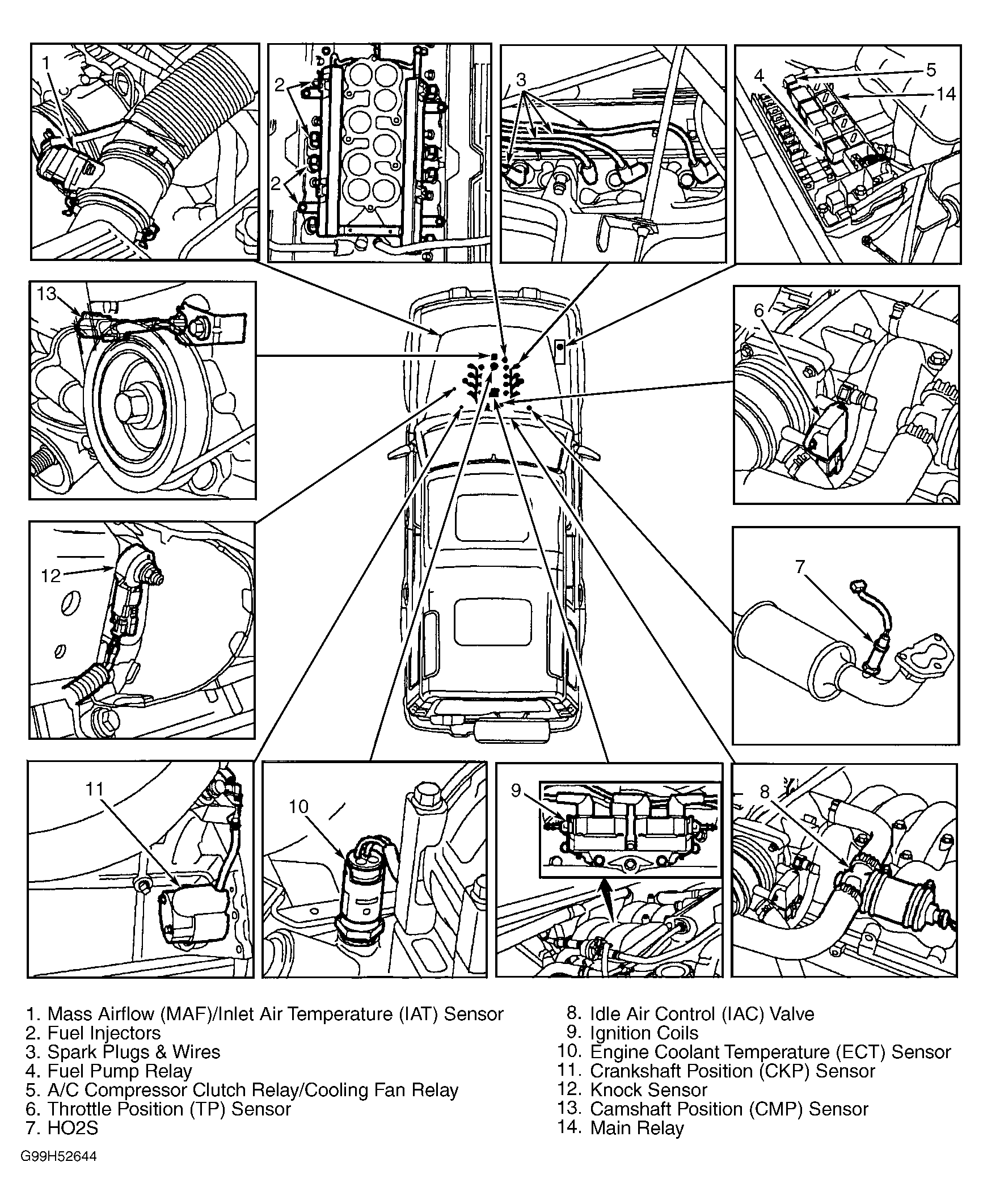

Fig 4: Locating Computerized Engine Control Components (Range Rover - Bosch - 2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
