Connector Identification

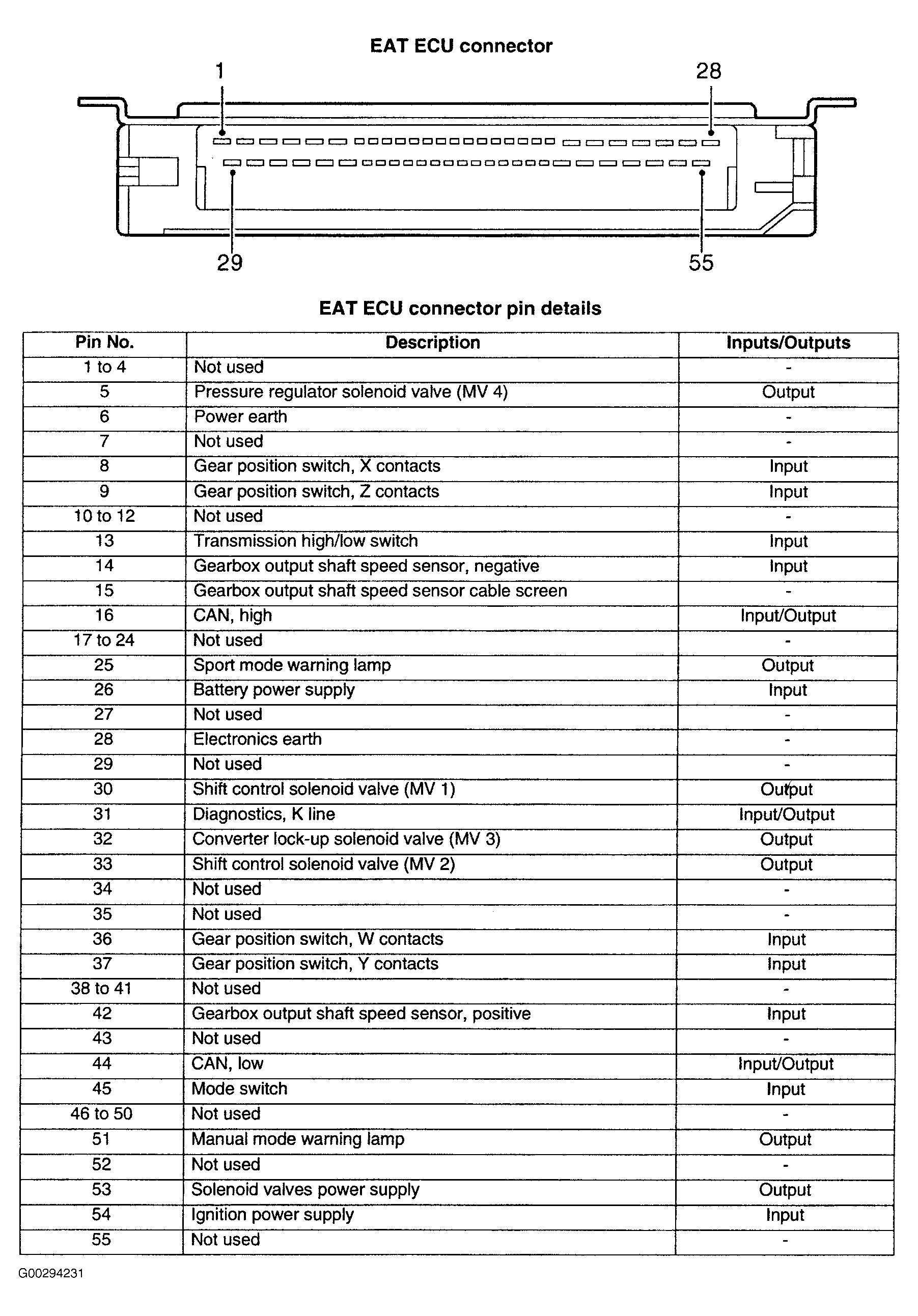

Fig 1: Identifying Electronic Automatic Transmission Electronic Control Unit Harness Connector Terminals

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: Identifying Gear Position Switch Harness Connector Terminals

Courtesy of LAND ROVER NORTH AMERICA, INC.
