Connector Identification
›
Navigation System
Navigation System

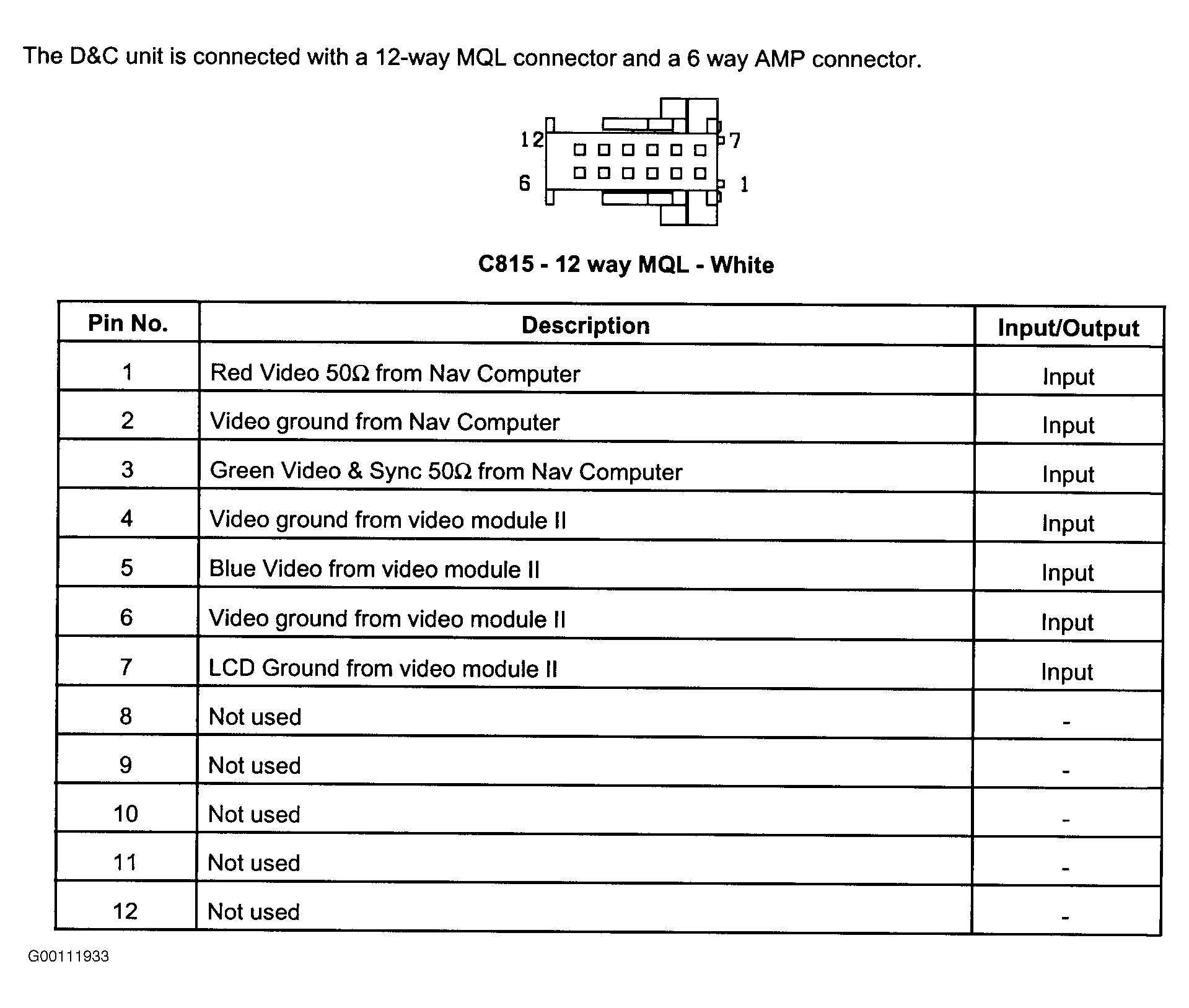

Fig 1: Identifying Connectors (1 Of 5)
Courtesy of LAND ROVER NORTH AMERICA, INC.

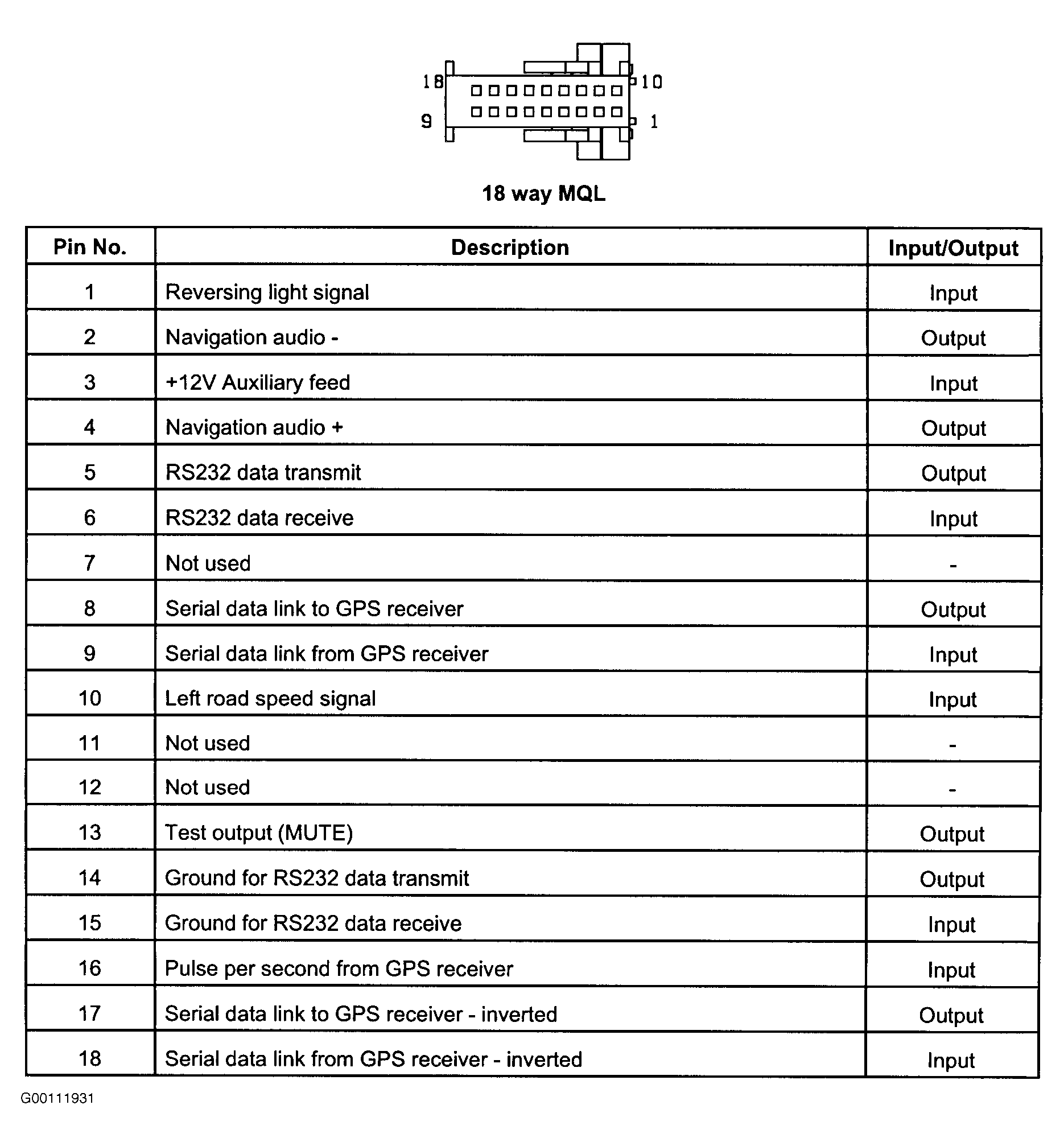

Fig 2: Identifying Connectors (2 Of 5)
Courtesy of LAND ROVER NORTH AMERICA, INC.

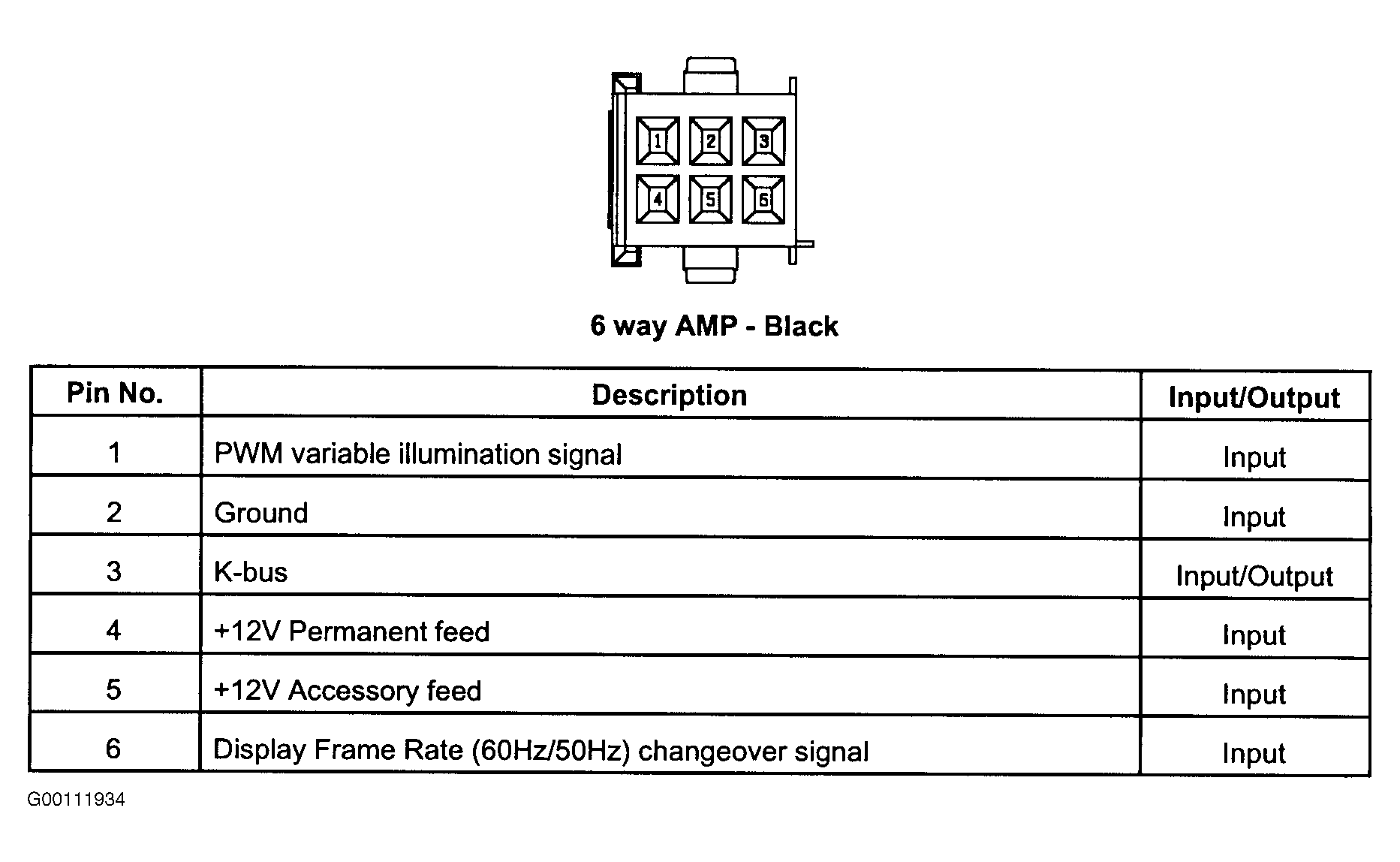

Fig 3: Identifying Connectors (3 Of 5)
Courtesy of LAND ROVER NORTH AMERICA, INC.

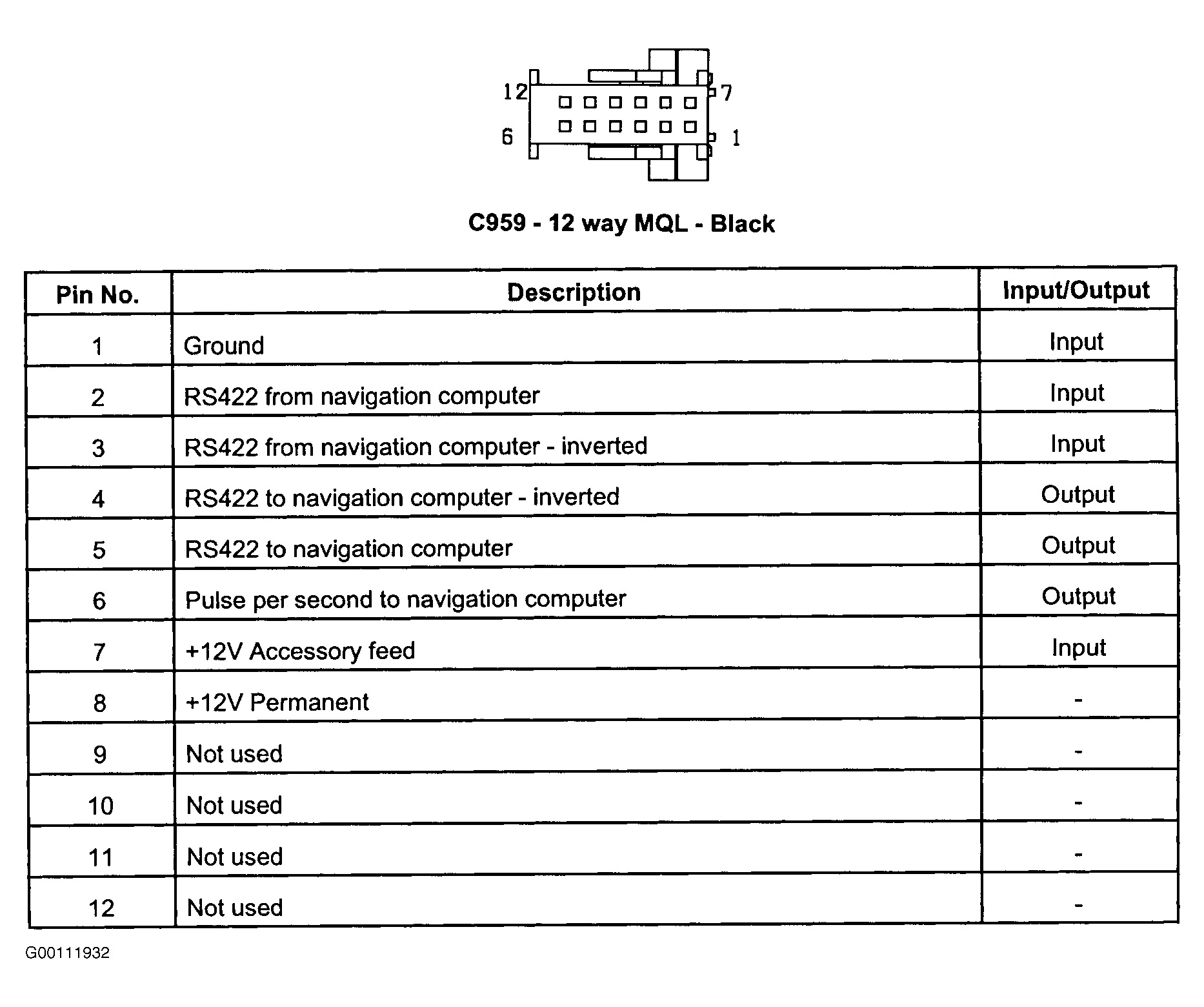

Fig 4: Identifying Connectors (4 Of 5)
Courtesy of LAND ROVER NORTH AMERICA, INC.

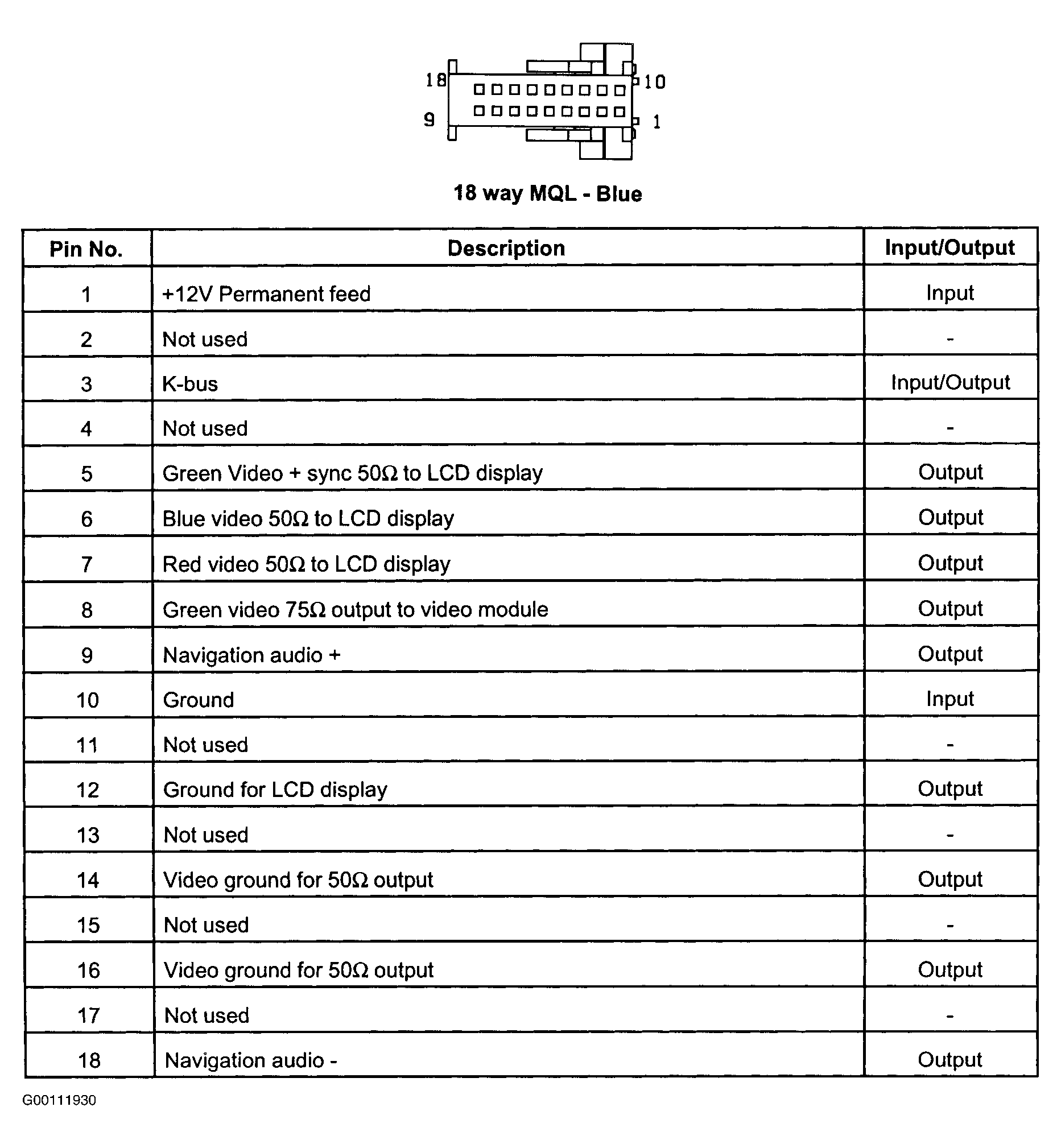

Fig 5: Identifying Connectors (5 Of 5)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
