Transmission Control Module Monitoring

For Transmission Control Module (TCM) monitoring information, see Fig 1.

NOTE: This monitor covers information for DTC P1562, P1601, P1606, P1612 and P1613.

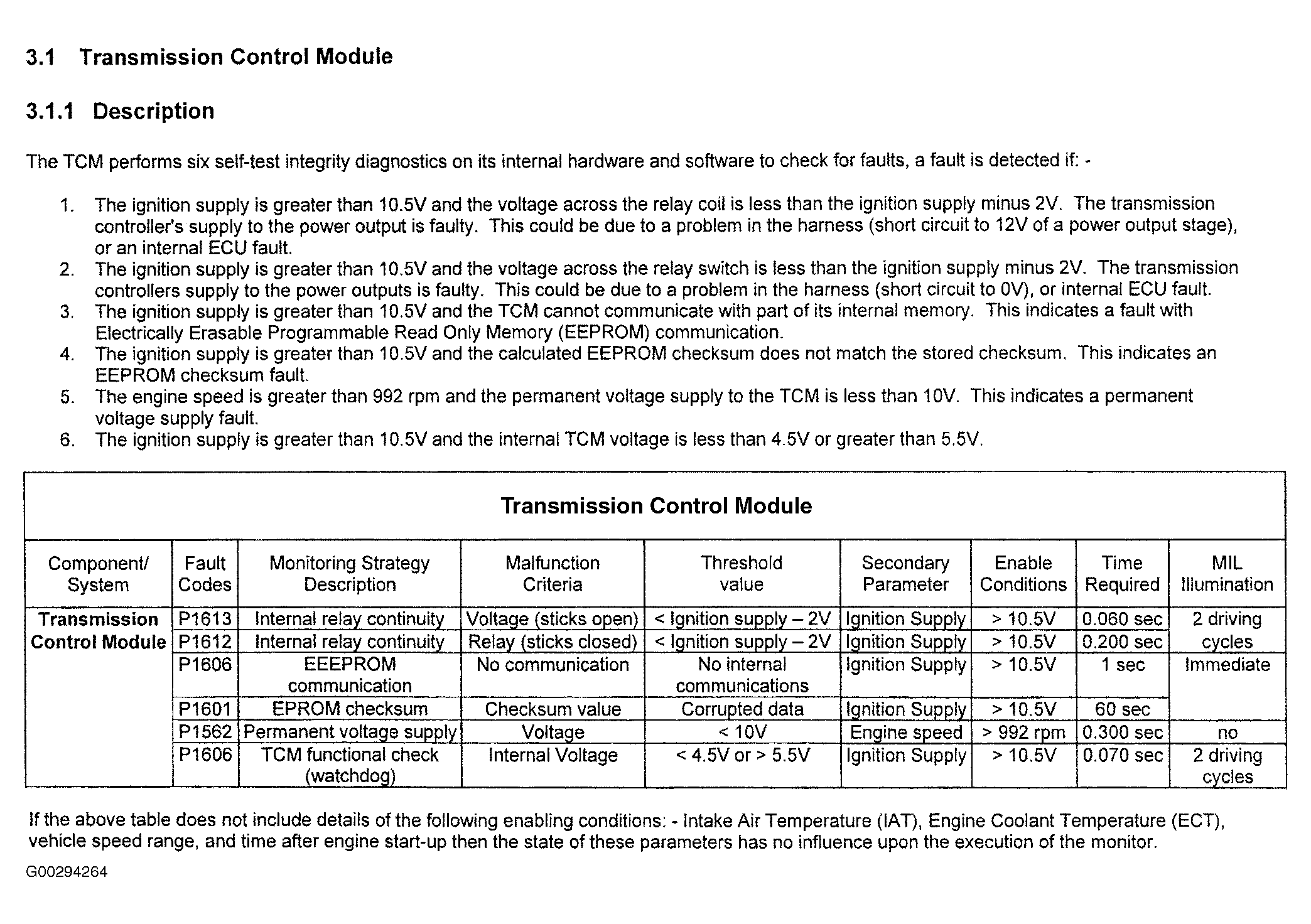

Fig 1: Transmission Control Module Monitoring

Courtesy of LAND ROVER NORTH AMERICA, INC.
