Steering Box - Check & Adjust: Check
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Land Rover Discovery, 2003 Land Rover Discovery, 2002 Land Rover Discovery, 2001 Land Rover Discovery, and 2000 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.
- Raise front of vehicle.
- Remove nut securing drag link to drop arm.

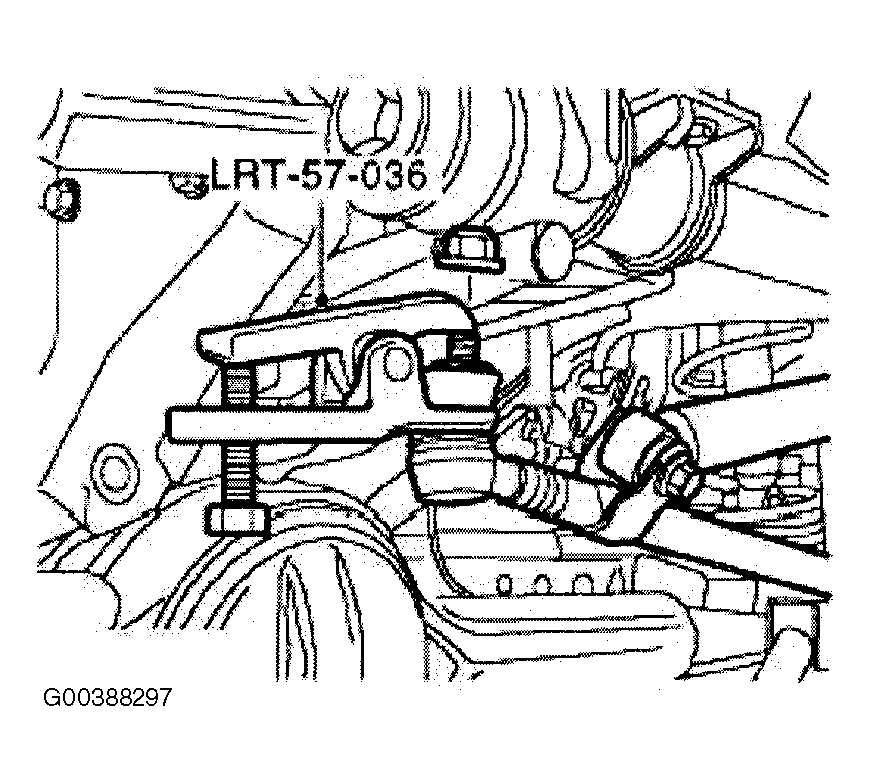

- Using LRT-57-036, break taper joint and release drag link. See Fig 1.
- Ensure steering is centralized.
- With the drop arm held, check for rotational movement at the intermediate shaft universal joint. If any movement exists, the steering box requires adjusting.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
