Maintenance Fluid Specifications (10/03/01/NAS)
Publication date: 2002-10-30Reference number: 10/03/01/NAS
Supersedes refnos: 10/01/02/NAS, 10/01/03/NAS
MAINTENANCE FLUID SPECIFICATIONS
TECHNICAL SERVICE BULLETIN
Reference Number(s): 10/01/03/NAS, Date of Issue:
October 31, 2002
Superceded Bulletin(s): 10/01/02/NAS, Date of Issue:
August 9, 2002
| LAND ROVER: | All Vehicles |
| REFERENCE: | Replaces 10/01/02/NAS |
| ISSUE: | 1 |
| SECTION: | Maintenance |
| AFFECTED VEHICLES: | All Vehicles |
NOTE:
This Bulletin replaces TIB 10/01/02/NAS.
SITUATION
SPECIFICATION FOR VEHICLE FLUIDS
Because of the unique nature and limited availability of some Land Rover fluids and lubricants, confusion regarding fluid specifications and applications can exist. The current listing contains a number of brand names and several Land Rover-specific fluids with part numbers.
NOTE:
Recently Land Rover has announced increased cooperation with Castrol. In the future, Castrol product names will become the recommended or required fluids and lubricants used on Land Rover vehicles.
RESOLUTION
USE CORRECT FLUIDS FOR ALL SYSTEMS

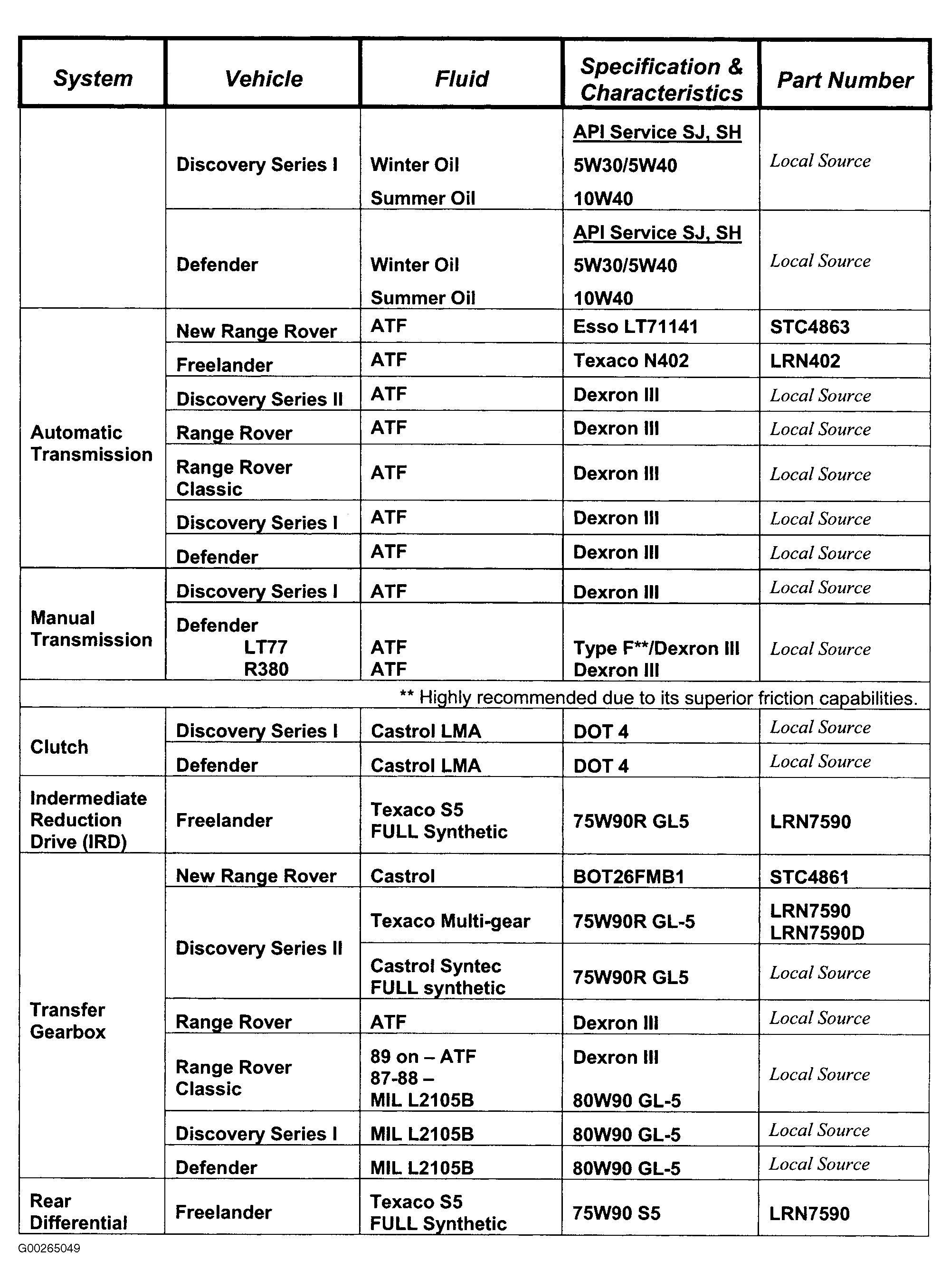

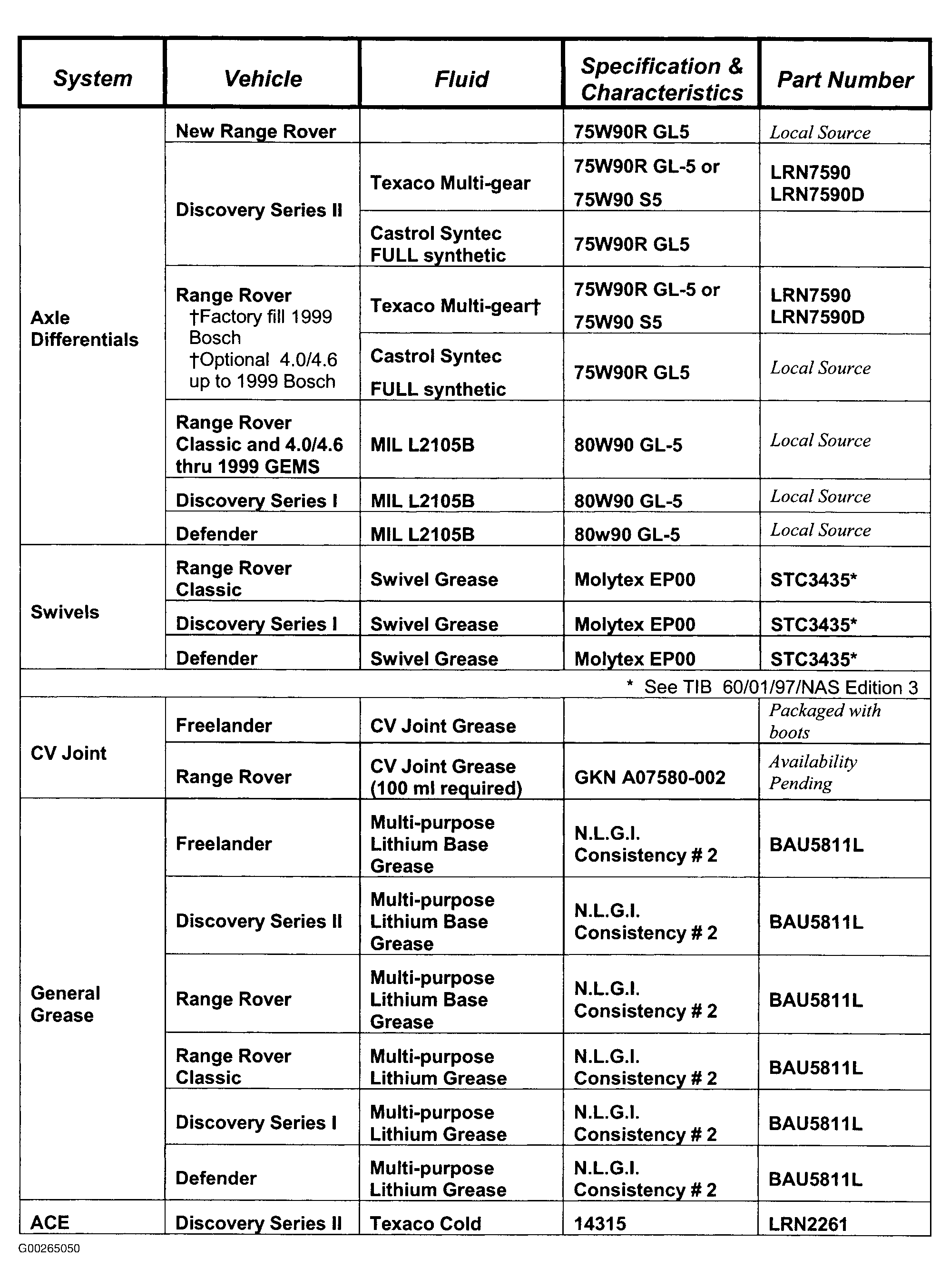

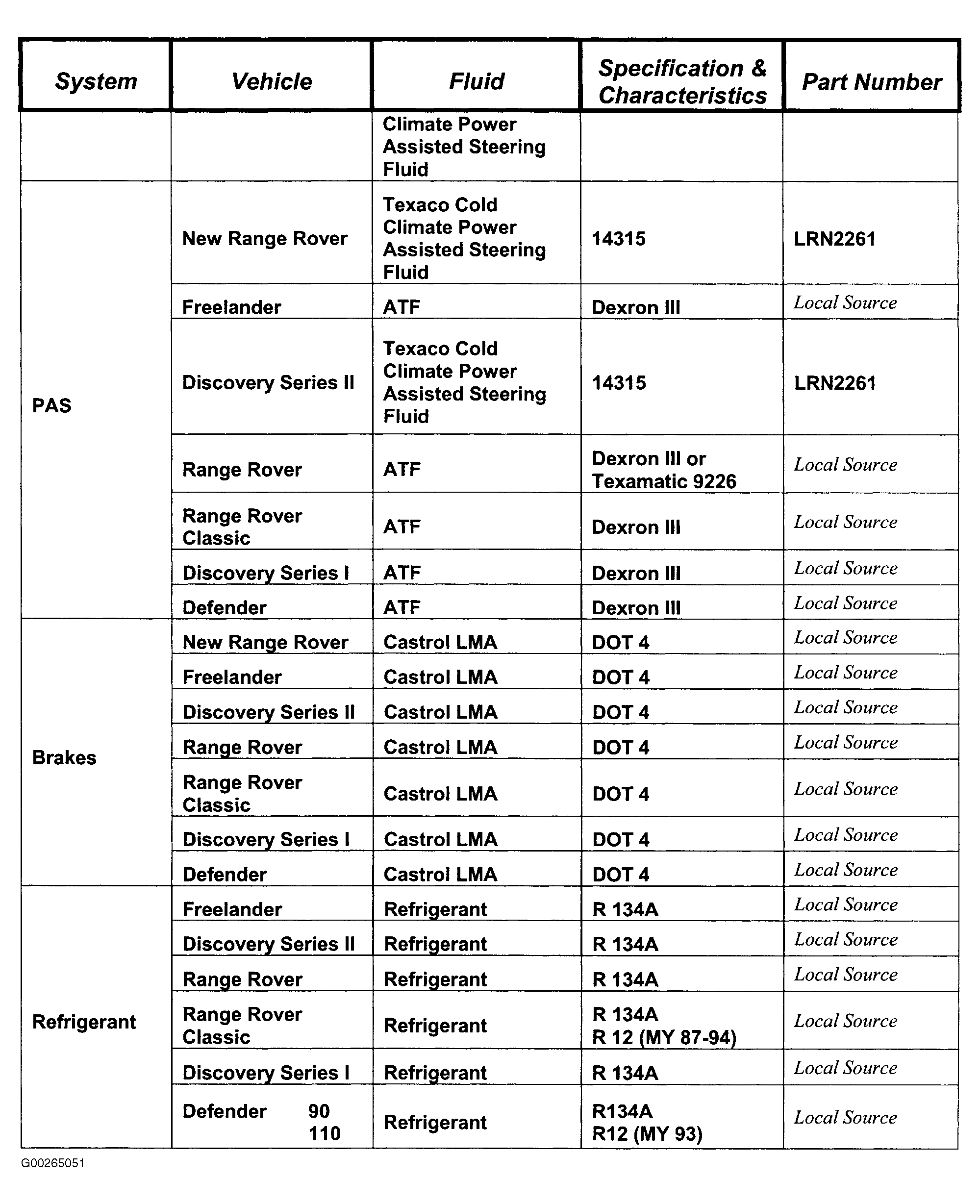

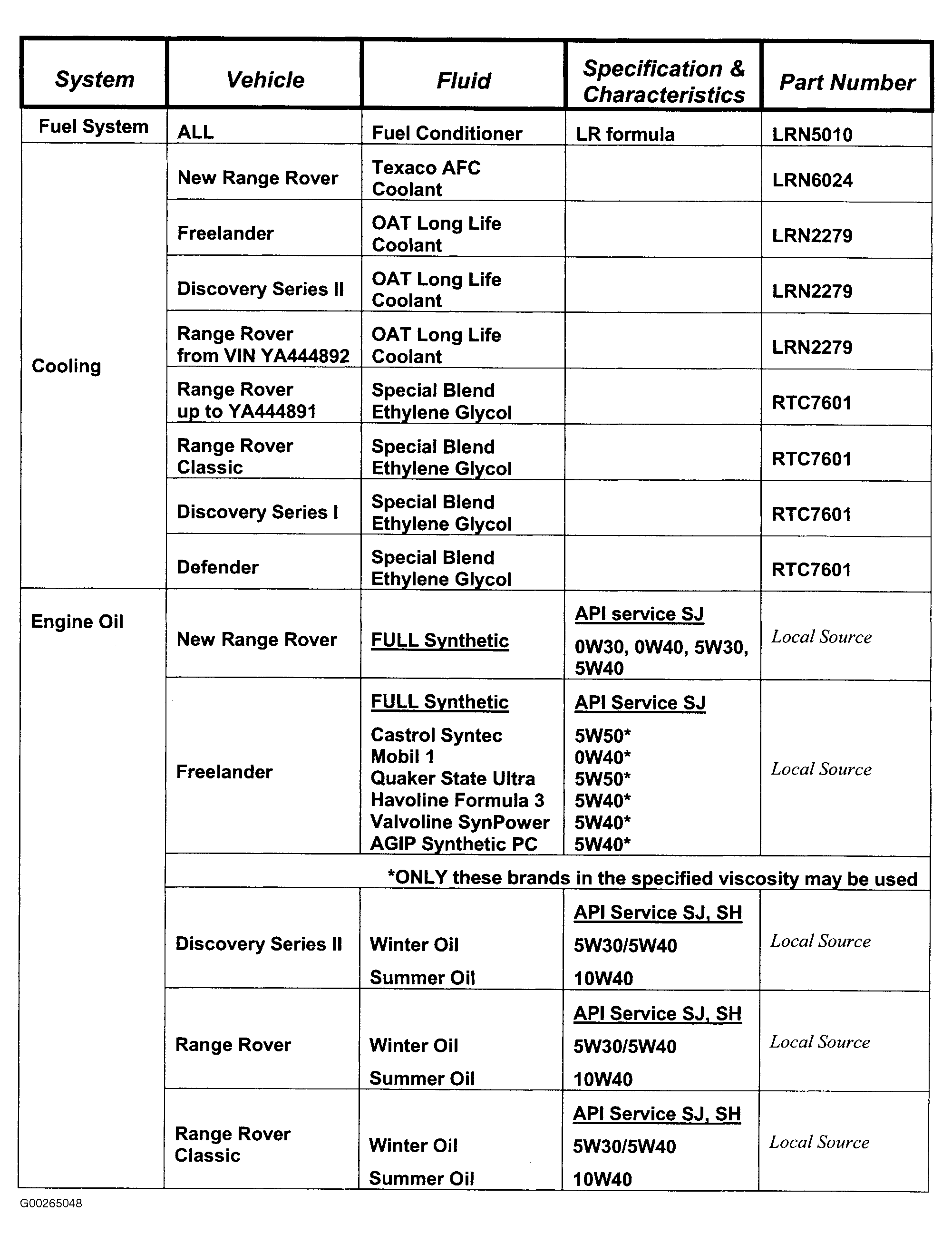

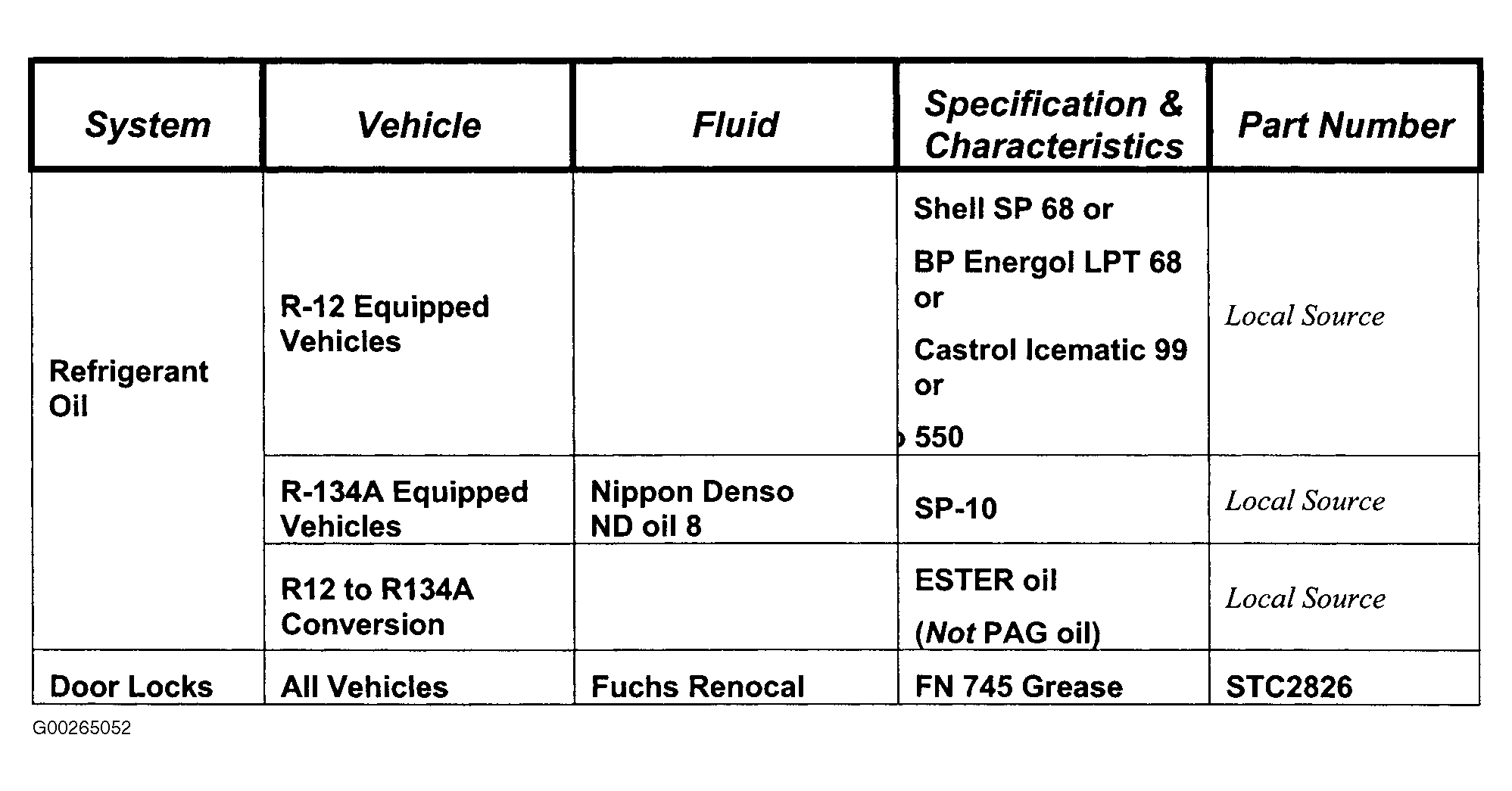

The table of applications and the part number listings are provided to ensure use of the correct fluid specification.
PARTS INFORMATION
PARTS INFORMATION
| Part Number | Description | Quantity |
|---|---|---|
| STC2826 | Fuchs Renocal | --- |
| RTC7601 | Ethylene Glycol (green) Coolant | --- |
| LRN6024 | AFC (blue) Coolant | --- |
| LRN2279 | OAT (red) Coolant | --- |
| STC3435 | Swivel Grease | --- |
| BAU5811L | Multi-Purpose Lithium Based Grease | --- |
| LRN2261 | ACE Fluid | Case of 12 pints |
| LRN7590 | Texaco S5 Synthetic 75W90 | Case of 12 quarts (replaces LRN32978) |
| LRN7590D | Texaco S5 Synthetic 75W90 | Drum containing 30 gallons (replaces LRN32978DRUM) |
| LRN32978 | Texaco Multi-Gear 75W90 | Case of 12 quarts |
| LRN32978DRUM | Texaco Multi-Gear 75W90 | Drum containing 30 gallons |
| STC4863 | Esso LT71141 ATF | 1 liter bottle - each |
| LRN402 | Texaco N402 ATF | Case of 12 quarts |
| LRN5010 | Land Rover Fuel System Conditioner | Case of 12 pints |
| STC4861 | Castrol BOT26FMB1 | 1 liter bottle - each |
| NOTE: LRN32978 and LRN32978DRUM have been superseded by LRN7590 and LRN7590D. | ||
WARRANTY CLAIMS
Normal warranty policy and procedures apply.
Failure to use specified fluids could lead to component failure. If component failures are found to be caused by use of improper fluids, warranty charge-backs could be imposed.
