Transmission Diagnosis - With Codes: Identification

The automatic transmission number is stamped on a plate riveted to the bottom left hand side of the automatic transmission casing. See Fig 1.

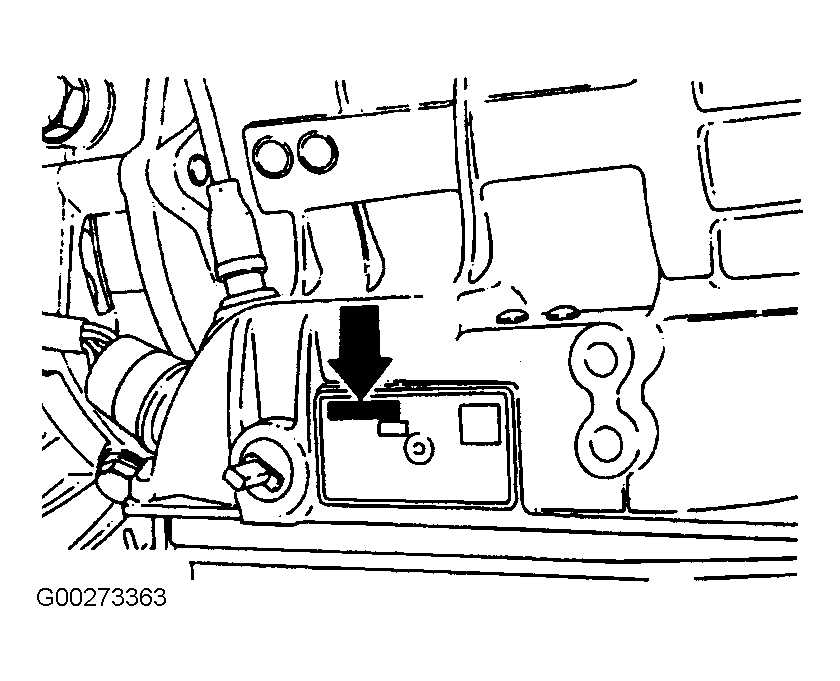

Fig 1: Locating Transmission Identification Number

Courtesy of LAND ROVER NORTH AMERICA, INC.
