Gear Ratio Functional Check Monitoring

For gear ratio functional check monitoring information, see Fig 1.

NOTE: This monitor covers information for DTC P0721 and P0731-P0734.

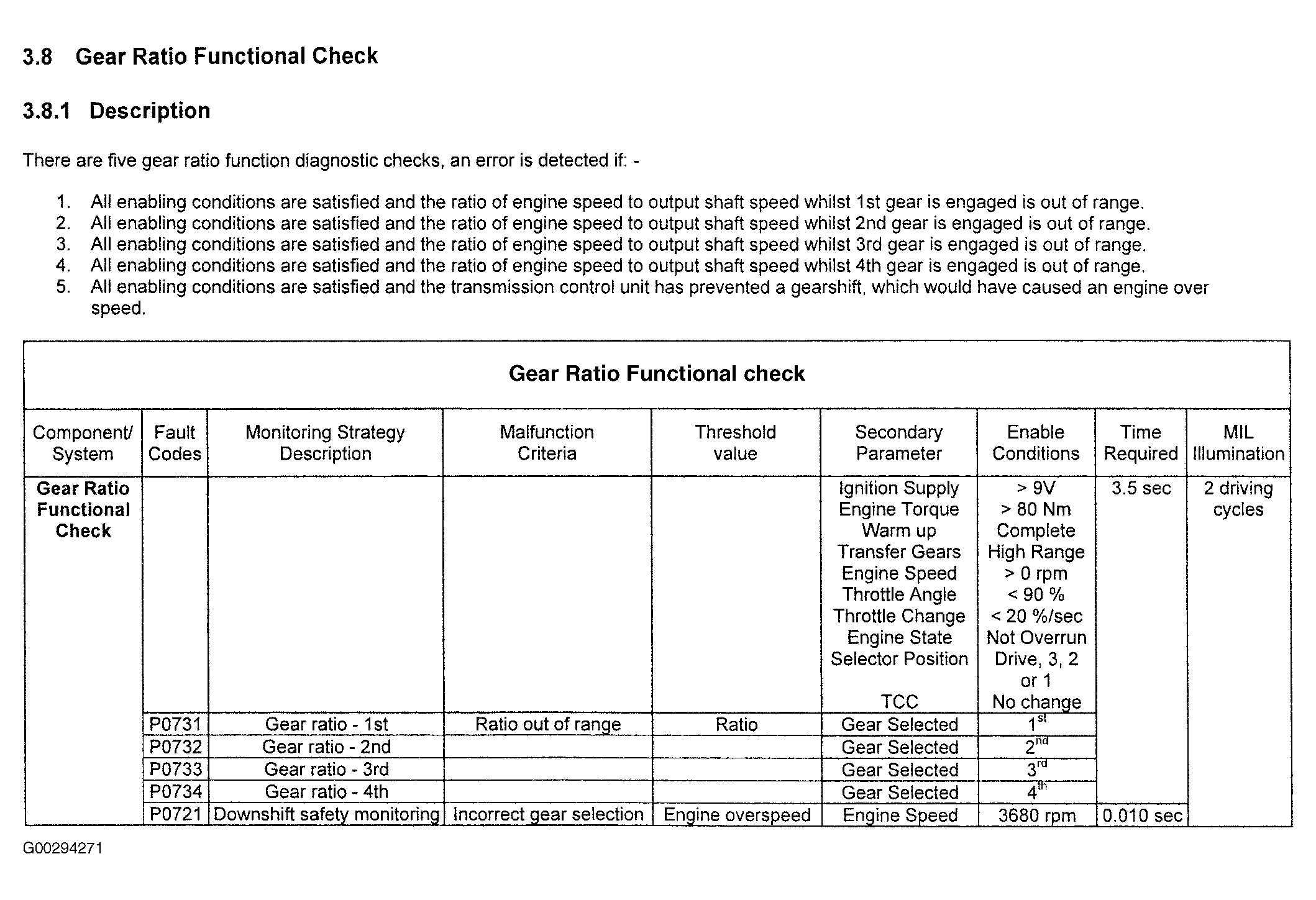

Fig 1: Gear Ratio Functional Check Monitoring

G00294271

Courtesy of LAND ROVER NORTH AMERICA, INC.
