Immobilization Control Diagram - Diesel
Immobilization Control Diagram - Diesel

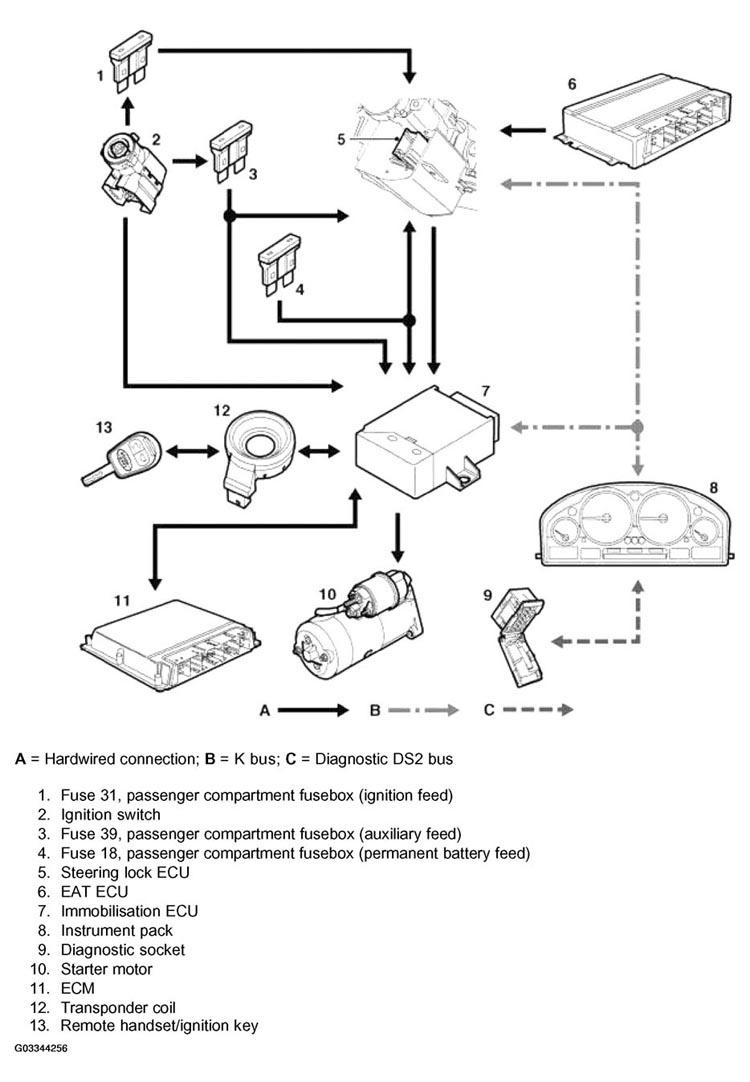

Fig 1: Identifying Immobilization Control Diagram - Diesel
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
