Section 28 (Disc): Overhaul

WARNING: This page is about a different car, the 2004 Land Rover Range Rover and 2003 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For exploded view of front brake caliper, see Fig 1 . For exploded view of rear brake caliper, see Fig 2 .

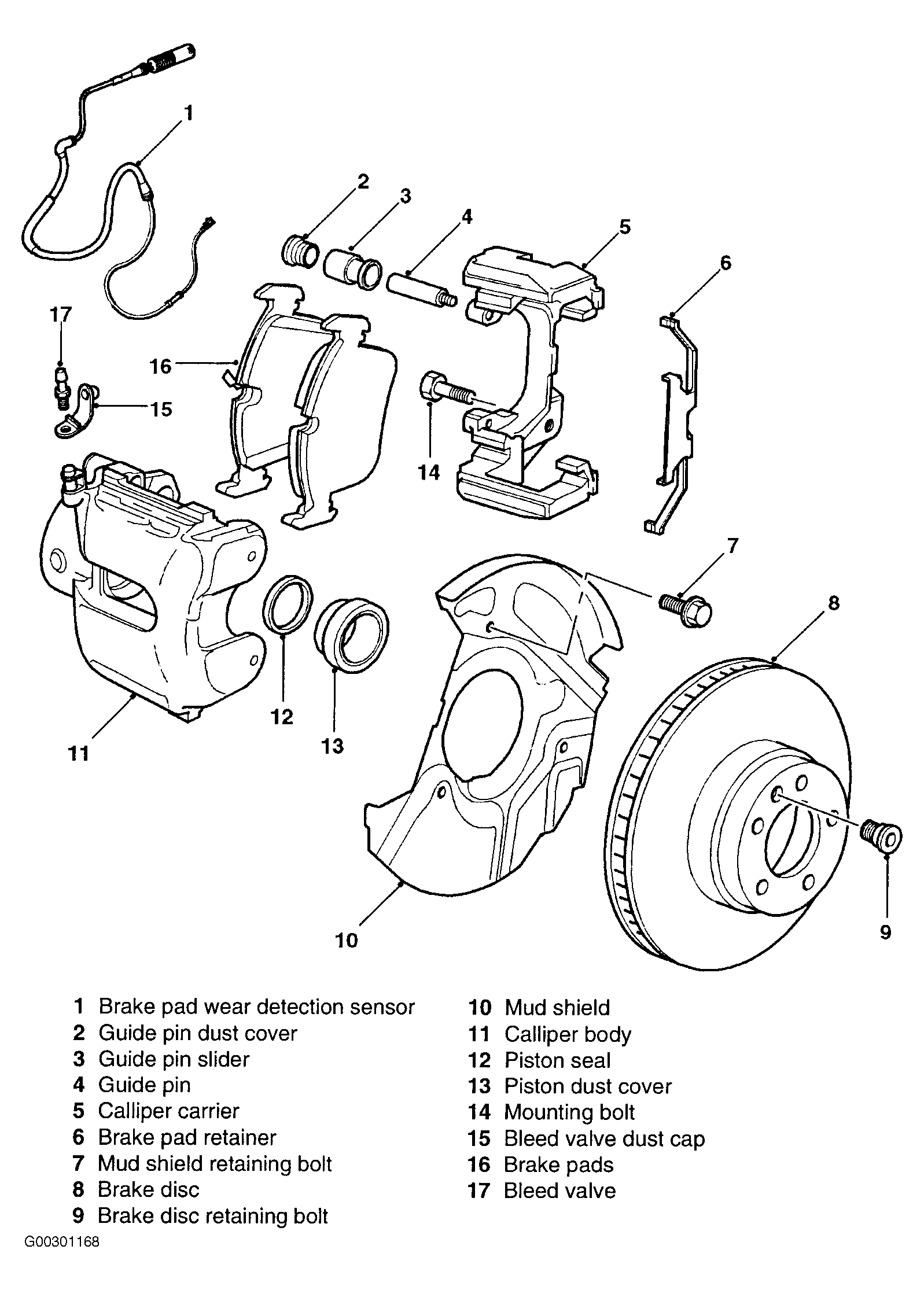

Fig 1: Exploded View Of Front Brake Caliper

Courtesy of LAND ROVER NORTH AMERICA, INC.

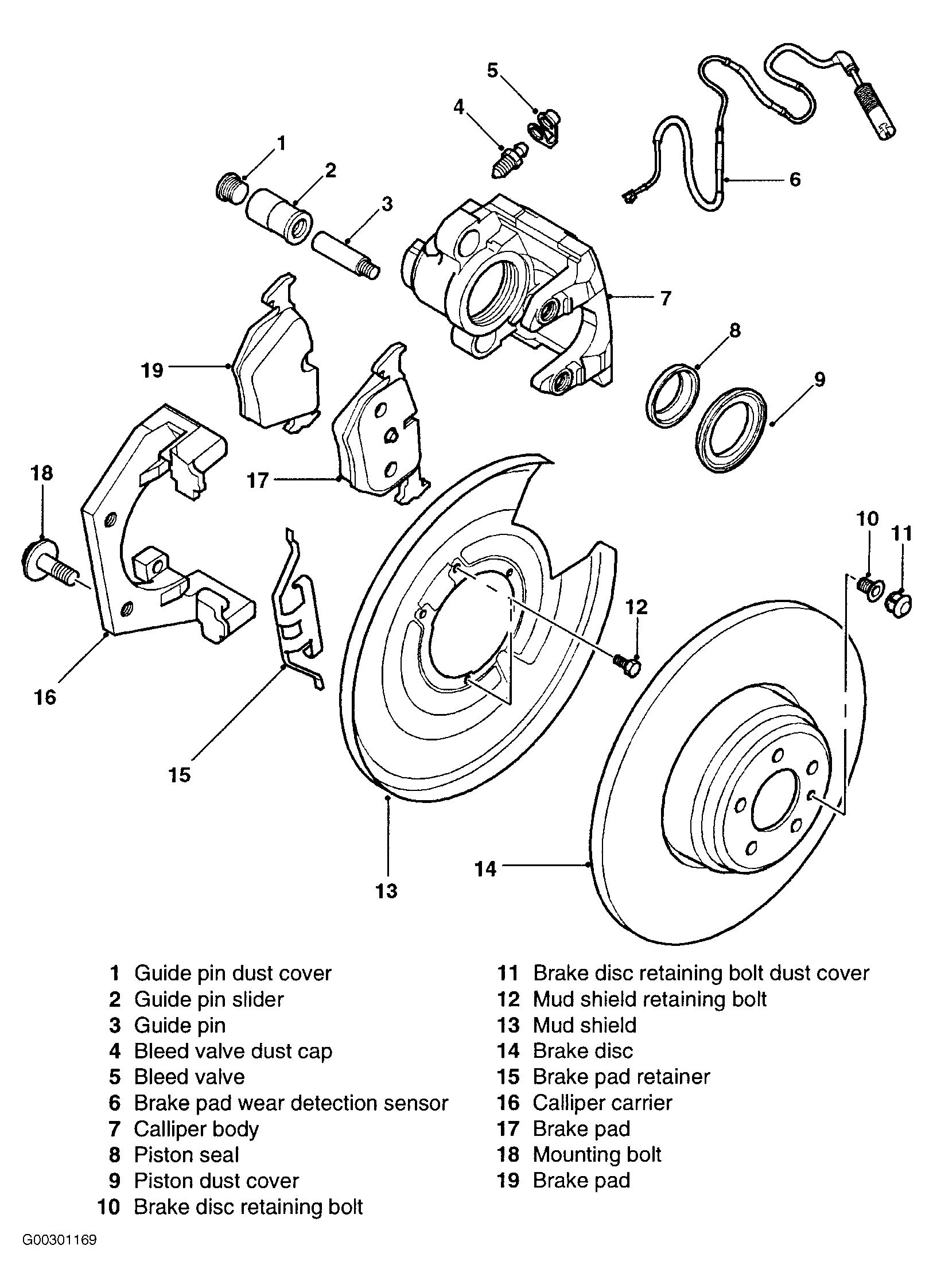

Fig 2: Exploded View Of Rear Brake Caliper

Courtesy of LAND ROVER NORTH AMERICA, INC.
