For component locations and cooling system flow, see Fig 1, Fig 2 and Fig 3
.

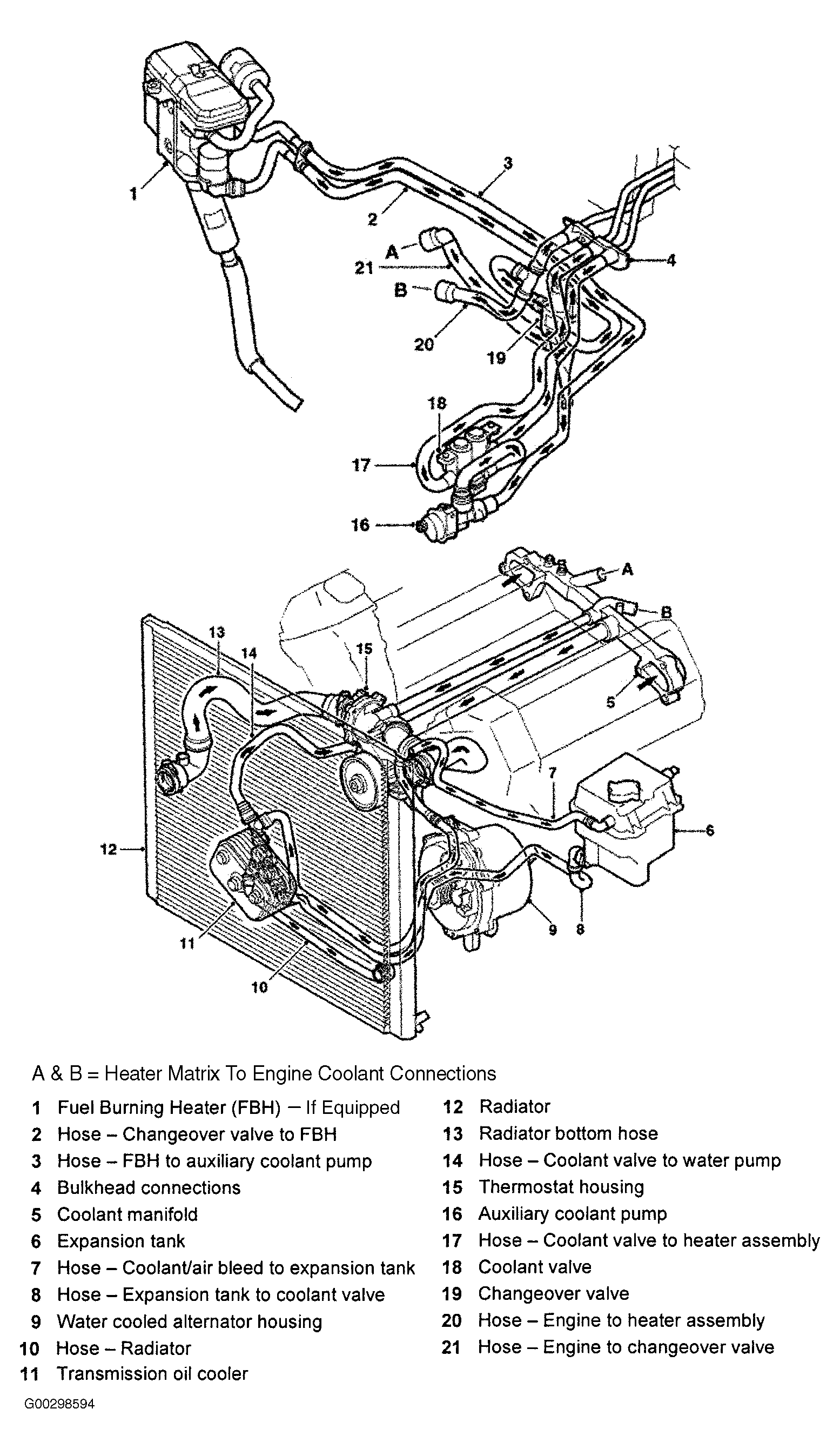

Fig 1: Locating Cooling System Components (1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

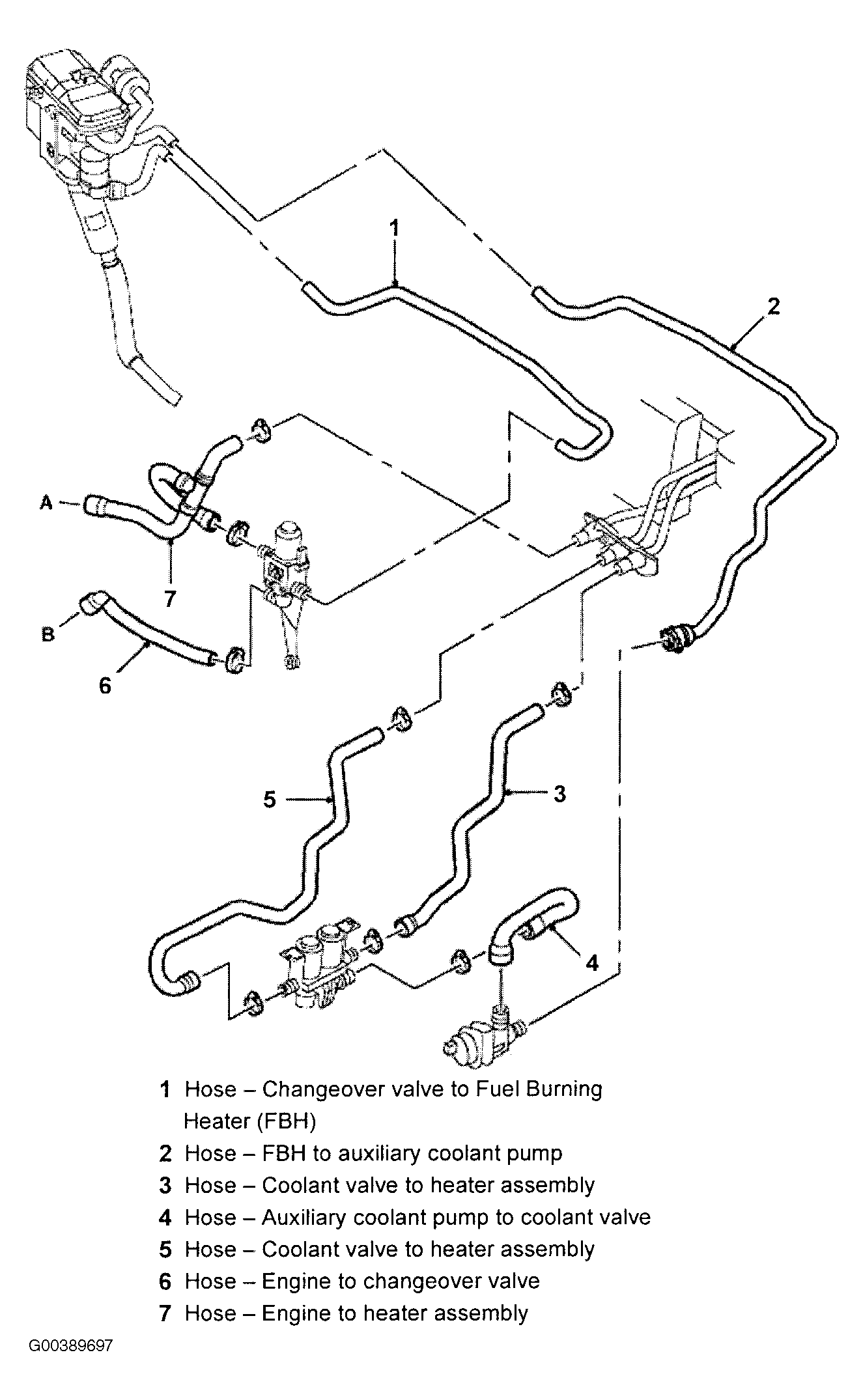

Fig 2: Locating Cooling System Components (2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

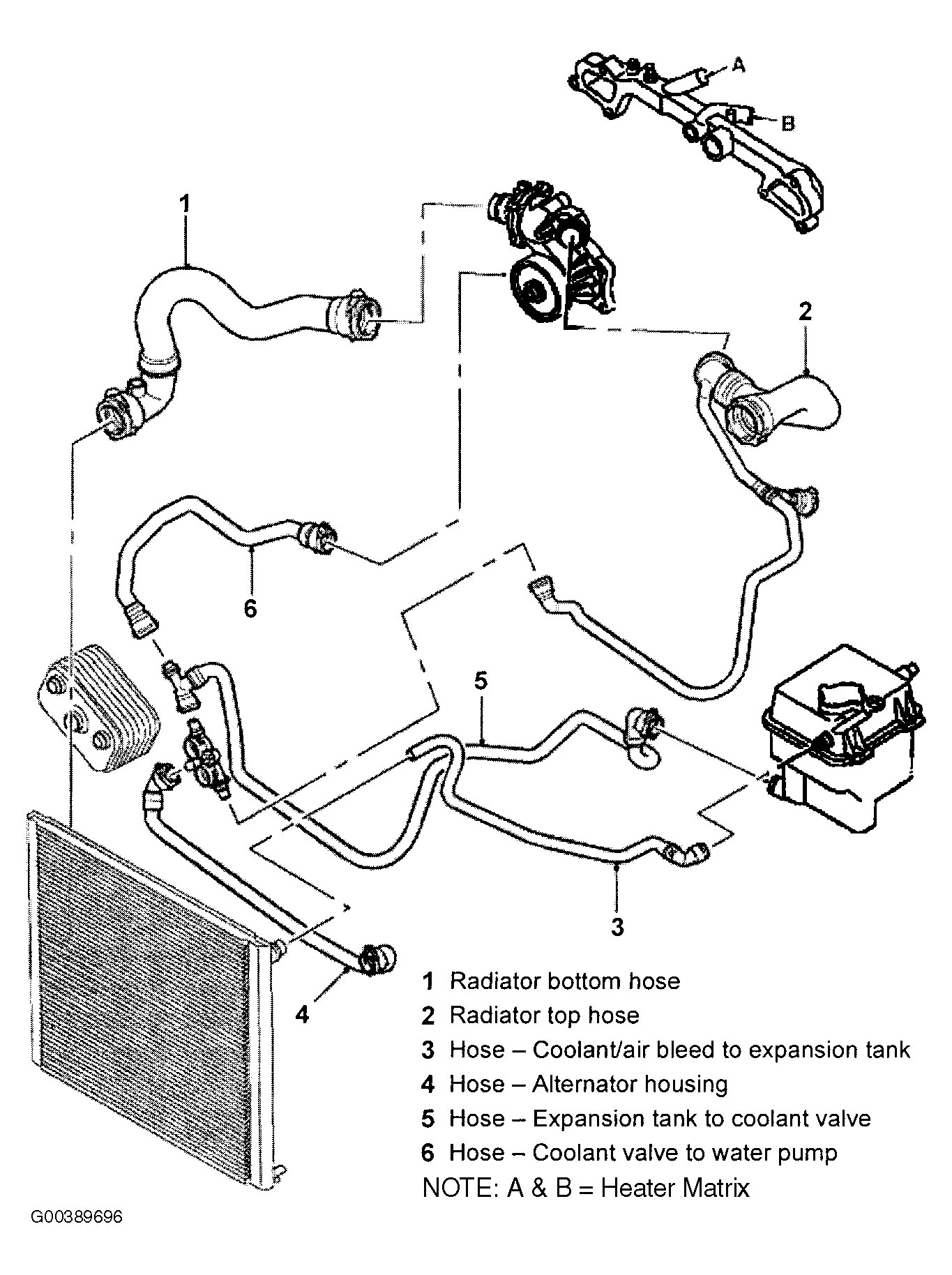

Fig 3: Identifying Cooling System Components & Flow Direction (4.4L)
