Cooling System - KV6 Petrol
Cooling System - KV6 Petrol

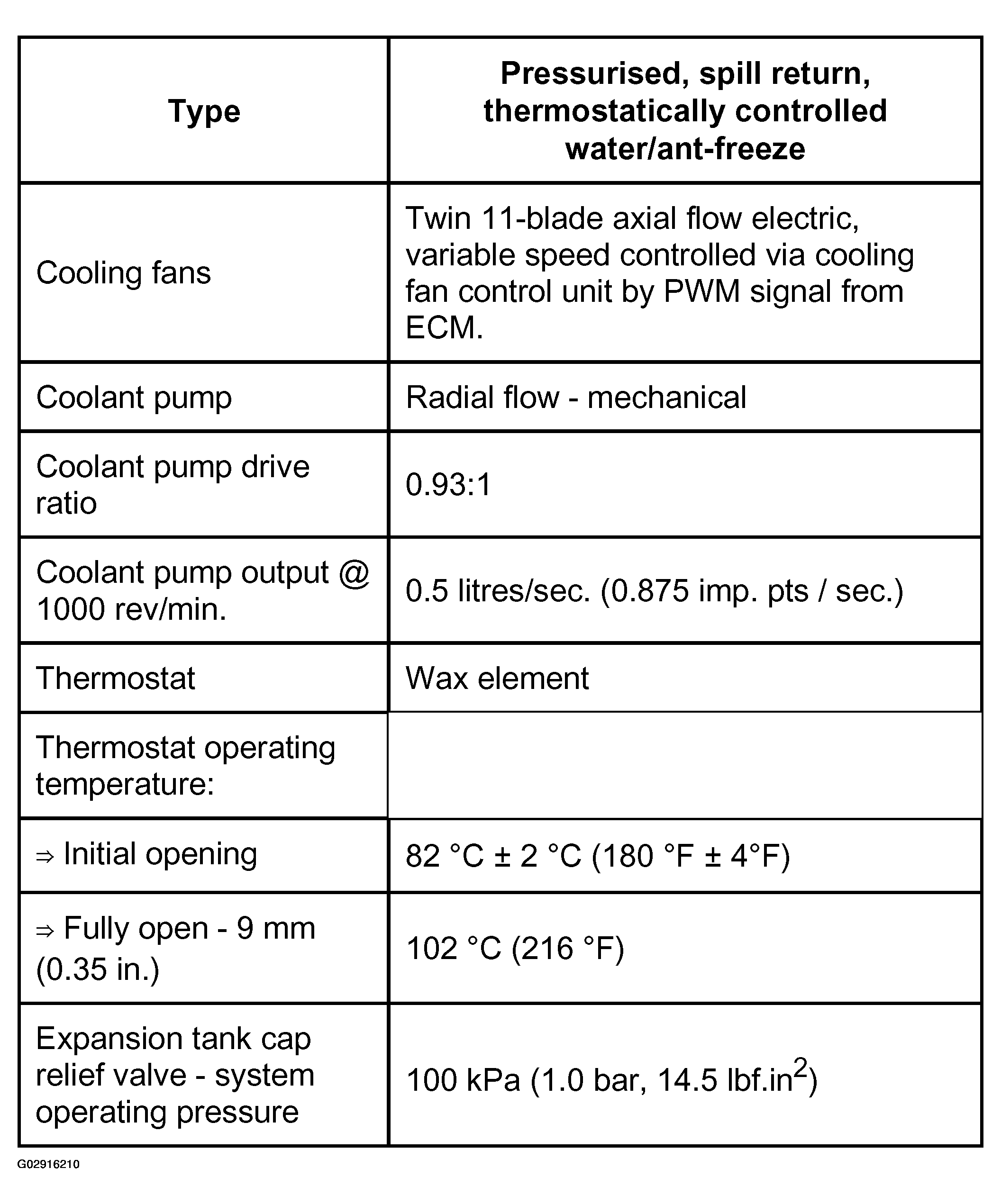

Fig 1: Cooling System Specification - KV6 Petrol
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
