86.53.20 Display Unit Navigation System: Remove

Fit tool LRT-86-009 into slots, ensuring correct handed tool is in correct slot.

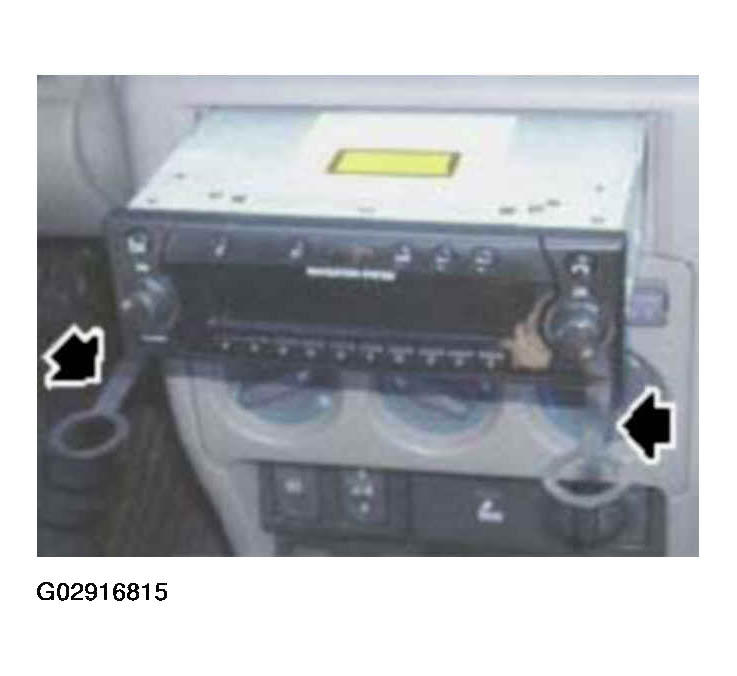

Fig 1: Removing Navigation Unit
Courtesy of LAND ROVER NORTH AMERICA, INC.

The tools are stamped with 'TOP L' and 'TOP R', ensure the stampings are facing upwards when removing the unit.
Pull unit from fascia.
Disconnect 3 multiplugs and 2 coax cables, remove unit.

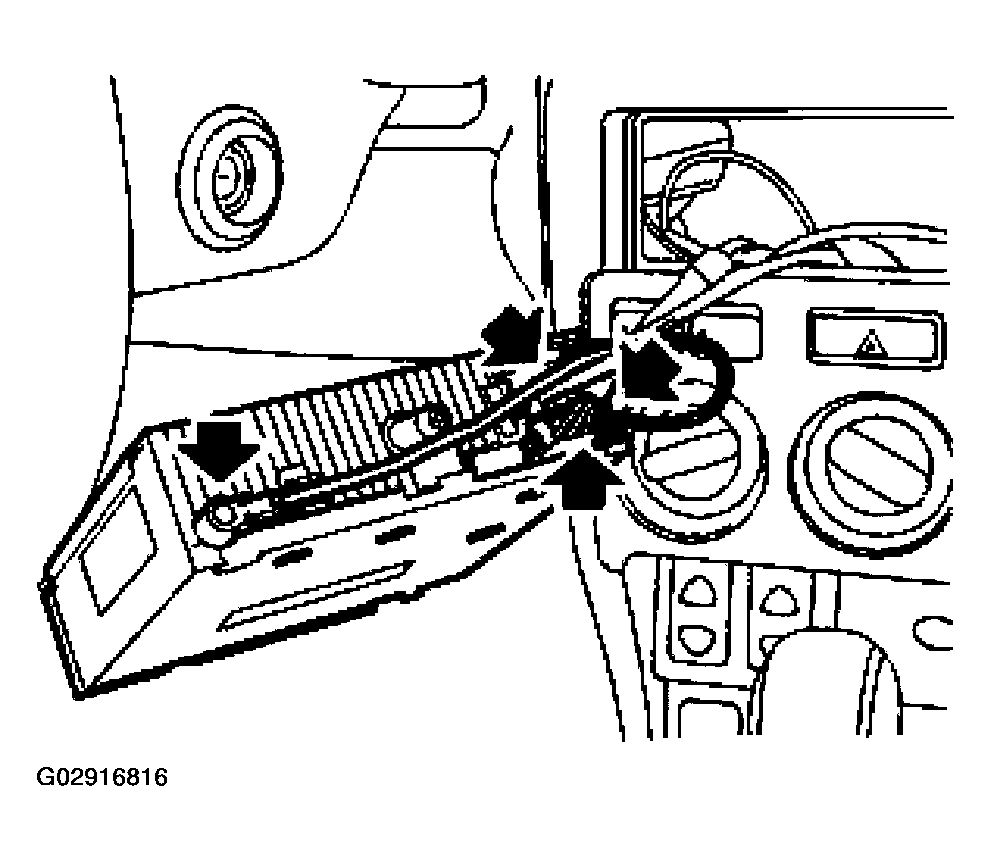

Fig 2: Disconnecting Multiplugs And Coax Cables
Courtesy of LAND ROVER NORTH AMERICA, INC.
Push retaining clips inwards and remove keys.
