Manual Gearbox - Pg1
Manual Gearbox - Pg1

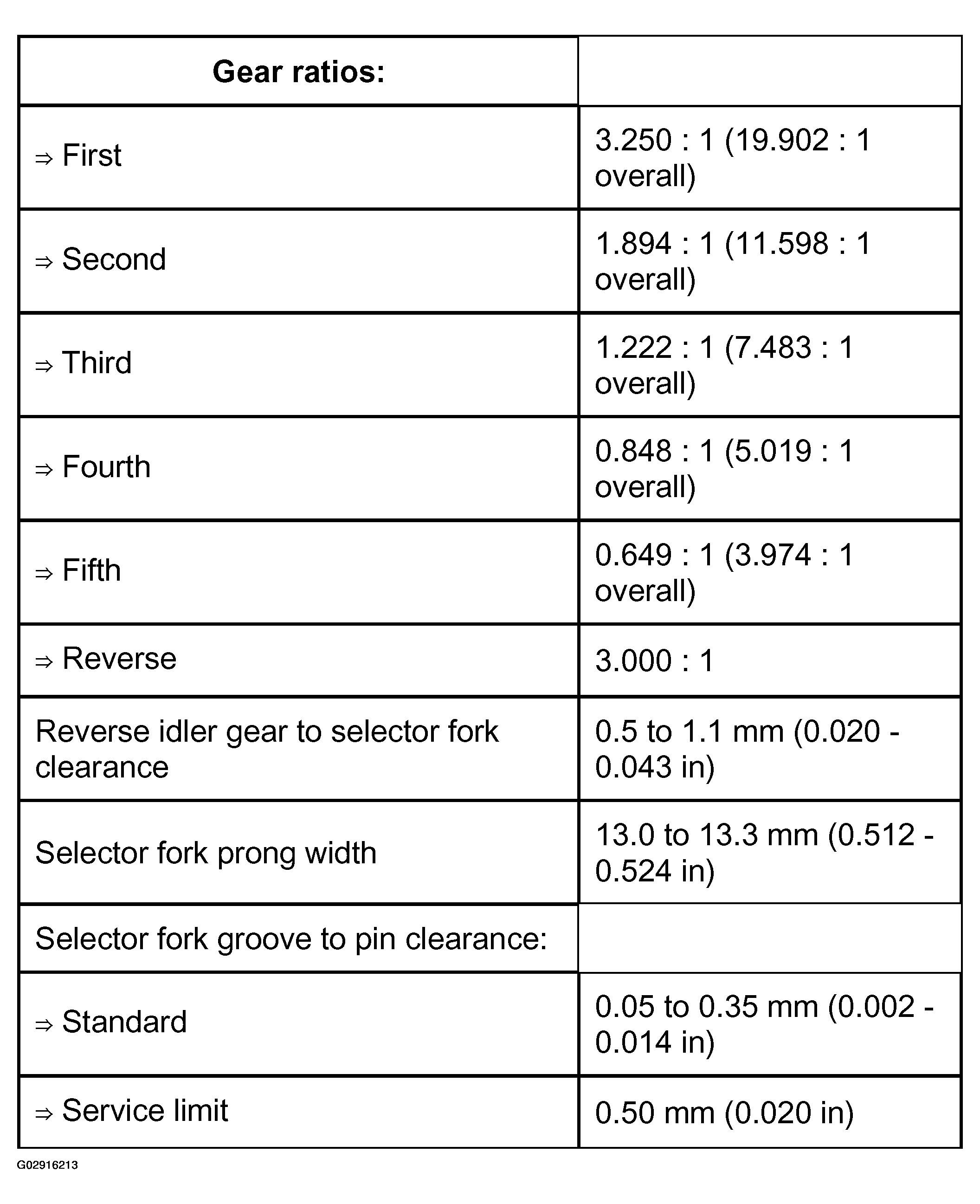

Fig 1: Manual Gearbox - PG1 Specification (1 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 2: Manual Gearbox - PG1 Specification (2 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 3: Manual Gearbox - PG1 Specification (3 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 4: Manual Gearbox - PG1 Specification (4 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
