17.45.01 Valve - EGR - Td4: Remove

Disconnect battery earth lead.
Remove intake ducting assembly.

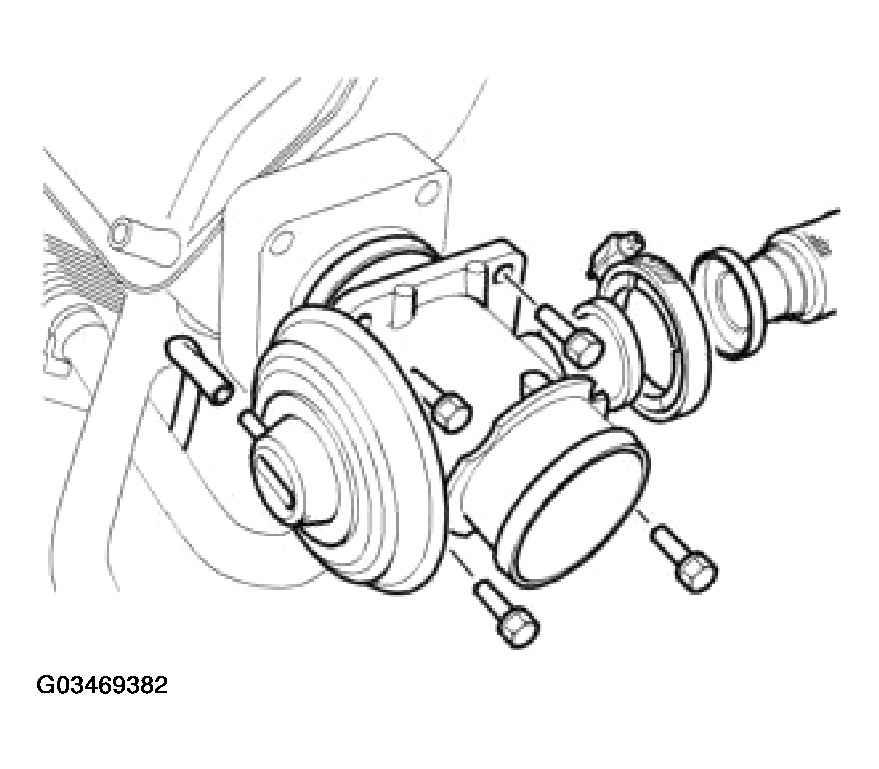

Fig 1: Removing 4 Bolts And EGR Valve
Courtesy of LAND ROVER NORTH AMERICA, INC.
Disconnect vacuum hose from EGR valve.
Loosen screw and remove clamp EGR pipe to valve.
Remove 4 bolts and EGR valve. Discard seal.
