Component Locations

For component locations, see Fig 1 -Fig 4 . For JATCO A/T gearbox control diagram, see Fig 5 .

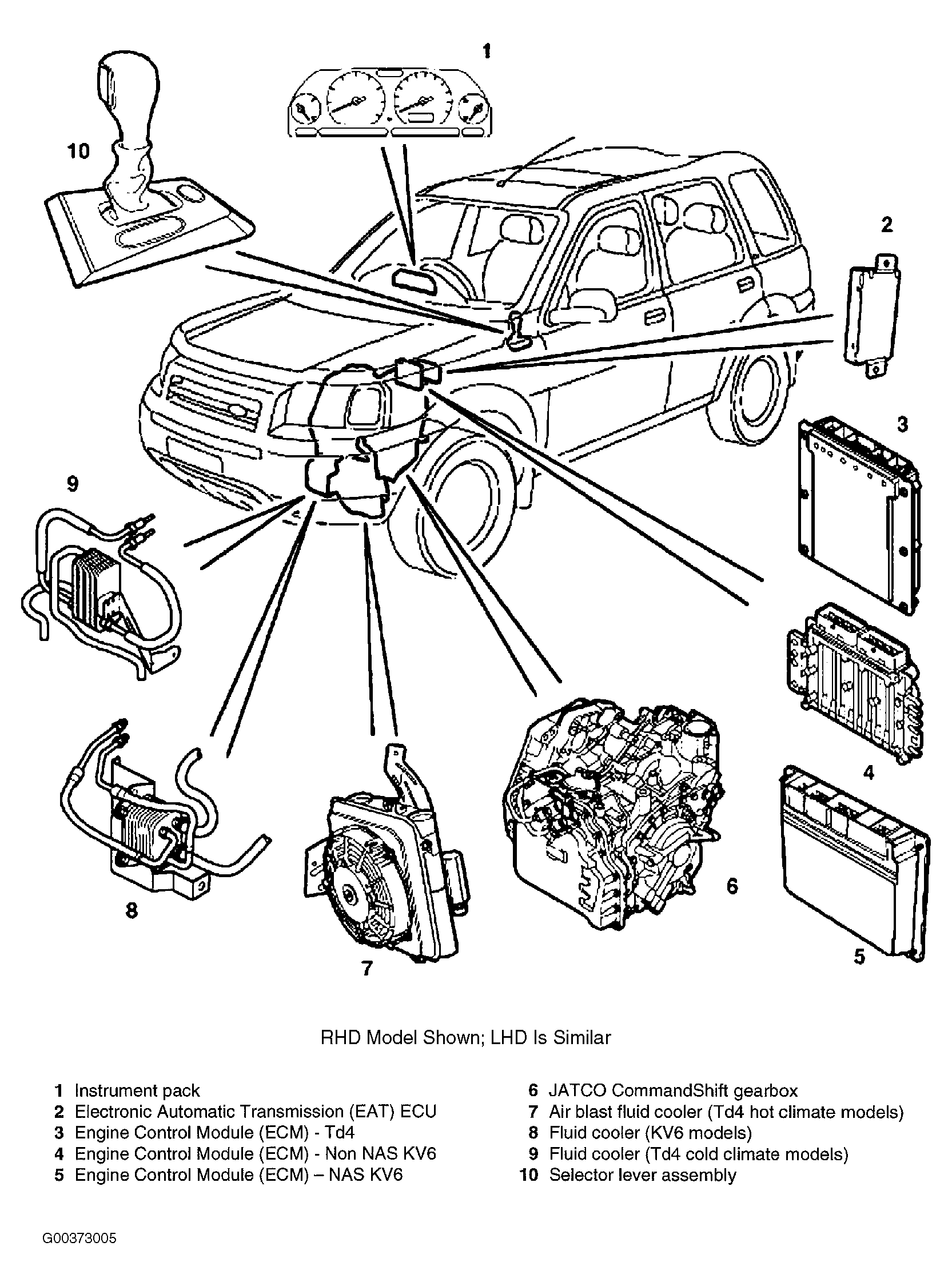

Fig 1: JATCO A/T Gearbox Component Location (RHD Shown; LHD Is Similar)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: JATCO A/T Gearbox

Courtesy of LAND ROVER NORTH AMERICA, INC.

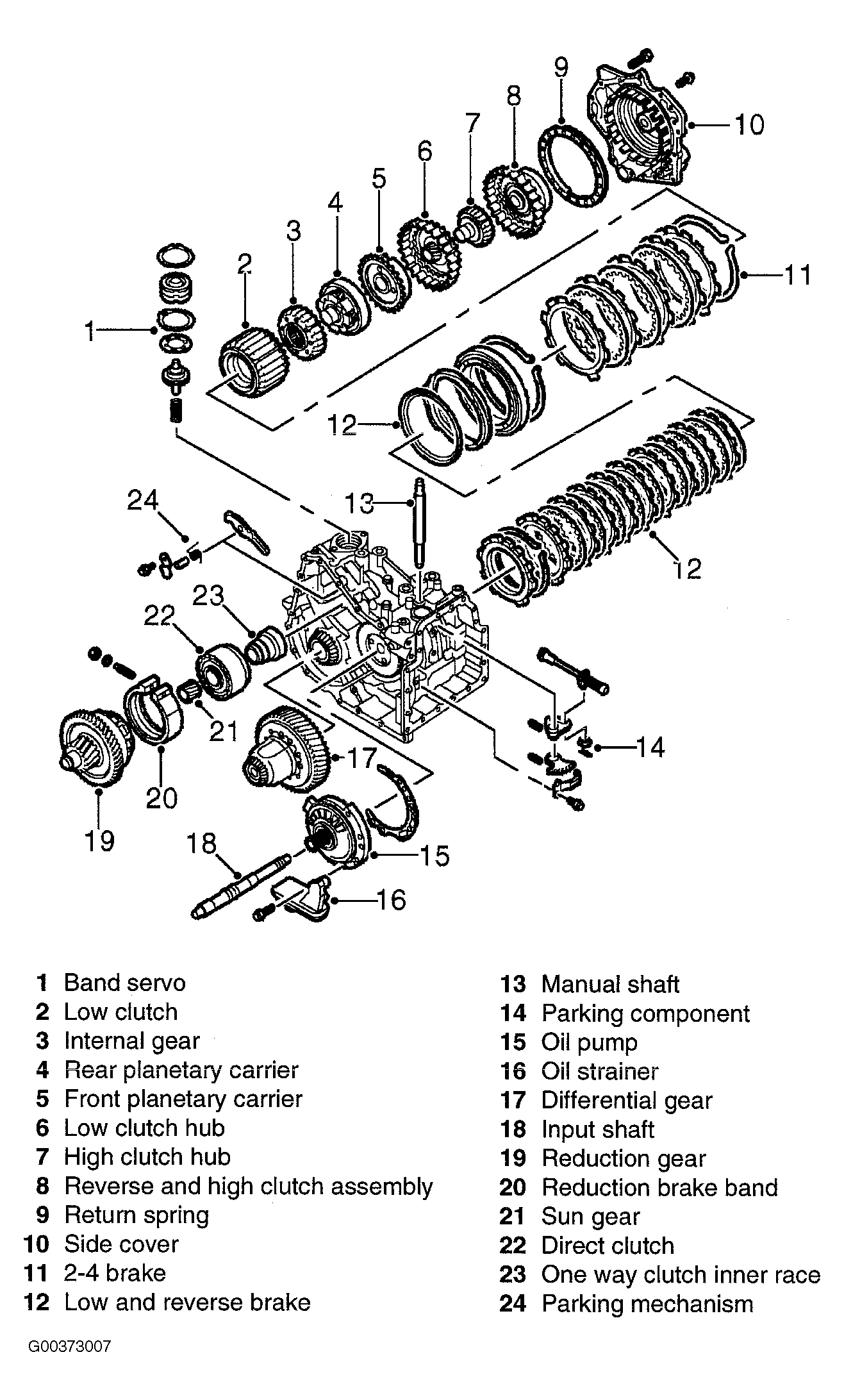

Fig 3: JATCO A/T Gearbox - Exploded View

Courtesy of LAND ROVER NORTH AMERICA, INC.

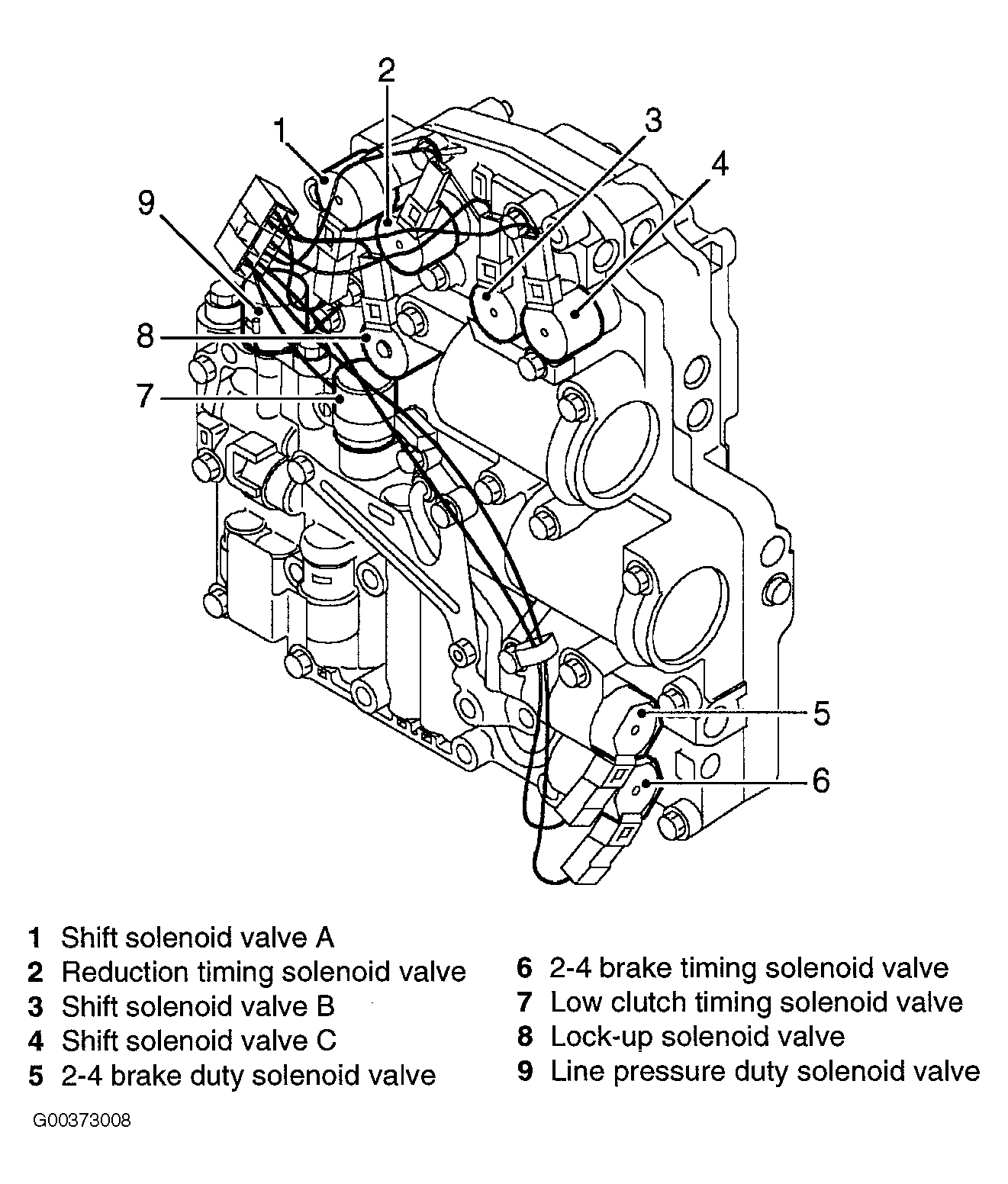

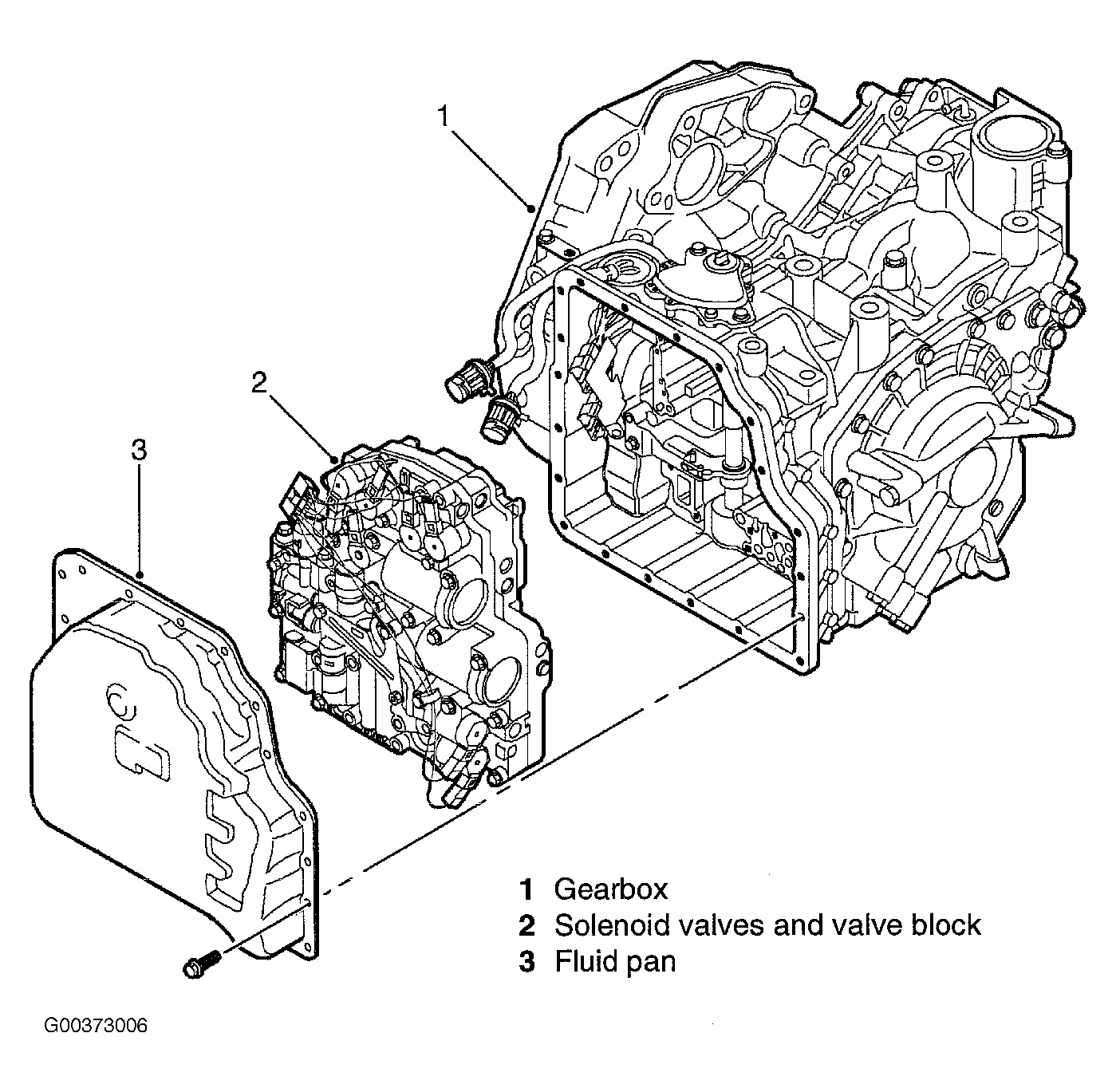

Fig 4: JATCO A/T Gearbox - Valve Block & Solenoid Valves

Courtesy of LAND ROVER NORTH AMERICA, INC.

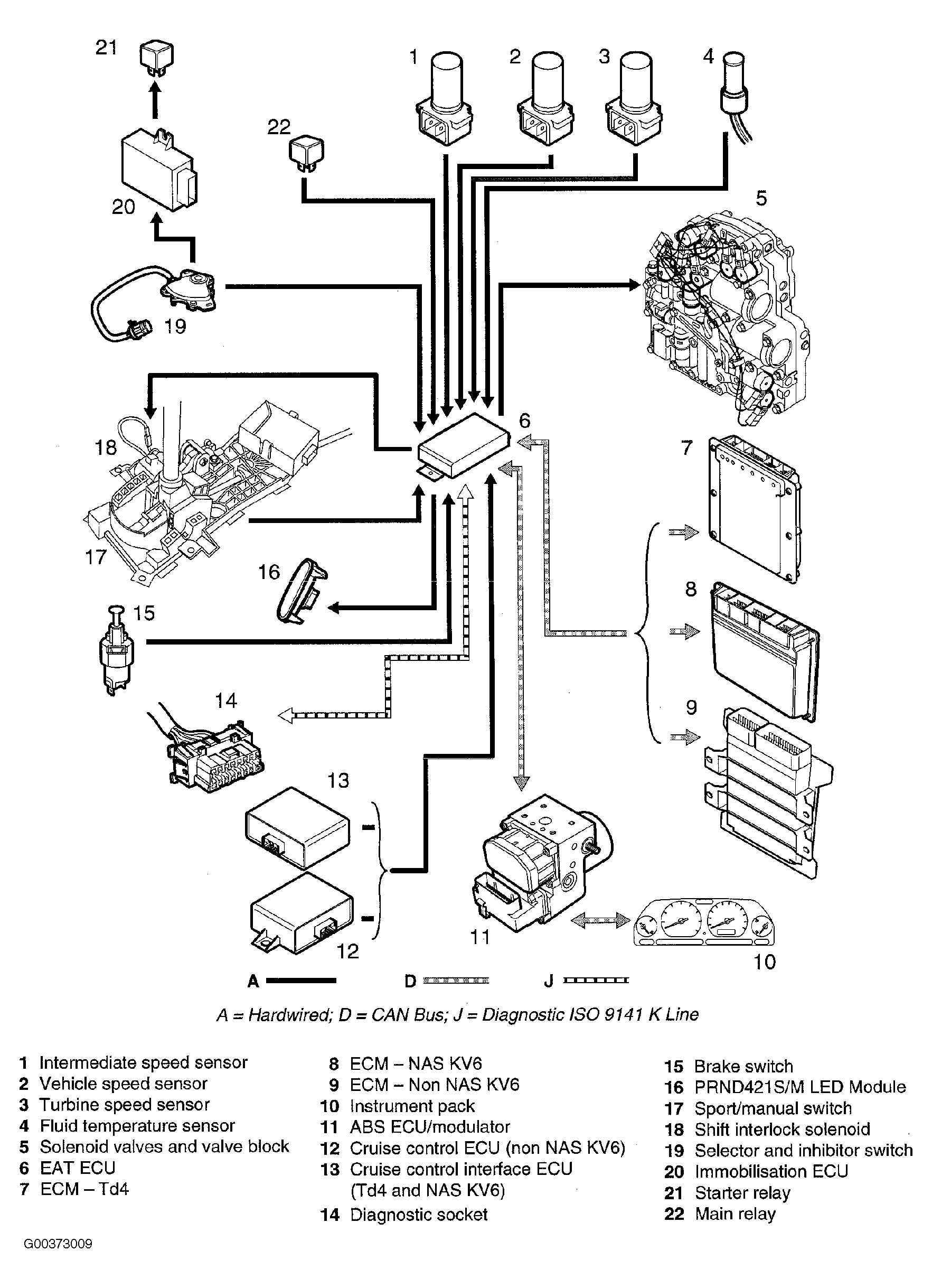

Fig 5: JATCO A/T Gearbox Control Diagram

Courtesy of LAND ROVER NORTH AMERICA, INC.
