18.20.02 Spark plugs - from 03MY: Remove

  1. Disconnect battery earth lead.
  2. Remove the engine acoustic cover.

    INSTALLATION

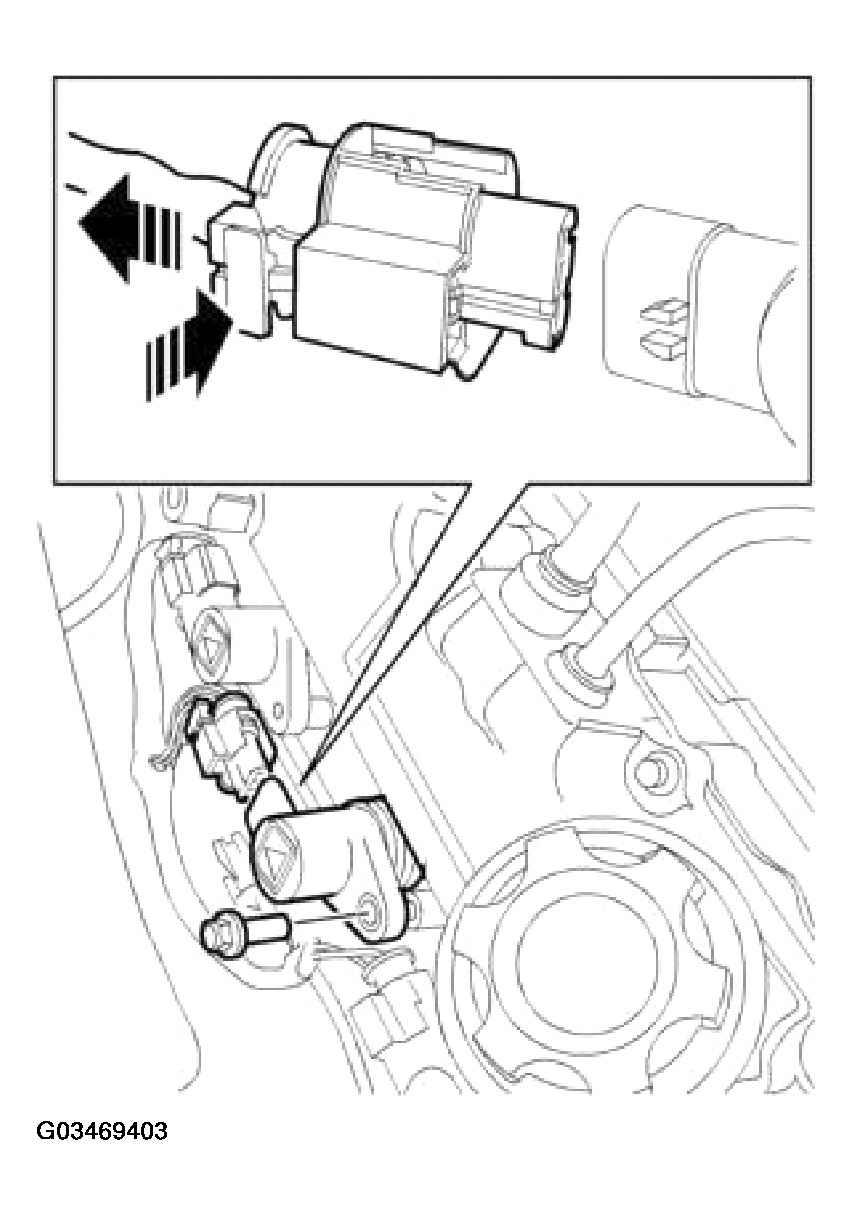

    Fig 1: Disconnecting Multiplugs From Plug Top Coils
    G03469403Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Release locking clips and disconnect multiplugs from plug top coils.
  4. Remove 6 bolts securing plug top coils to cylinder heads.
  5. Pull to release and remove 6 plug top coils from cylinder heads.
  6. Using a 16 mm plug socket, remove spark plugs from cylinder heads.
