Front Suspension
Front Suspension

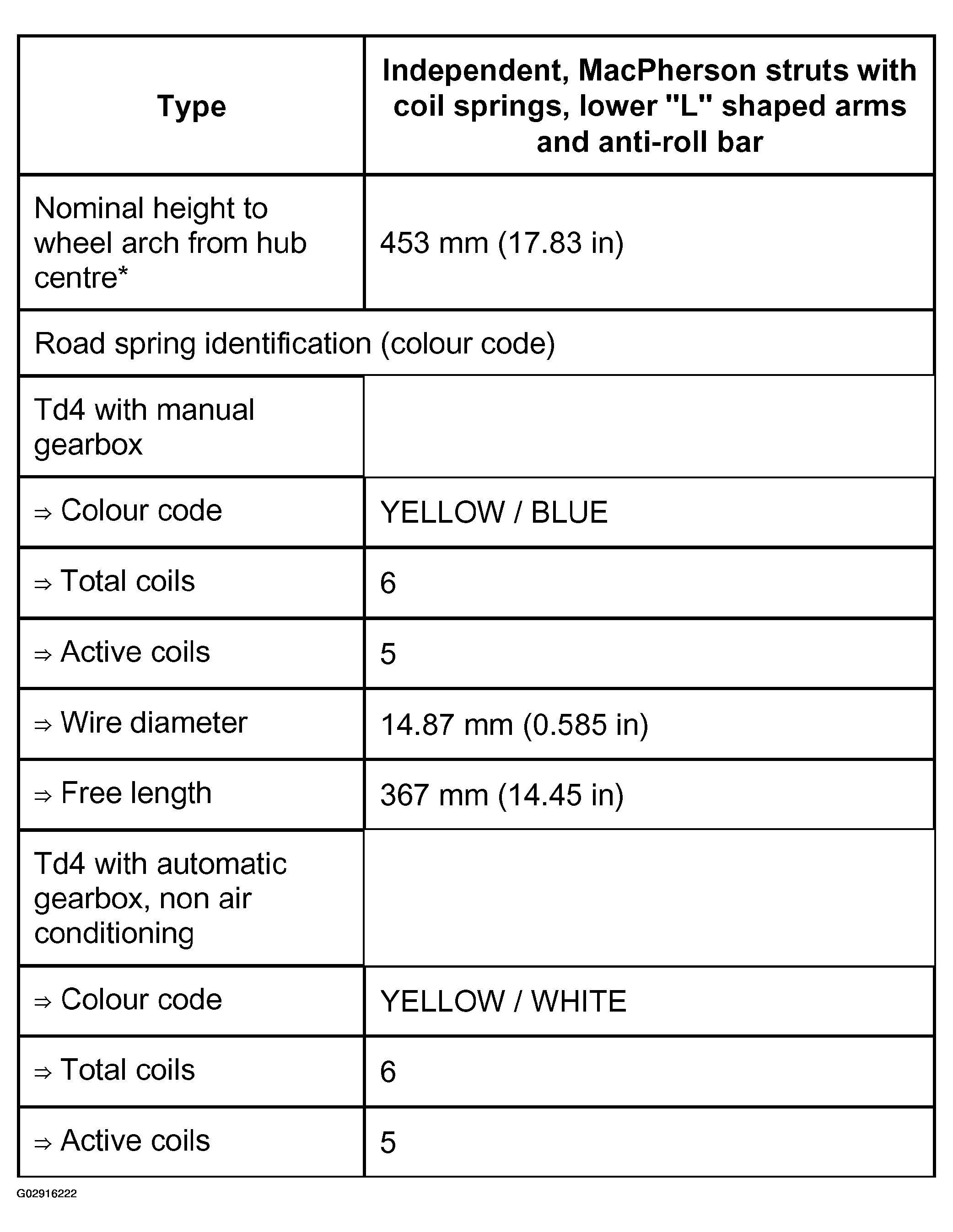

Fig 1: Front Suspension Specification (1 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

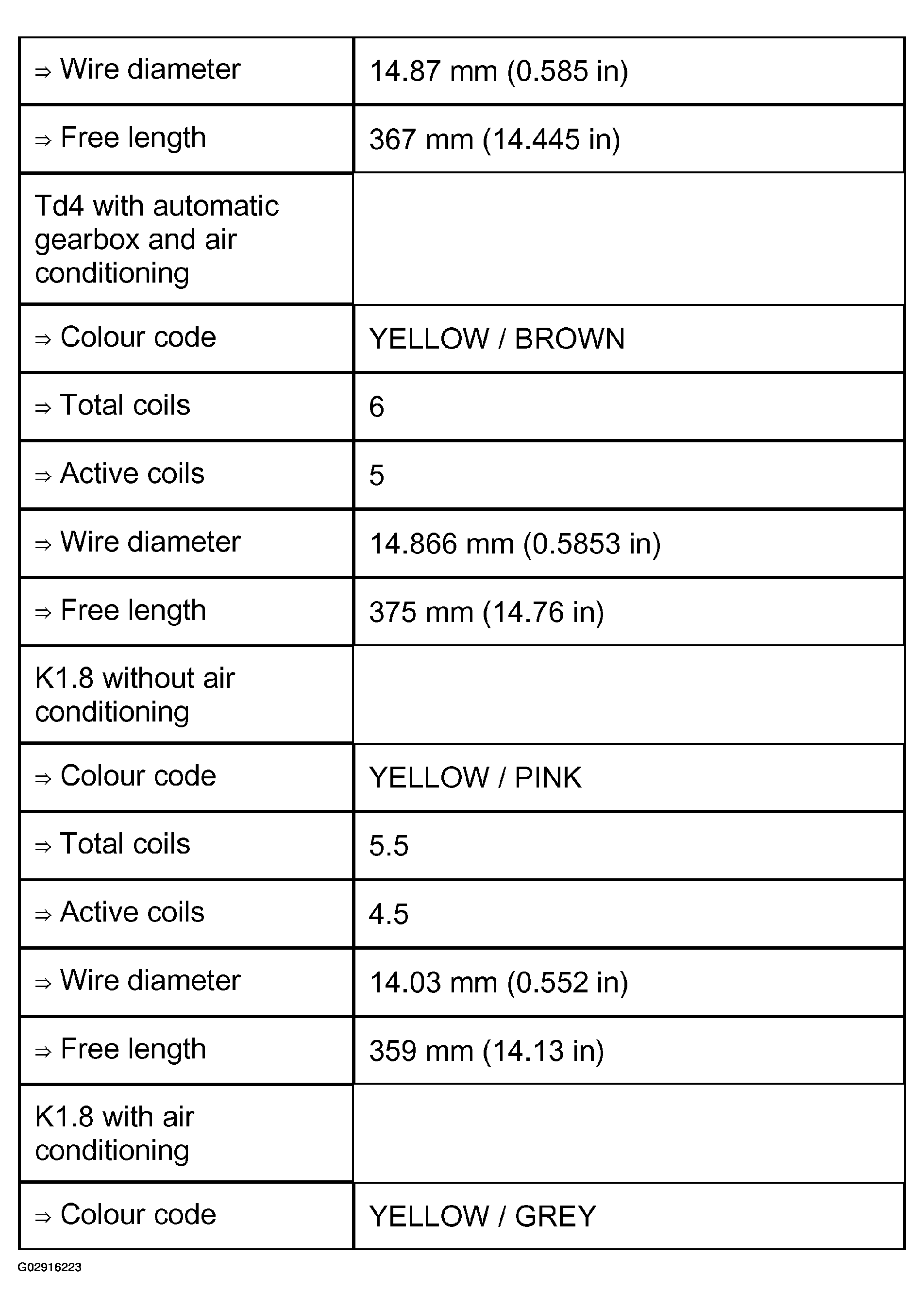

Fig 2: Front Suspension Specification (2 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

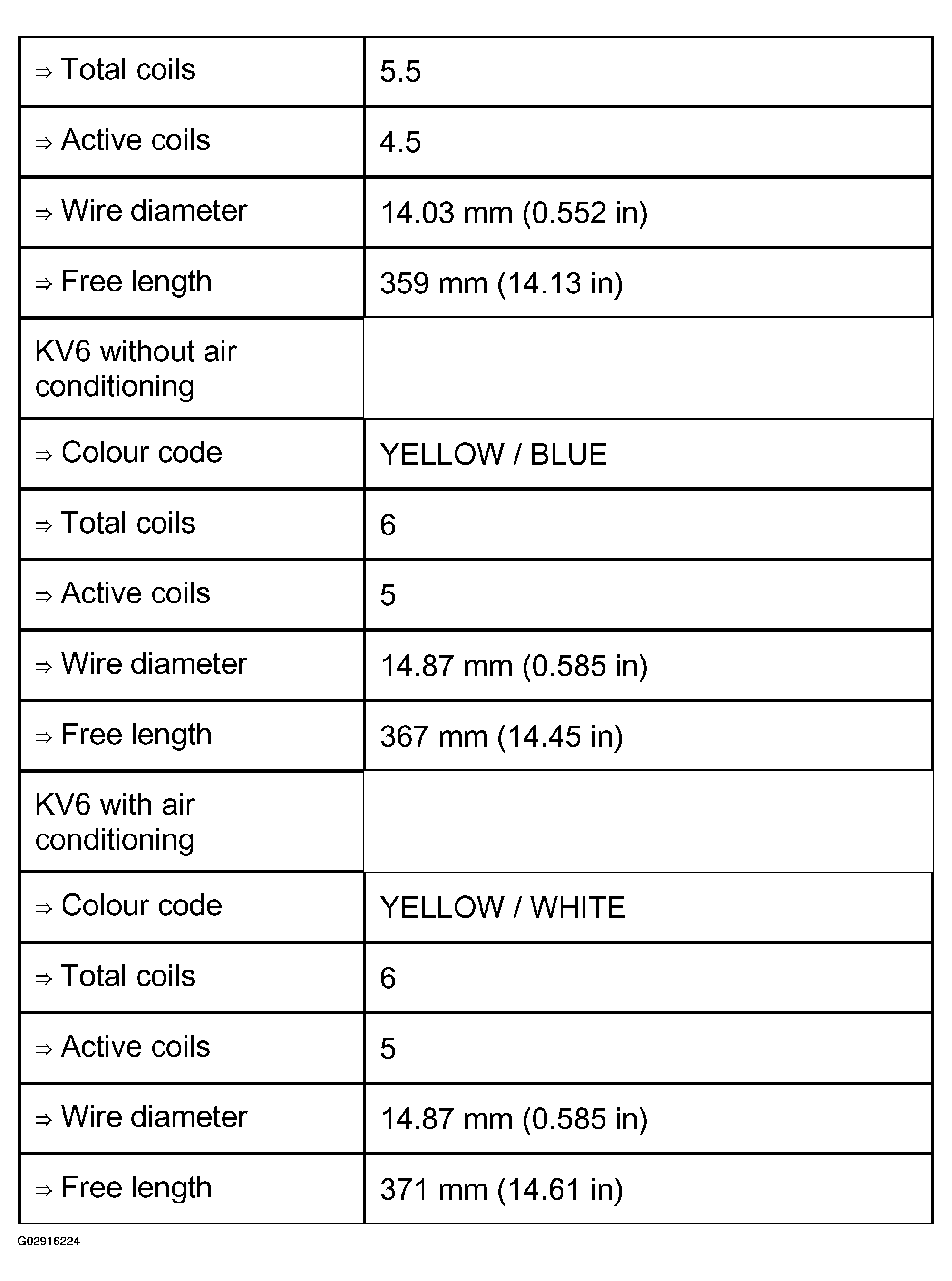

Fig 3: Front Suspension Specification (3 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

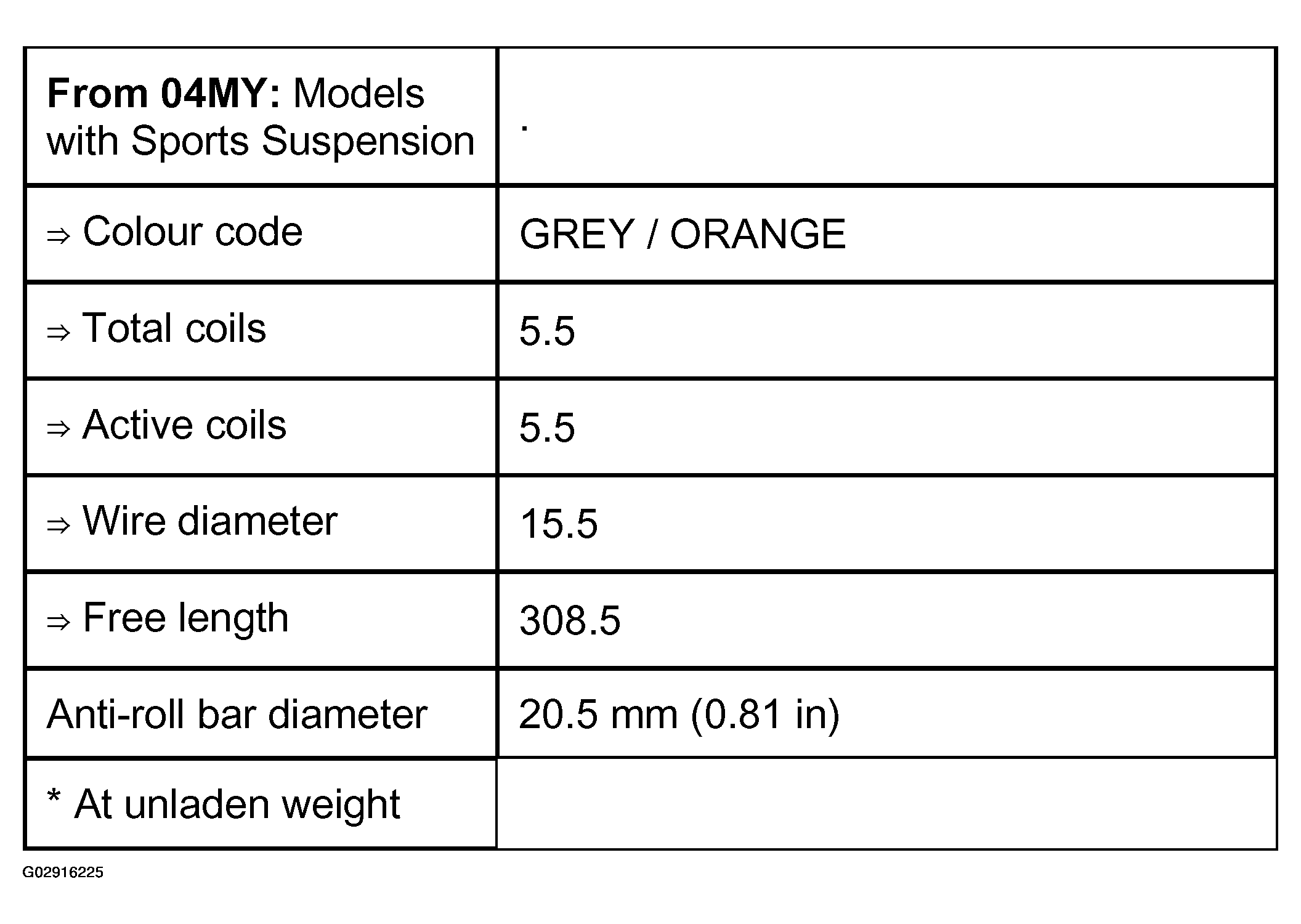

Fig 4: Front Suspension Specification (4 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.
