General Data
›
Steering
General Data: Steering

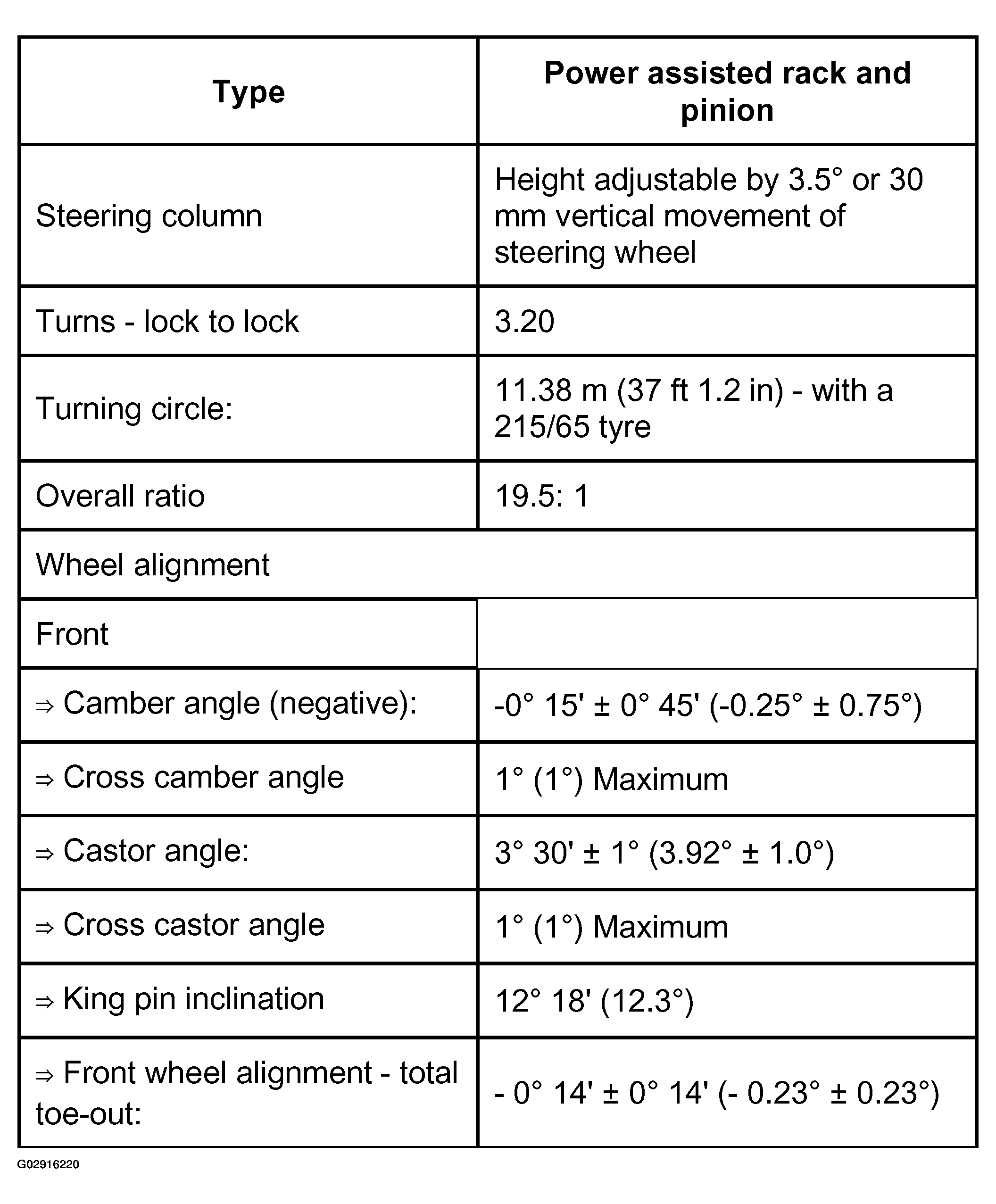

Fig 1: Steering Specification (1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

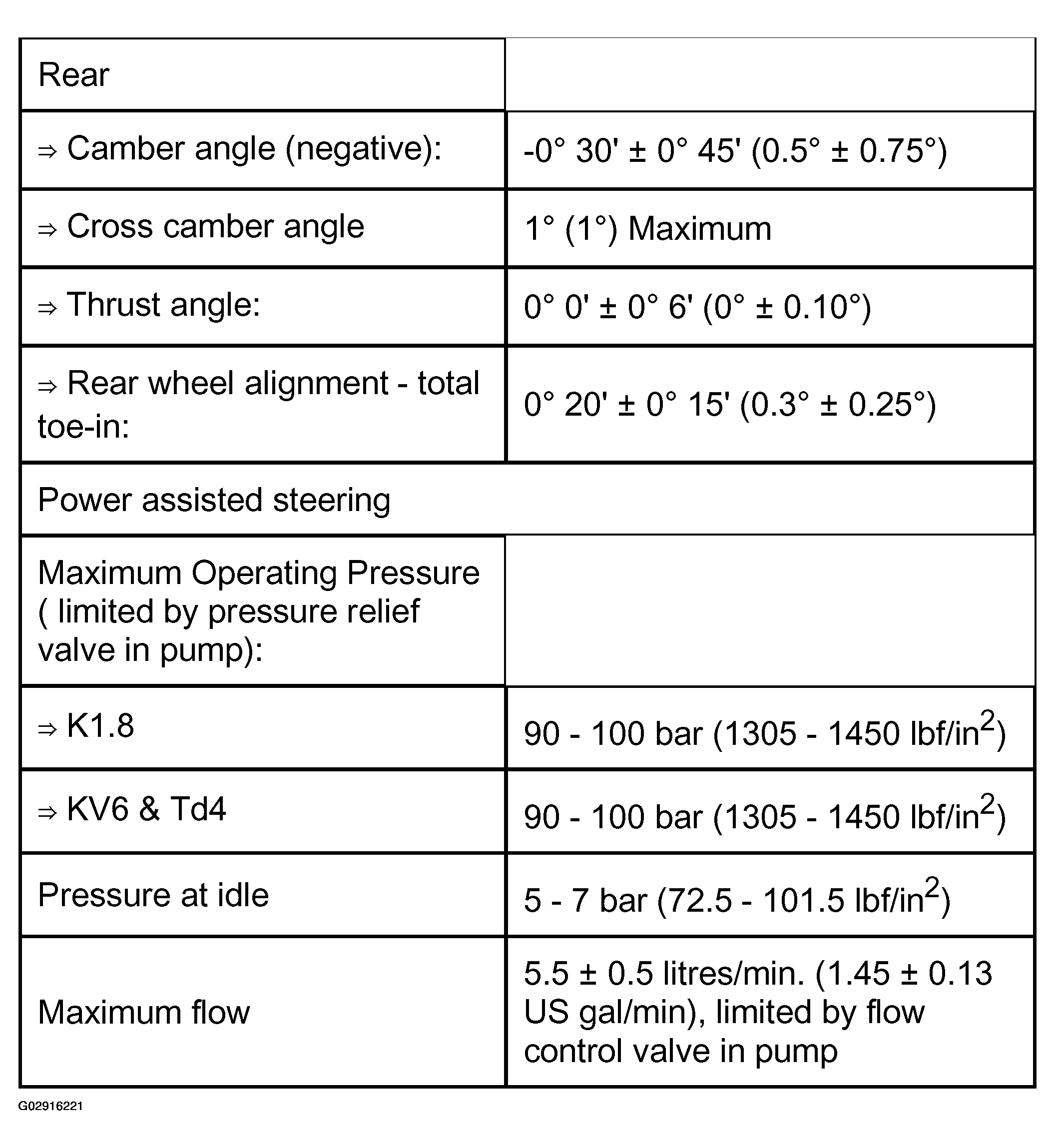

Fig 2: Steering Specification (2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
