17.45.41 Module - tank leakage diagnostic (DMTL): Remove

Disconnect battery earth lead.
Remove RH rear wheel arch liner.
Refer to REMOVE .

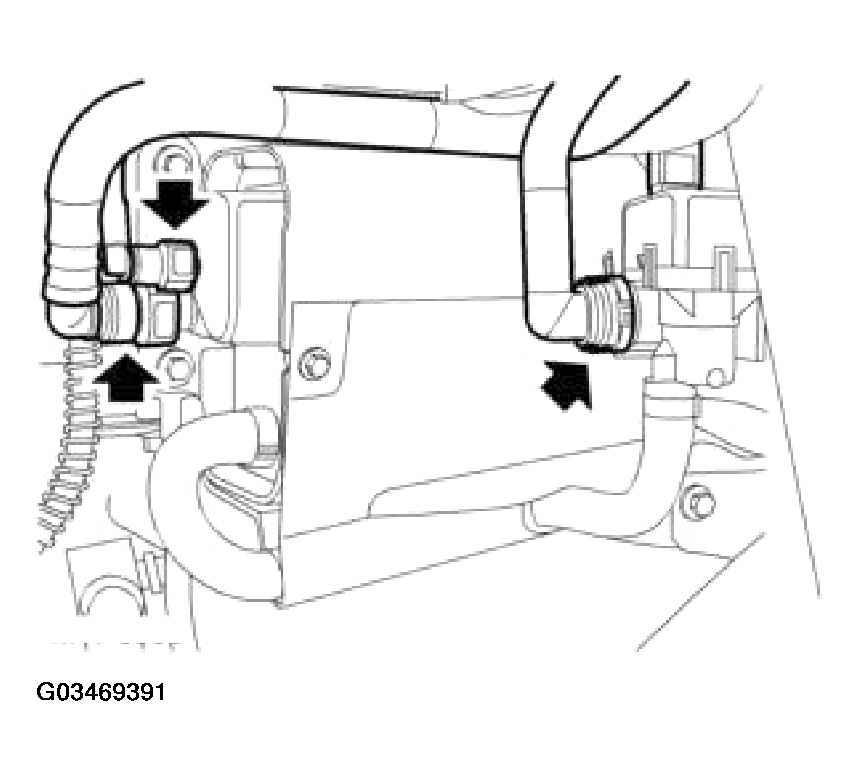

Fig 1: Disconnecting Pipes From Charcoal Canister And DMTL
Courtesy of LAND ROVER NORTH AMERICA, INC.
Release and disconnect pipes from charcoal canister and DMTL.
CAUTION: Before disconnecting or removing components, ensure the immediate area around joint faces and connections are clean. Plug open connections to prevent contamination.

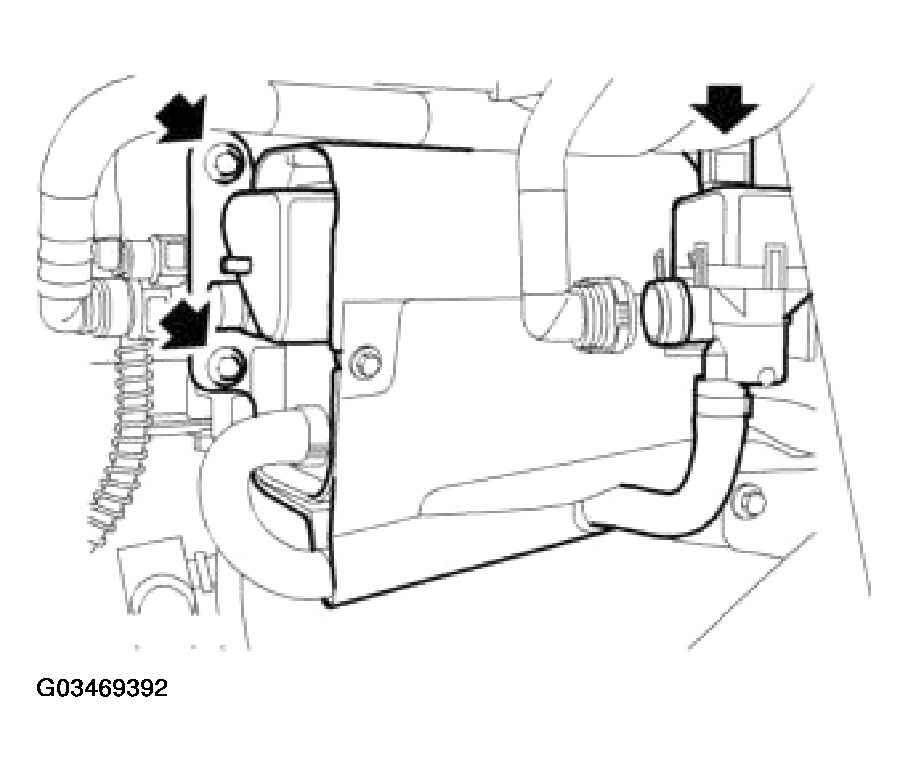

Fig 2: Removing 2 Bolts Securing Canister Support Bracket
Courtesy of LAND ROVER NORTH AMERICA, INC.
Remove 2 bolts securing canister support bracket and release assembly from mounting.
Disconnect multiplug from DMTL and remove canister and valve assembly.

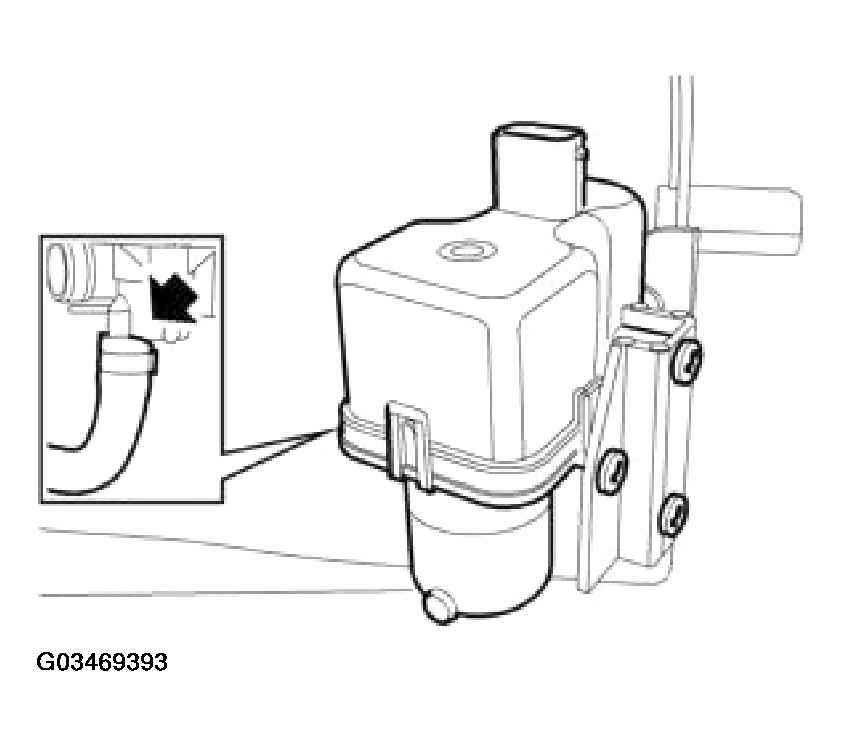

Fig 3: Disconnecting Hose From DMTL
Courtesy of LAND ROVER NORTH AMERICA, INC.
Release clip and disconnect hose from DMTL.
CAUTION: Before disconnecting or removing components, ensure the immediate area around joint faces and connections are clean. Plug open connections to prevent contamination.
Remove 3 screws and remove DMTL.
