Check And Top-Up Fluid

WARNING: This page is about a different car, the 2004 Land Rover Freelander. However, it is still accessible from the selected car via links, so may be relevant.

With vehicle on a ramp at a convenient working height, using LRT-41-021, carefully remove IRD level plug and collect sealing washer.

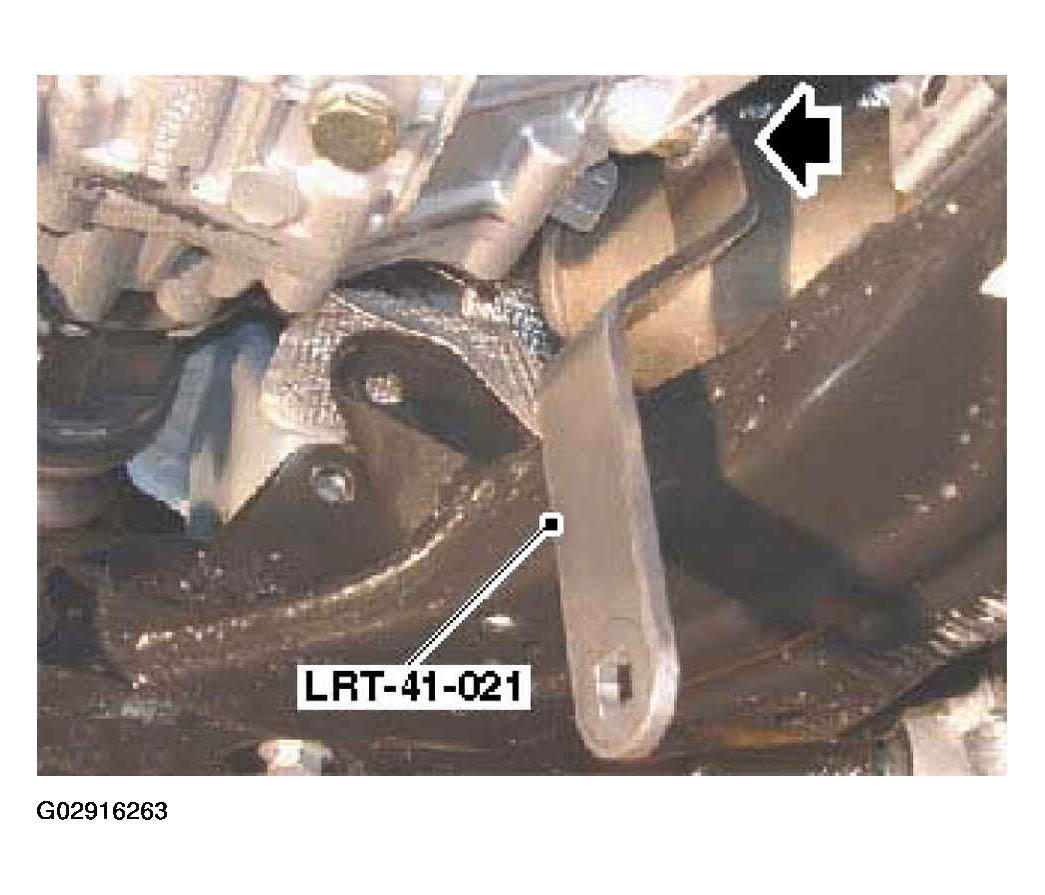

Fig 1: Removing Intermediate Reduction Drive (IRD) Level Plug (NAS Models)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Top-up, if required, until fluid just runs from hole. Allow sufficient time for oil to flow until it reaches a common level in unit.
Refit level plug to IRD unit using a new sealing washer.
