Check And Top-Up Fluid

WARNING: This page is about a different car, the 2004 Land Rover Freelander. However, it is still accessible from the selected car via links, so may be relevant.

With vehicle on a ramp at a convenient working height, carefully remove IRD level plug and collect sealing washer.

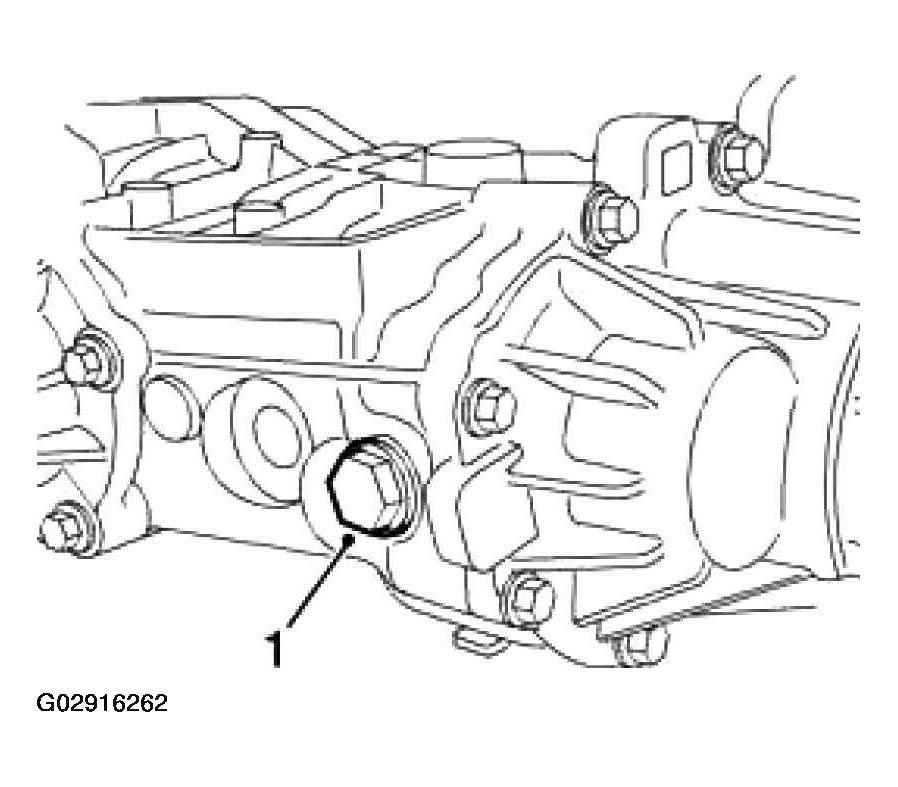

Fig 1: Removing Intermediate Reduction Drive (IRD) Level Plug (Non NAS Models)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Check oil level. Before topping up oil level, check for visible signs of leakage. Pay particular attention to drive shaft and prop shaft oil seals.
Refit level plug to IRD unit using a new sealing washer.
