VIS MOTOR GASKET REPLACEMENT GUIDELINES
TECHNICAL SERVICE BULLETIN
Reference Number(s): 19/03/03/NAS, Date of Issue:
April 4, 2003
| LAND ROVER: | Freelander (LN) |
| ISSUE: | 1 |
| SECTION: | Fuel System |
| AFFECTED VEHICLES: | Freelander (LN) - All |
SITUATION
INSPECTION AND RE-USE OF VIS MOTOR GASKETS
Previously Land Rover had not supplied the Variable Induction System (VIS) motor gaskets as spare parts. Technical Alert TA02 3001 had instructed Retailers to retain the seals for reuse.
RESOLUTION
VIS MOTOR GASKETS NOW AVAILABLE AS SPARES
The VIS motor gaskets and screws may be reused after careful inspection for damage. (Refer to Alert TA02 3001) The gaskets and screws have now been made available as spare parts in the event of damage or loss.
PARTS INFORMATION
PARTS INFORMATION
| Part Number | Description | Qty |
|---|---|---|
| LWF000020L | Seal - Use with balance valve motor MKE100110L | 1 |
| LYP000340L | Fastener - Use with balance valve motor MKE100110L | 4 |
| LWF000030L | Seal - Use with power valve motor MKE100100L | 1 |
| LYP000330L | Fastener - Use with power valve motor MKE100100L | 4 |
WARRANTY CLAIMS
Normal warranty policy and procedures apply.
Material allowance is included in labor operation.
REPAIR PROCEDURE
INSPECT VIS MOTOR GASKETS
- Refer to Technical Alert TA02 1901, TECHNICAL ALERT; TROUBLESHOOTING FREELANDER VIS MOTOR FAULTS , for information relating to troubleshooting VIS motor complaints.

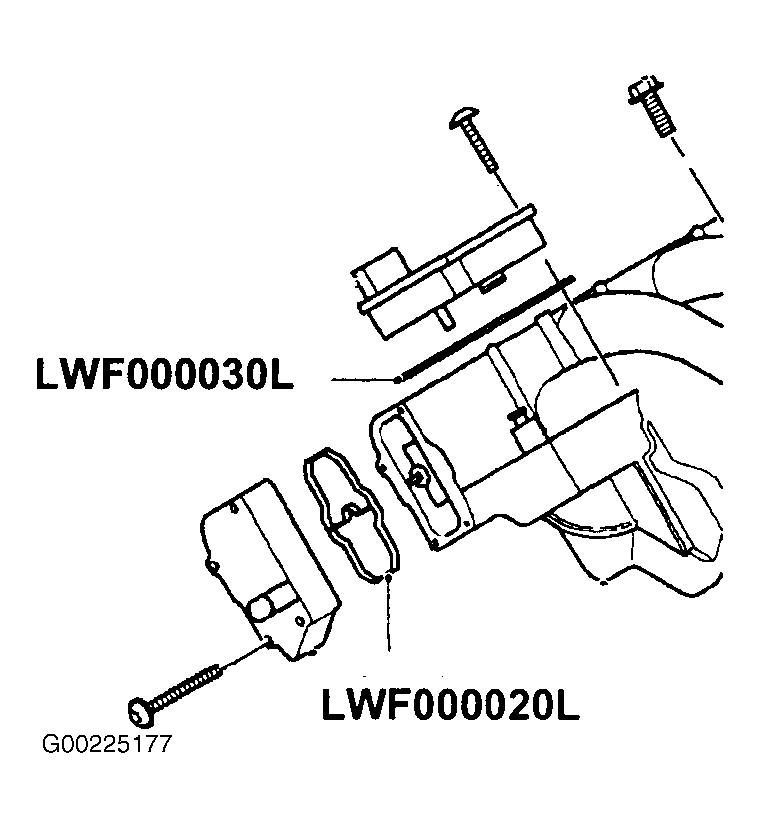

- If a VIS motor is removed for any reason, inspect the seal for damage. (Fig 1 )
- If no damage is evident, clean and install the used seal to the VIS motor.
- If the seal is damaged, install a new seal.
