Windows Control Diagram

See Fig 1.

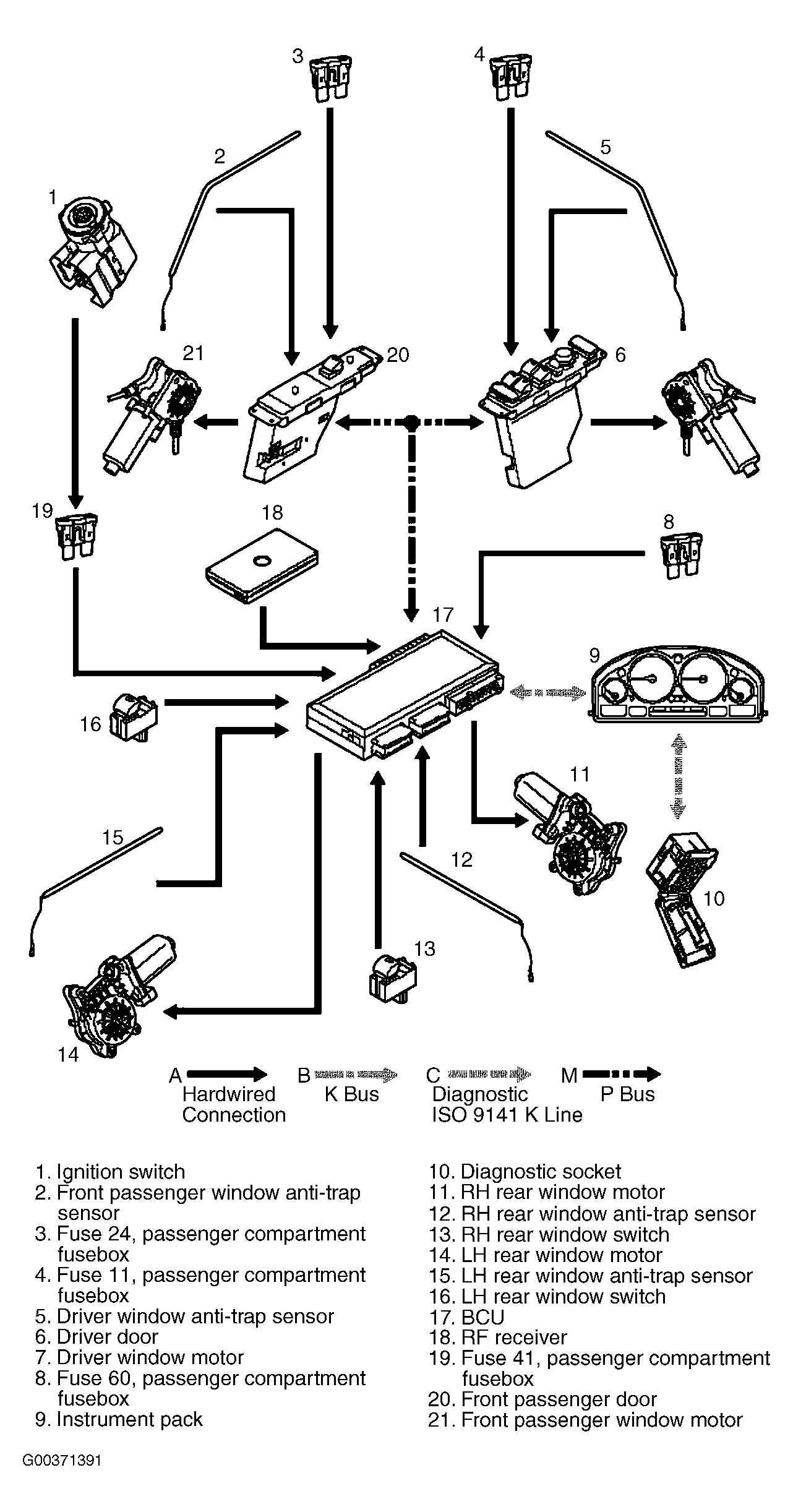

Fig 1: Identifying Windows Control Diagram
G00371391Courtesy of LAND ROVER NORTH AMERICA, INC.
