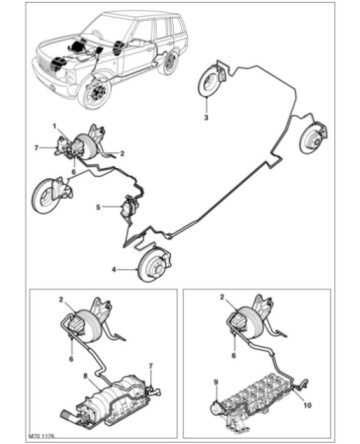

Braking System Component Location
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Brake fluid reservoir
- Servo
- Rear disc brake
- Front brake disc
- ABS control unit and hydraulic modulator
- Brake master cylinder
- Vacuum hose
- Inlet manifold (petrol)
- Vacuum pump
- Vacuum hose
