Fuse Box Relay Locations

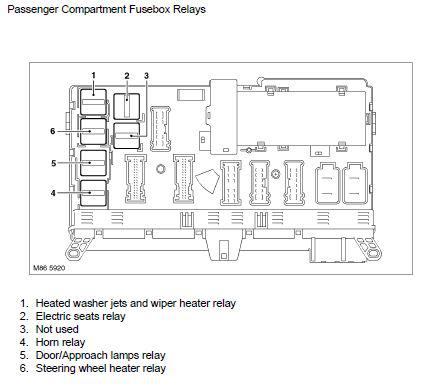

Fig 1: Passenger Compartment Fusebox Relays

Courtesy of LAND ROVER NORTH AMERICA, INC.

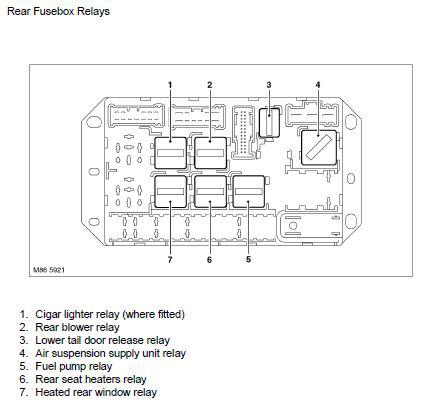

Fig 2: Rear Fusebox Relays

Courtesy of LAND ROVER NORTH AMERICA, INC.

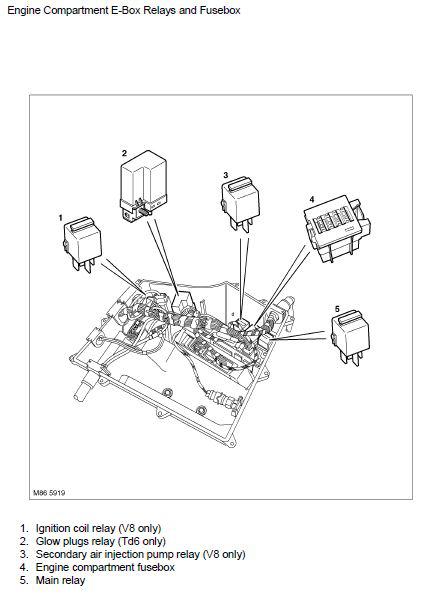

Fig 3: Engine Compartment E-Box Relays and Fusebox

Courtesy of LAND ROVER NORTH AMERICA, INC.

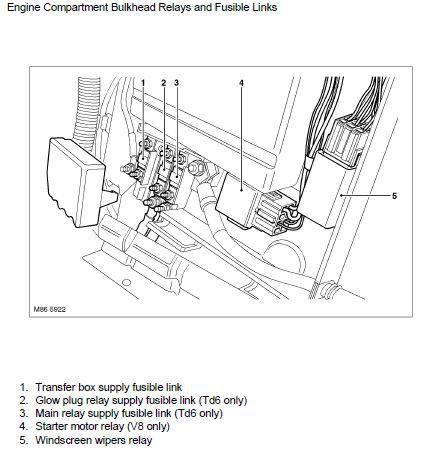

Fig 4: Engine Compartment Bulkhead Relays and Fusible Links

Courtesy of LAND ROVER NORTH AMERICA, INC.

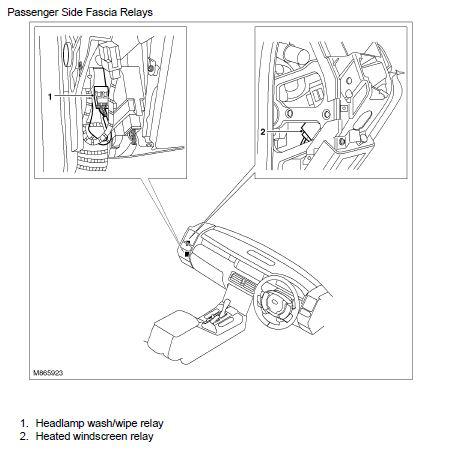

Fig 5: Passenger Side Fascia Relays

Courtesy of LAND ROVER NORTH AMERICA, INC.
