Exhaust System Component Layout

For exhaust system component layout, see Fig 1.

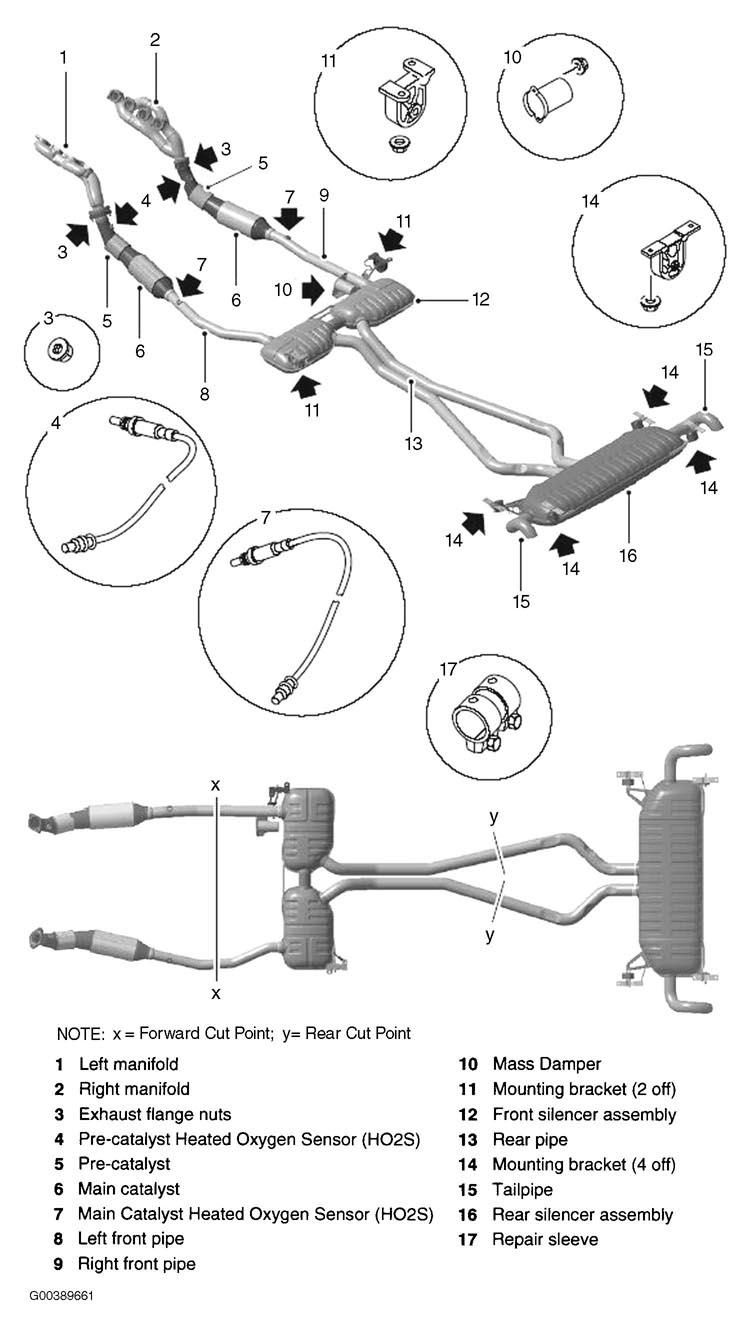

Fig 1: Identifying Exhaust System Components
G00389661Courtesy of LAND ROVER NORTH AMERICA, INC.
