Fuel System - Depressurize: Removal

1. Disconnect battery earth lead.
2. Remove engine acoustic cover. See ACOUSTIC COVER - ENGINE .
WARNING: The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.
3. Remove cap from Schrader valve on fuel rail.
4. Fit LRT-19-006 and hose to Schrader valve. See Fig 1.
WARNING: Fuel vapor is highly flammable and in confined spaces is also explosive and toxic. Always have a fire extinguisher containing foam, CO2, gas or powder close at hand when handling or draining fuel.
5. Open valve on LRT-19-006. Release fuel system pressure and allow fuel to drain into suitable container.

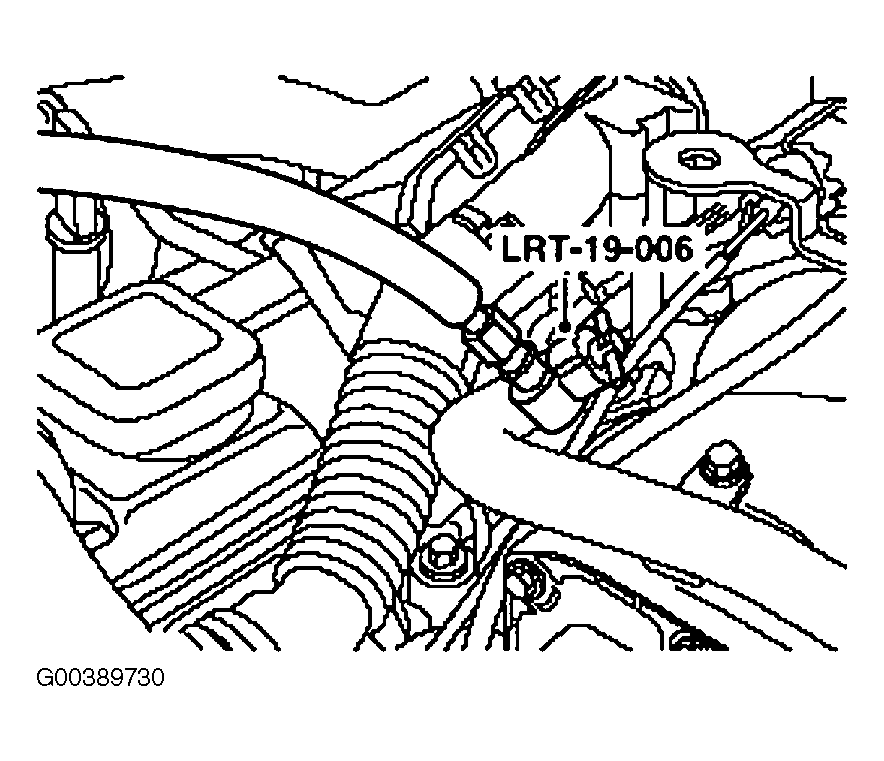

Fig 1: Installing LRT-19-006 To Fuel Rail Schrader Valve

Courtesy of LAND ROVER NORTH AMERICA, INC.
