Secondary Air Injection System Monitoring Structure

For secondary air injection system monitoring structure flow chart, see Fig 1 .

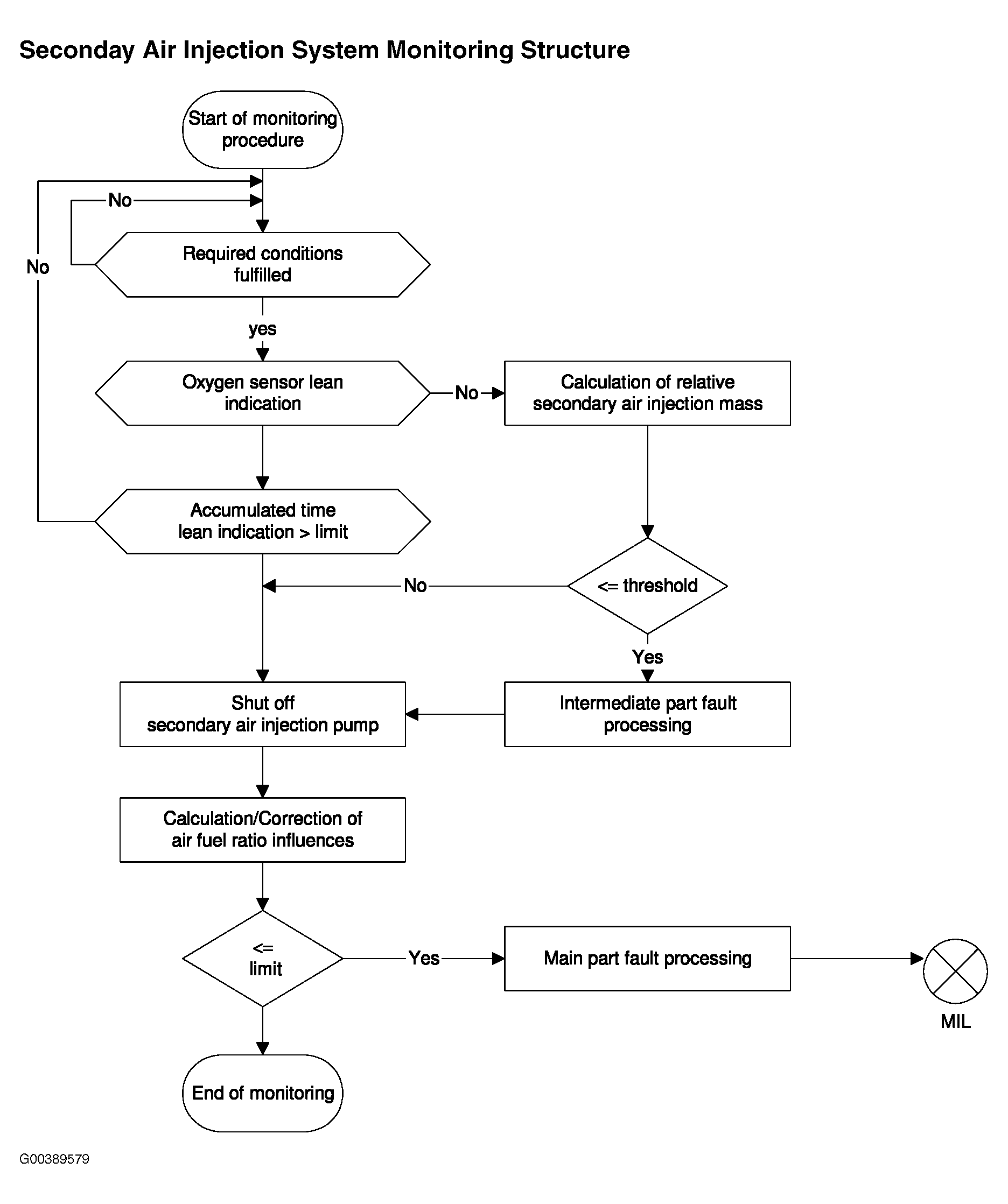

Fig 1: Secondary Air Injection System Monitoring Structure Flow Chart

Courtesy of LAND ROVER NORTH AMERICA, INC.
