Vehicle Speed Interface Description

The Vehicle Speed Interface consists of 1 digital input from the ABS Control Module. See Fig 1 .

There is one Vehicle Speed Interface diagnostic checks, a fault is detected if:

1. The enabling conditions have been satisfied and the output signal from the ABS Control Module is less than 6.2 mph.

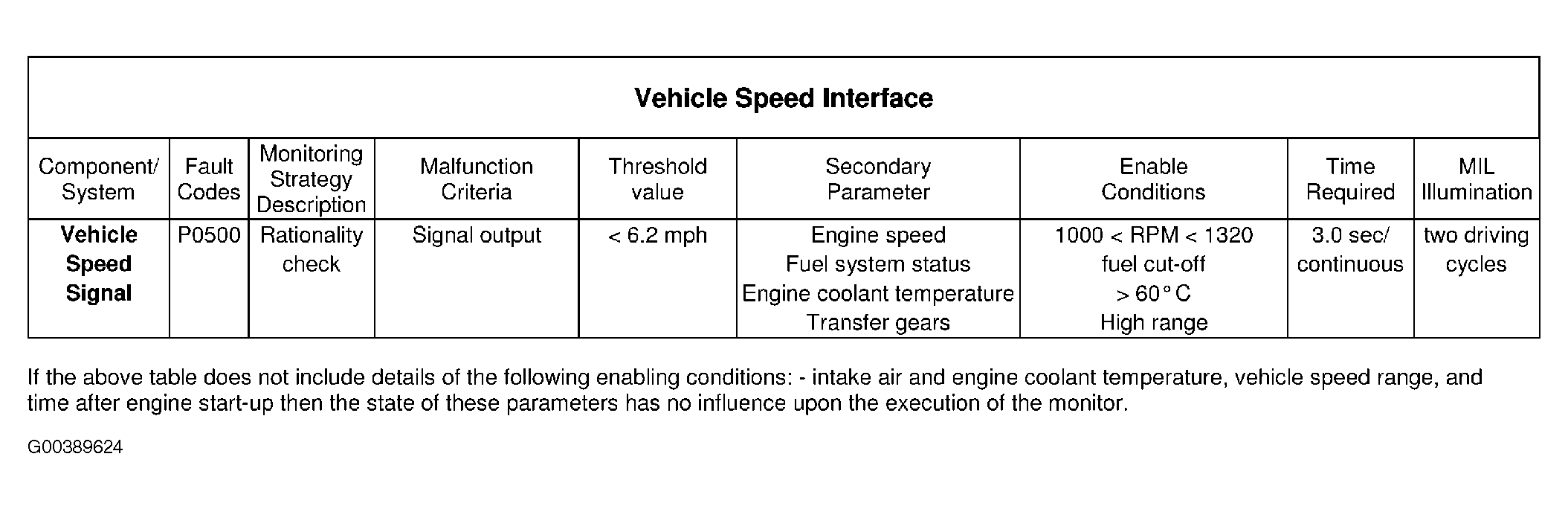

Fig 1: Vehicle Speed Interface Monitoring & Enabling Conditions

Courtesy of LAND ROVER NORTH AMERICA, INC.
