Land Rover
›
2003
›
Range Rover
›
Repair and Diagnosis
›
Steering
›
Power Steering
›
Steering System
›
Component Locations
›
Steering Control Diagrams
›
Steering Control Diagram - Column Lock
Steering Control Diagram - Column Lock
For control diagram of column lock, see

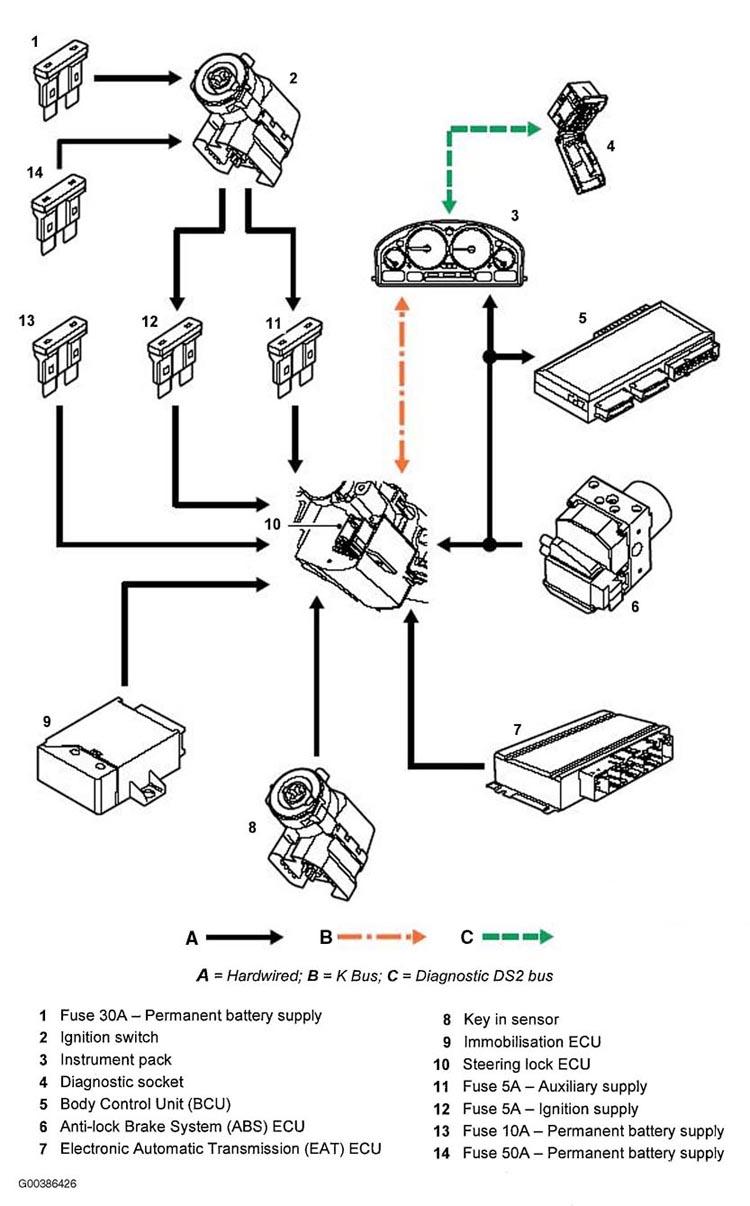

Fig 1
.
Fig 1: Steering Control Diagram - Column Lock
Courtesy of LAND ROVER NORTH AMERICA, INC.
